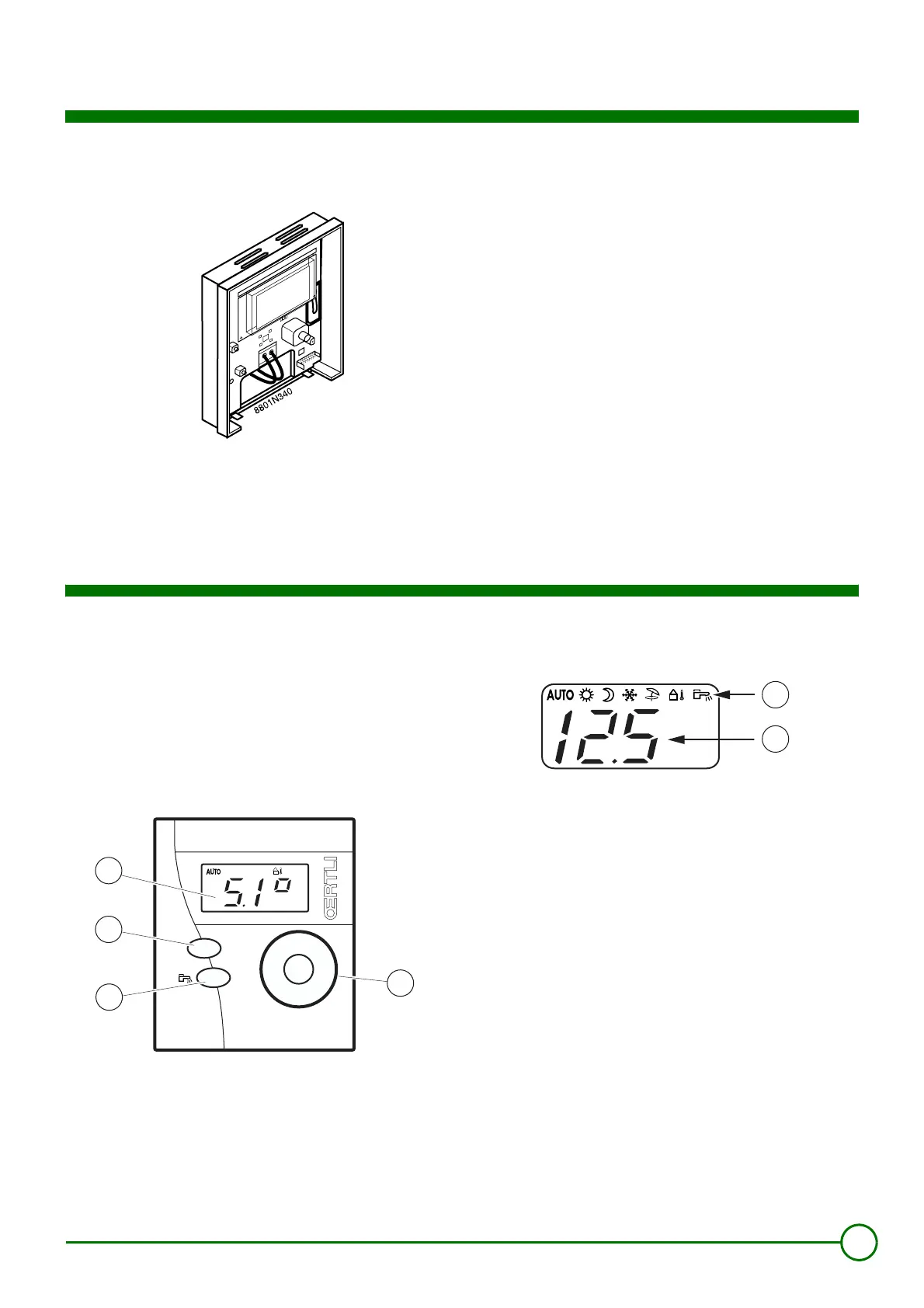

3 Electrical connection
Use wires with a cross section of between 2 x 0.35 and 2 x 1.5 mm².
Connect the 2 wires to the terminal block.
Under no circumstances must sensor cables (very low
voltage) be placed in cable ducts or channels carrying
cables supplying 230 V. Furthermore, a minimum distance
of 10 cm should be kept between cables supplying very
low voltage and cables supplying 230 V.
4 Description
Usual display :
The remote control displays the outside temperature.
Display of the room temperature and the time:
When the outside temperature is displayed, turn the rotary button
without pressing it to display the time or the room temperature for a
few seconds.
Display
Rotary button
Key MODE
DHW button
Meaning of the symbols
Symbols
Corresponding digital information
AUTO: Automatic mode
The heating operates according to the time
programme on the central control system
%
: COMFORT 7/7 mode
AUTO
%
: Forced temperature mode COMFORT UNTIL ...
(According to the OE-tronic 3® central control
system)
$
: ECO 7/7 mode
AUTO
$
: Forced temperature more ECO UNTIL ...
(According to the OE-tronic 3® central control
system)
.
: HOLIDAY mode (Antifreeze protection)
The number of days' absence is displayed
=: The display shows the outside temperature
: Domestic hot water
#
: In summer mode
MODE
8801N371
1
3
4
2
