5、Receiver operation
5.1 Receiver installation
5.1.1 Precautions
¾ Ensure that there is no radio controller with the same frequency within the range of 300m.
¾ Check whether the controlled equipment works normally.
¾ Ensure whether voltage at the installation place is consistent with the receiver voltage; and
then turn off the main power supply.
5.1.2 Installation steps

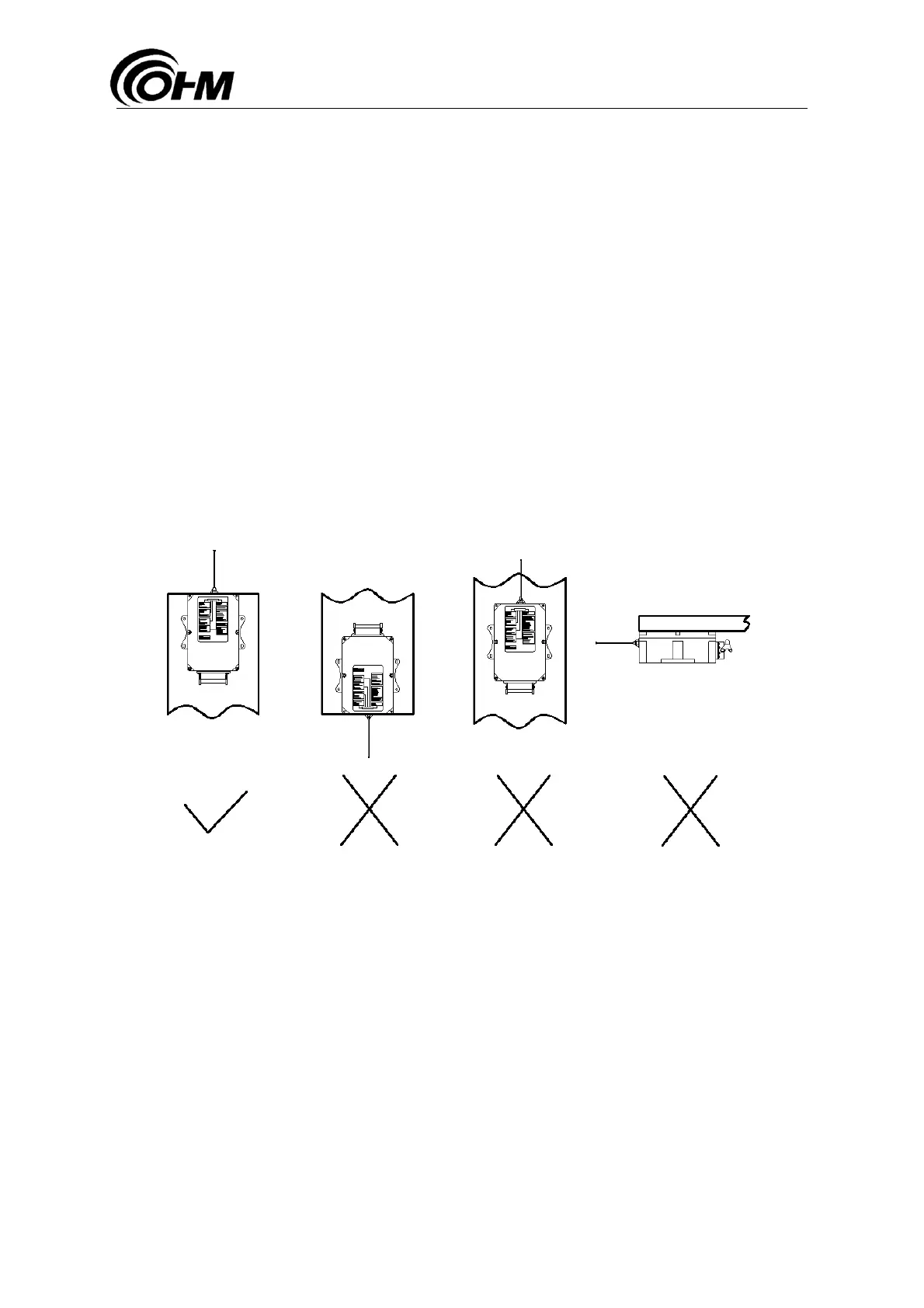

¾ The receiver should be mounted vertically with the cable connection downwards.
¾ Select a suitable installation position:
 Select a position within the range of visibility when the receiver or antenna operates on
the ground.
 Select a position far away from high-voltage lines or equipment like motors, relays, etc.
 Select a position without obstacle around to avoid blocking radio wave transmission.
¾ Drilling holes according to drawing.
¾ Install and fix the receiver and tighten 4 nuts.
¾ Connect the receiver and the equipment to be controlled.
