2.3 Introduction to receiver
2.3.1 Receiver size
¾ Small-sized receiver housing ( L x W x H ): 248mm x 206mm x 75mm
¾ Medium-sized receiver housing ( L x W x H ): 298mm x 206mm x 75mm
¾ Large-sized receiver housing ( L x W x H ): 310mm x 206mm x 103mm
¾ D-type receiver housing ( L x W x H ): 310mm x 375mm x 103mm
(excluding antenna, excluding waterproof cable lug or heavy-duty connector)

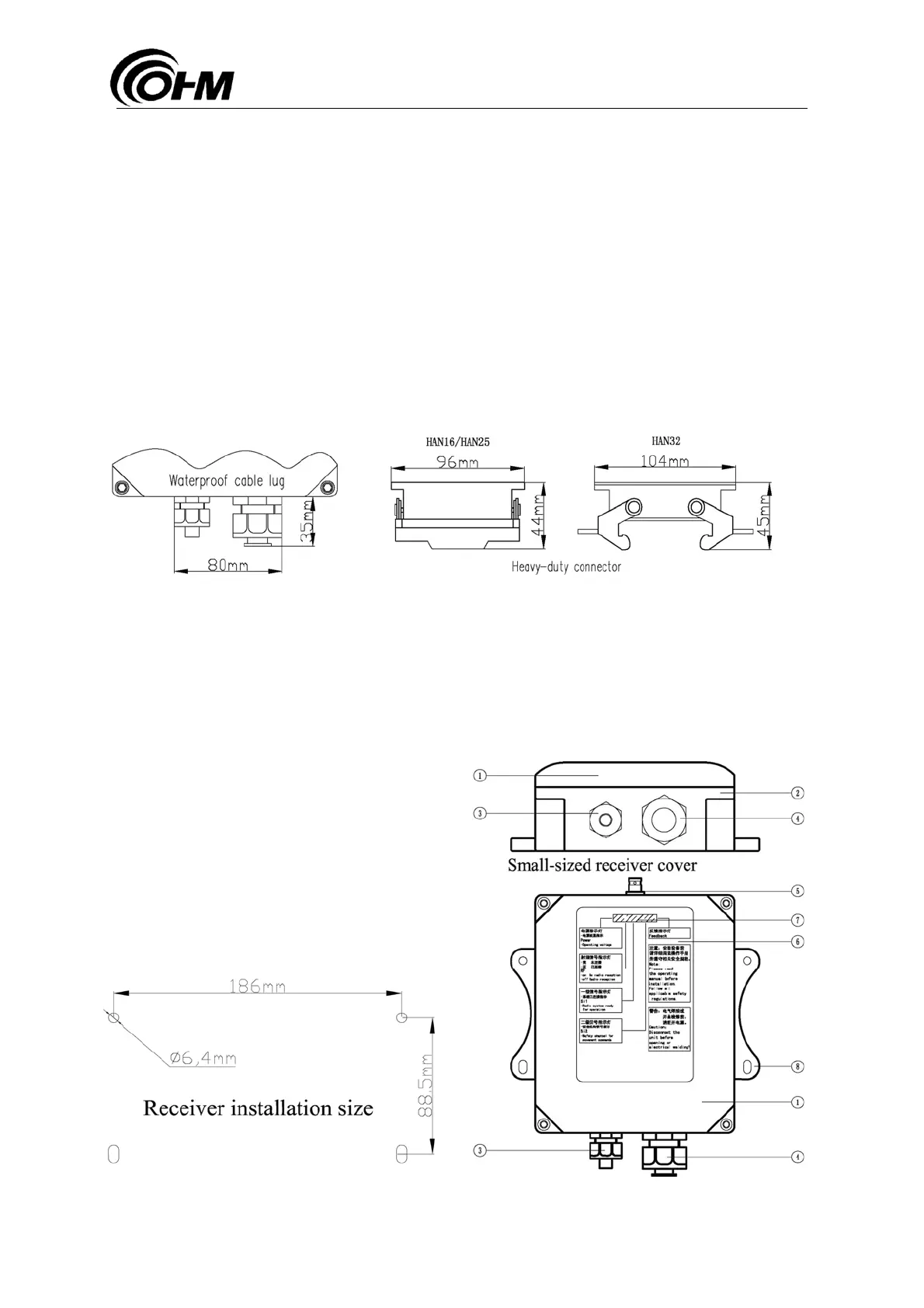

2.3.2 External view of receiver
1．Upper housing of receiver
2．Lower housing of receiver
3．Waterproof cable lug
4．Waterproof cable lug
5．Antenna cable
6．Receiver mask
7．Indicator lamp window
8．Shock pad fixing hole
9．Heavy-duty connector
