Oki B410 User Manual

Appendix C Maintenance Manual for Second Tray unit
43984801TH Rev.1
151 /
Oki Data CONFIDENTIAL

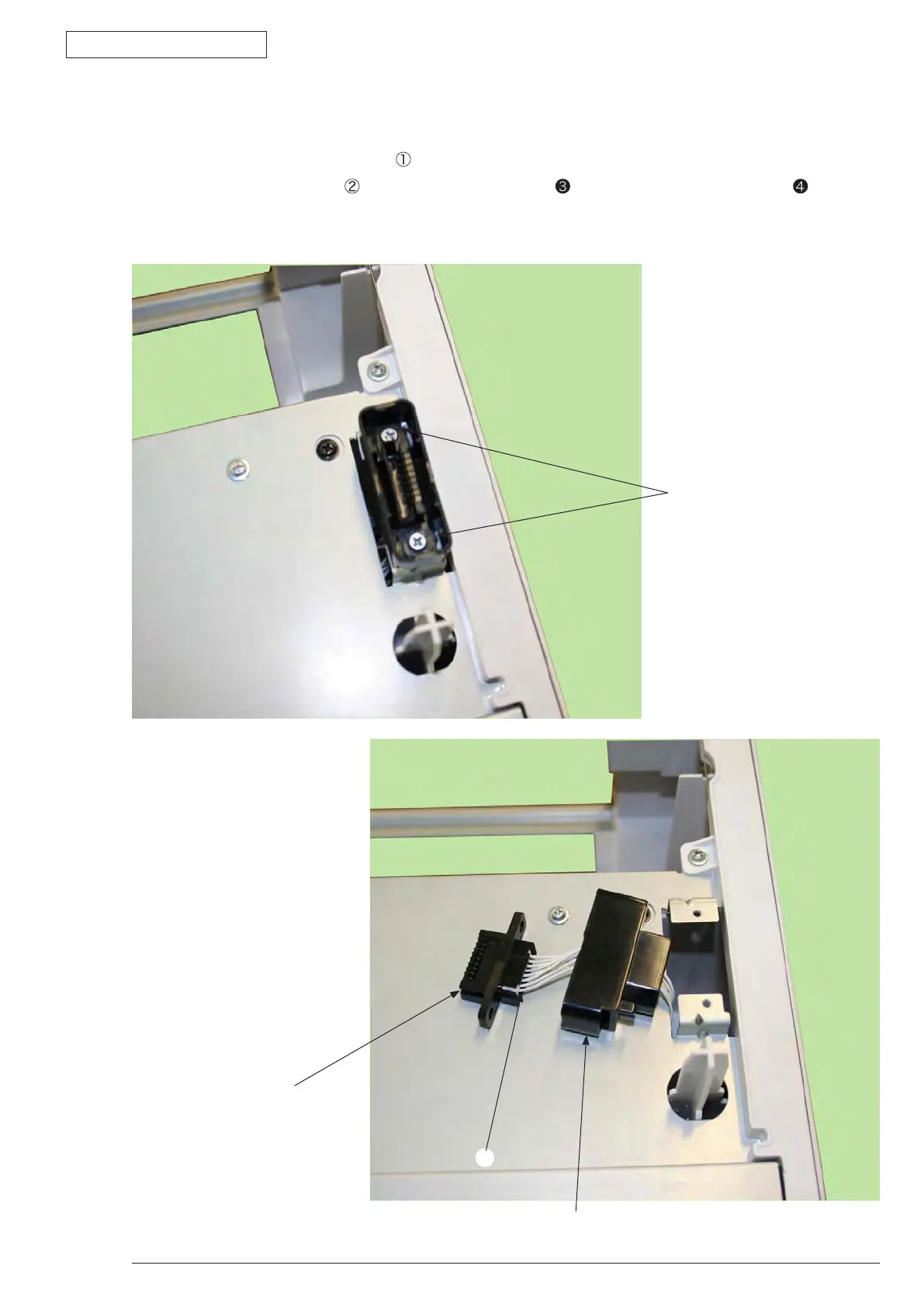

3.3.2 Guard-Connector
，
Connector
(
9715S-08Z02-G4C
)
(1) Turn off the printer and pull the AC cord. Remove the printer from the device.
(2) Remove two Screw-Shoulders
.
(3) Remove the connector
to remove Guard-Connector , Connector (9715S-08Z02-G4C) .
(4) As for reinstalling, take the opposite sequence to removal sequence.
❹
①
❸
②
