Oki B410 - Motor-DC-Main (3.3.6)

43984801TH Rev.1
43 /
Oki Data CONFIDENTIAL
3. Parts replacement

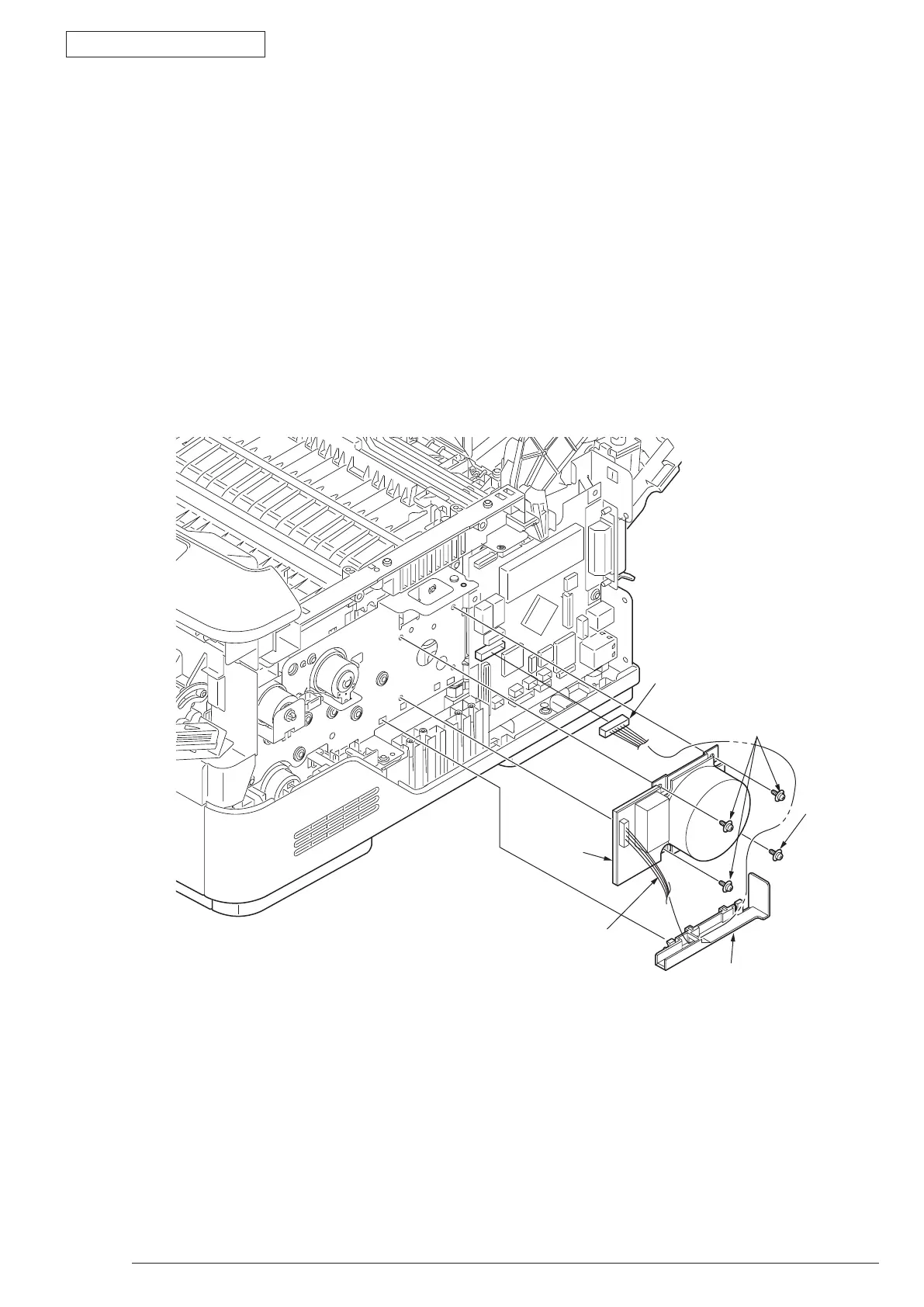

3.3.6 Motor-DC-Main
(1) Remove the Cover-Side-R. (Refer to 3.3.3)
(2) Remove the Plate-Cover-Shield-CU. (Refer to 3.3.5(2))
(3) Remove the connector
①
of Motor-DC-Main from CU board.
(4) C
ut the TY-RAP that is bundling the cable of Motor-DC-Main and the cable of Resist clutch.
(5) Remove the 3 pieces of screws (Silver)
②
and the 1 piece of screw (Black)
③
.
(6) R
emove the Motor-DC-Main
❹
. Unplug the cable from the Piece-Guide
⑤
.
(7) I
nstalling procedure is performed by the opposite order with removing. Bundle the cable of Motor-DC-
Main and the cable of Resistor clutch by TY-RAP.
❹
③
⑤
②
①
Cable
(Note on removing / installing)
1. Beware of not to touch the DC motor inattentively (Do not rotate motor).
