Oki B410 User Manual

43984801TH Rev.1
32 /
Oki Data CONFIDENTIAL
3. Parts replacement

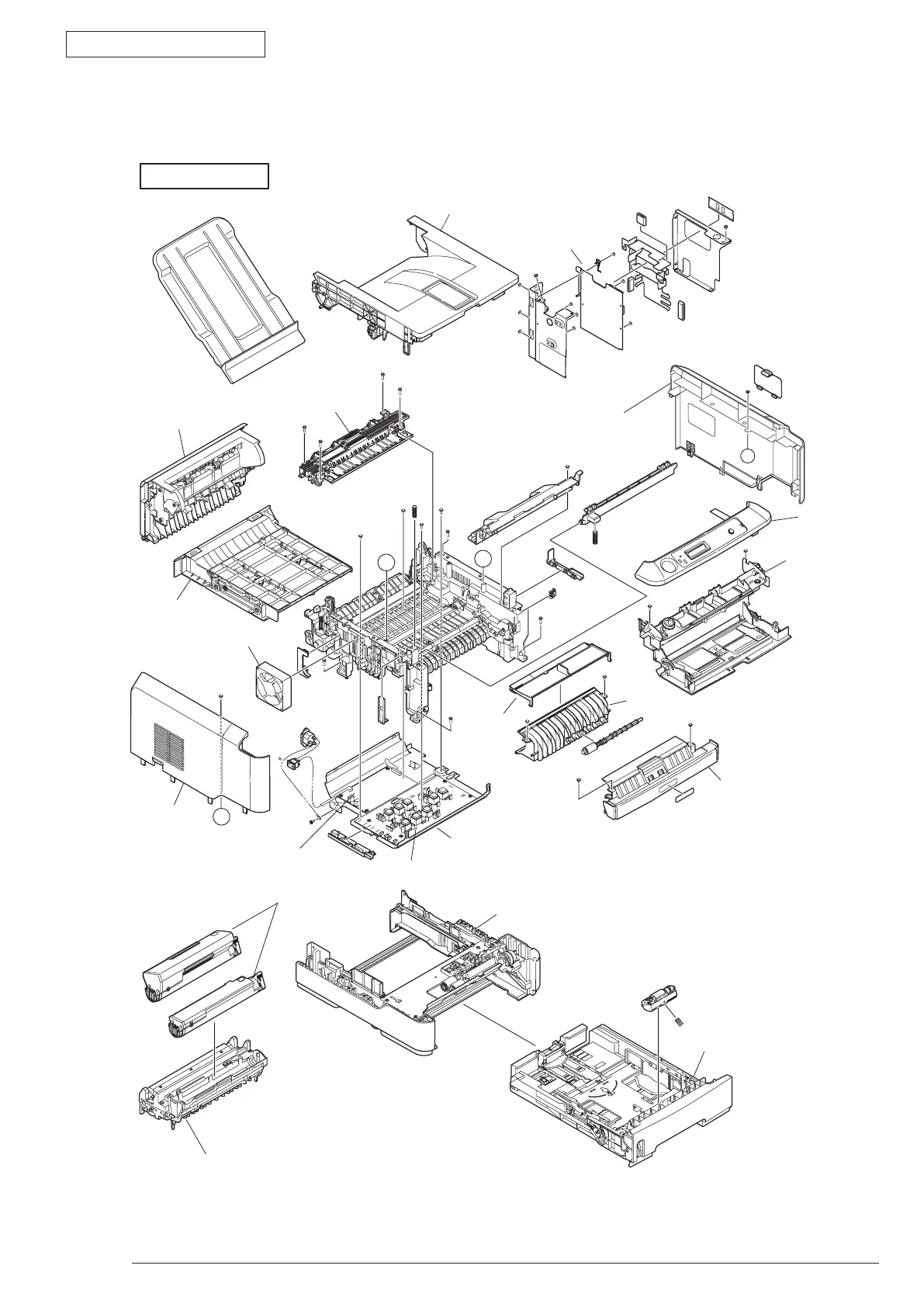

3.2 Parts layout
This section explains the main parts layout of the equipment.
Figure 3-1
A
A
A’
A’
Stacker-Cover-Assy
Cover-Side-R
Cover-Side-L
Plate-Base-PCB
Plate-Assy-Base
Motor-Fan
Duplex
Rear-Cover-Assy
Fuser-Assy
OPE Cover-Assy
Guide-Paper-Duplex
Guide-
Paper-R
Manual-Assy
Front-Guide-Assy
CU board
Toner cartridge
Low voltage
power board
High voltage
power board
Paper cassette
Image drum cartridge
B410d/B410dn

Oki B410 Specifications

General

Print Technology	LED
Input Capacity	250 sheets
Connectivity	USB 2.0
Memory	32 MB
Duplex Printing	Manual
Maximum Paper Size	A4
Operating Systems Supported	Windows, Mac OS
Power Consumption	450W (average)
Output Capacity	150 sheets
