Oki B410 User Manual

43984801TH
Rev.1
8 /
Oki Data CONFIDENTIAL
1. CONFIGURATION
A
A
A’
Paper cassette
Toner cartridge
High voltage
power board
Low voltage
power board
Image drum cartridge
A’
Stacker-Cover-Assy
Cover-Side-R
Cover-Side-L
Plate-Base-PCB
Plate-Assy-Base
Motor-Fan
Duplex
Rear-Cover-Assy
Fuser-Assy
OPE Cover-Assy
Guide-Paper-Duplex
Guide-Paper-R
Manual-Assy
Front-Guide-Assy
CU board

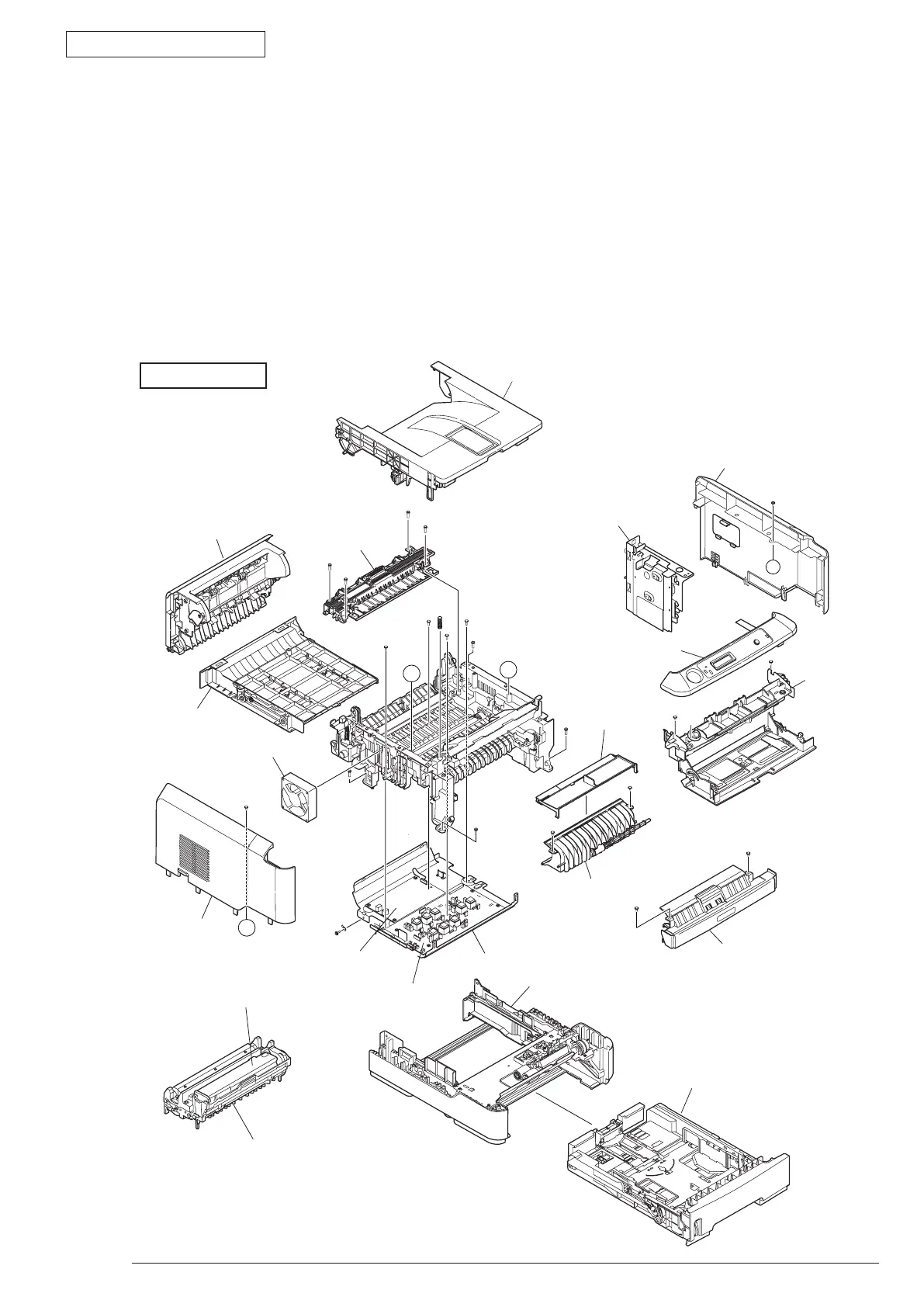

1.2 Printer Configuration
The printer main unit includes the following hardware parts.
• Electrophotographic processing part
• Paper feeding part
• Controller
• Op
erational part
• Power supply unit
Figure1-2
B410d/B410dn
Note!
•
Fuser-Assy has to be replaced by Assy unit.
• It is forbidden to disassemble Fuser-Assy or reuse the disassembled Fuser-Assy.
The configuration of printer main unit is shown as diagram 1-2~1-4

Oki B410 Specifications

General

Print Technology	LED
Input Capacity	250 sheets
Connectivity	USB 2.0
Memory	32 MB
Duplex Printing	Manual
Maximum Paper Size	A4
Operating Systems Supported	Windows, Mac OS
Power Consumption	450W (average)
Output Capacity	150 sheets
