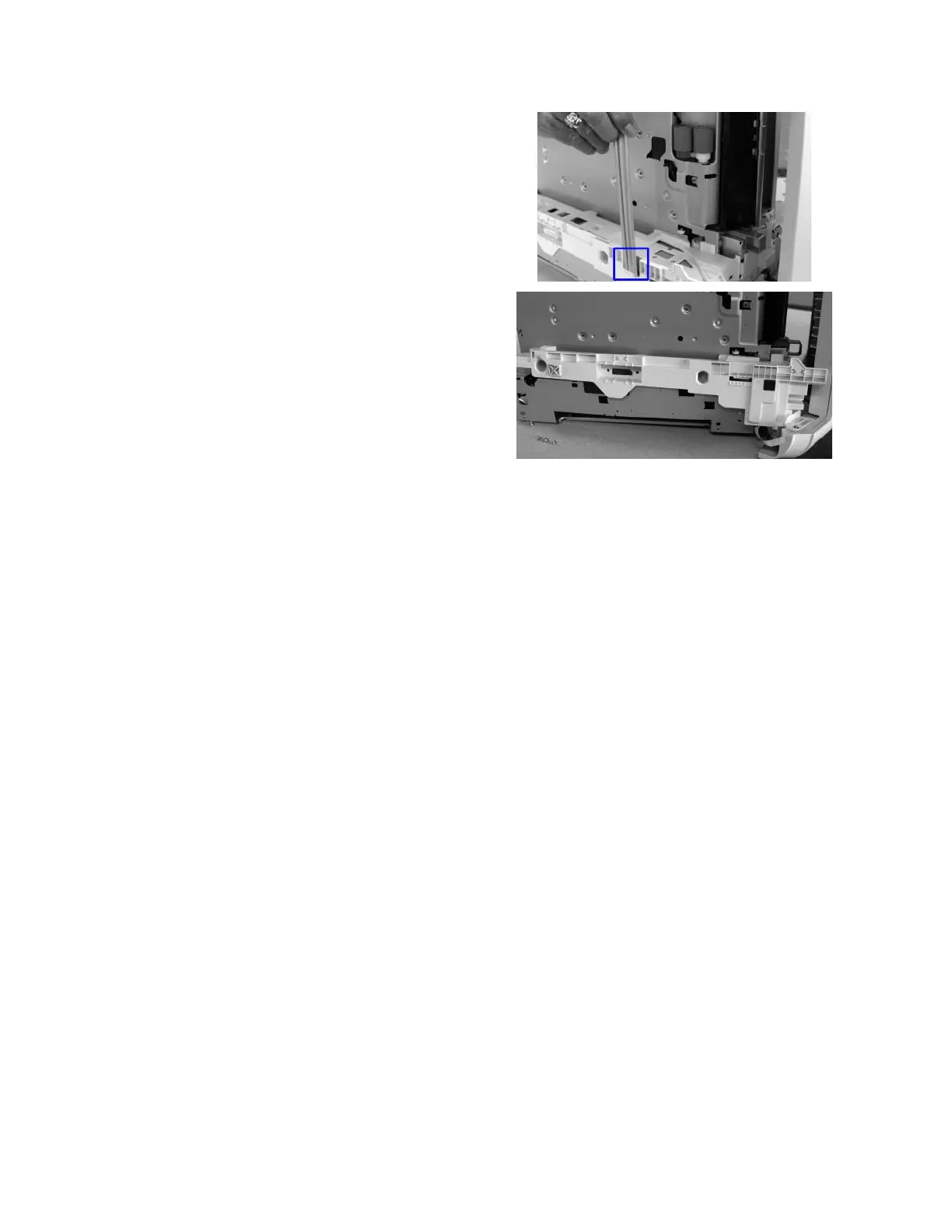

29
Remove the bottom frame bracket from the
right side cassette guide.
30
Remove the right side cassette guide.
31
Reassemble the printer by following the disassembly guide in reverse.
CAUTION: Rethread the cables in Steps 16, 17, 20 & 24 as they were originally threaded.
