7. TROUBLESHOOTING
Lock lever
(blue)
Lock lever
(blue)

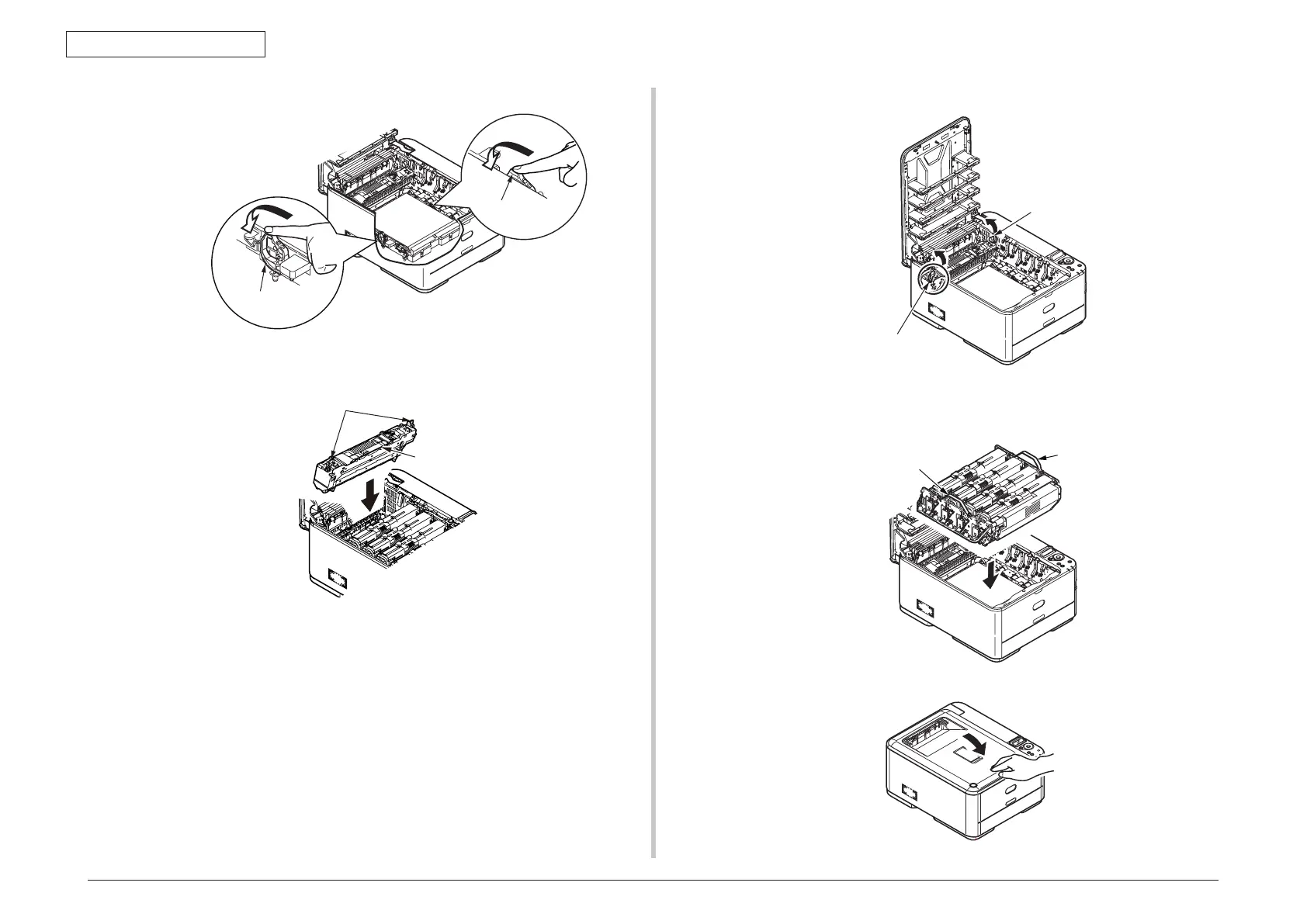

(8) Turn the lock levers inwards to lock the belt unit.
(9) Put the fuser unit back into position.
(10) Turn the lock levers inwards to lock the fuser unit.
(11) Install the image drum unit in the printer so as to situate the K toner cartridge
toward the front of the printer.
(12) Close the top cover.
Handle (blue)
Handle (blue)
Fuser unit lock levers (blue)
Handle
Fuser unit lock lever
(blue)
Fuser unit lock lever
(blue)
