4.REPLACEMENT OF PARTS

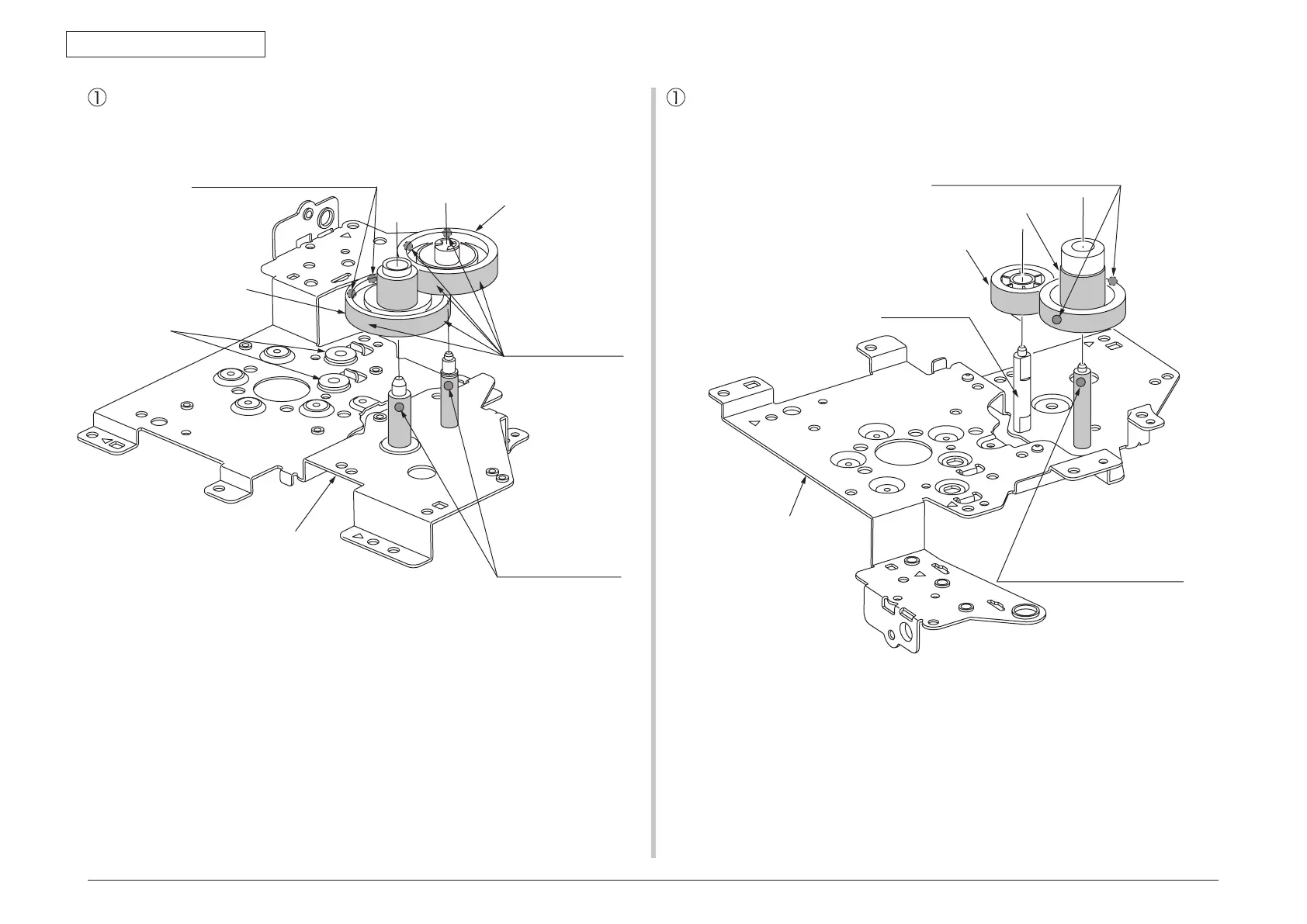

-1 44452301PA Side-R Assy. -2 44452301PA Side-R Assy.
Gear-Idle-Belt
Gear-Reduct-Belt
Bush-FU
Plate-BF-Caulking
EM-30LP Class Bx4
Apply a normal amount of
MOLYKOTE (EM-30LP)
to the whole circle of
4places
EM-30LP Class Bx4
Apply a normal amount of
MOLYKOTE (EM-30LP)
to the whole circle of 4places
EM-30LP Class C
Apply a normal amount of
MOLYKOTE (EM-30LP)
to the whole circle of
hatched areas.
(Shaft end surface side).
Gear-Reduct-Liftup-A
Gear-Liftup-D
Plate-BF-Caulking
EM-30LP Class Bx2
Apply a normal amount of
MOLYKOTE (EM-30LP)
to the whole circle of 2 places
EM-30LP Class C
Apply a normal amount of
MOLYKOTE (EM-30LP)
to the whole circle of hatched
areas. (Shaft end surface
side).
Grease prohibition
