Replacing consumable items > 70

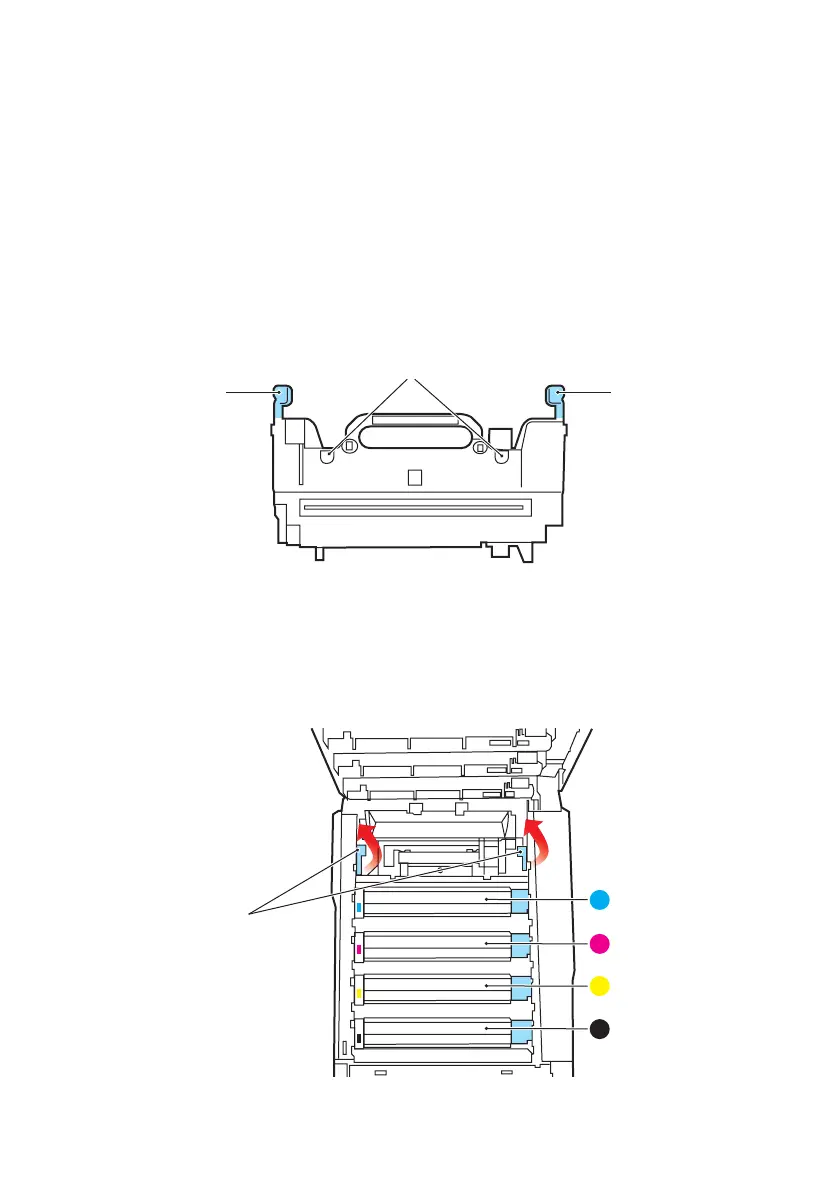

4. Holding the fuser by its handle (1), lift the fuser straight
up and out of the printer. If the fuser is still warm, place it
on a flat surface which will not be damaged by heat.
5. Remove the new fuser from its packaging and remove the
transit material.
6. Holding the new fuser by its handle, make sure that it is
the correct way round. The retaining levers (2) should be
fully upright, and the two locating lugs (3) should be
towards you.
7. Lower the fuser into the printer, locating the two lugs (3)
into their slots in the metal partition which separates the
fuser area from the image drums.
8. Push the two retaining levers (2) towards the rear of the
printer to lock the fuser in place.
3
22
2
C
M
Y
K
