Clearing paper jams > 84
2. Press the cover release and open the printer’s top cover

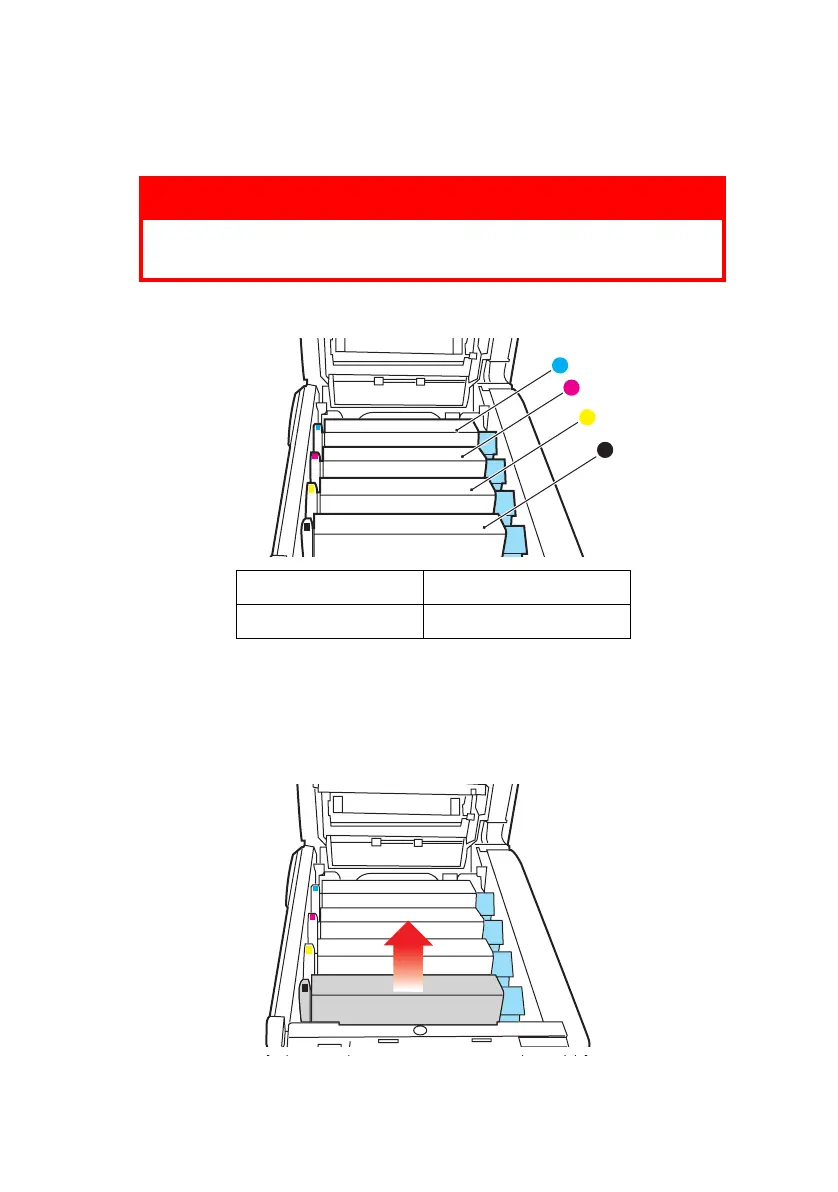

fully.
3. Note the positions of the four cartridges.
It will be necessary to remove the four image drums to gain
access to the paper path.
4. Holding it by its top centre, lift the cyan image drum,
complete with its toner cartridge, up and out of the
printer.
WARNING!
If the printer has been powered on, the fuser will be
hot. This area is clearly labelled. Do not touch.
1
2
3
4
1. Cyan cartridge 2. Magenta cartridge
3. Yellow cartridge 4. Black cartridge
