Clearing paper jams > 87
> To remove a sheet just entering the fuser (3), separate
the trailing edge of the sheet from the belt, push the
fuser pressure release lever (4) towards the front and
down to release the fuser’s grip on the sheet, and
withdraw the sheet through the drum cavity area.
Then allow the pressure release lever to rise again.

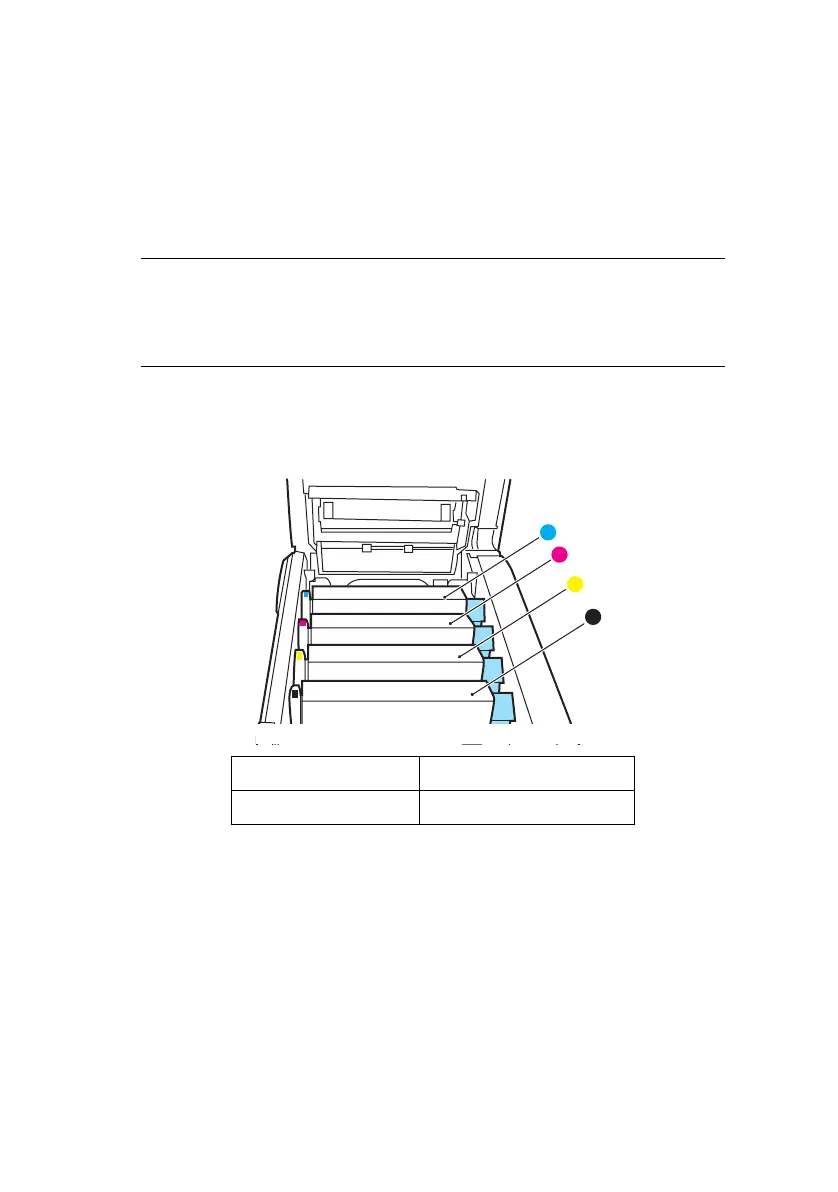

8. Starting with the cyan image drum unit nearest the fuser,
replace the four image drums into the drum cavity,
making sure to locate them in the correct order.
NOTE
If the sheet is well advanced into the fuser (only a short
length is still visible), do not attempt to pull it back. Follow the
next step to remove it from the rear of the printer.
1
2
3
4
1. Cyan cartridge 2. Magenta cartridge
3. Yellow cartridge 4. Black cartridge
