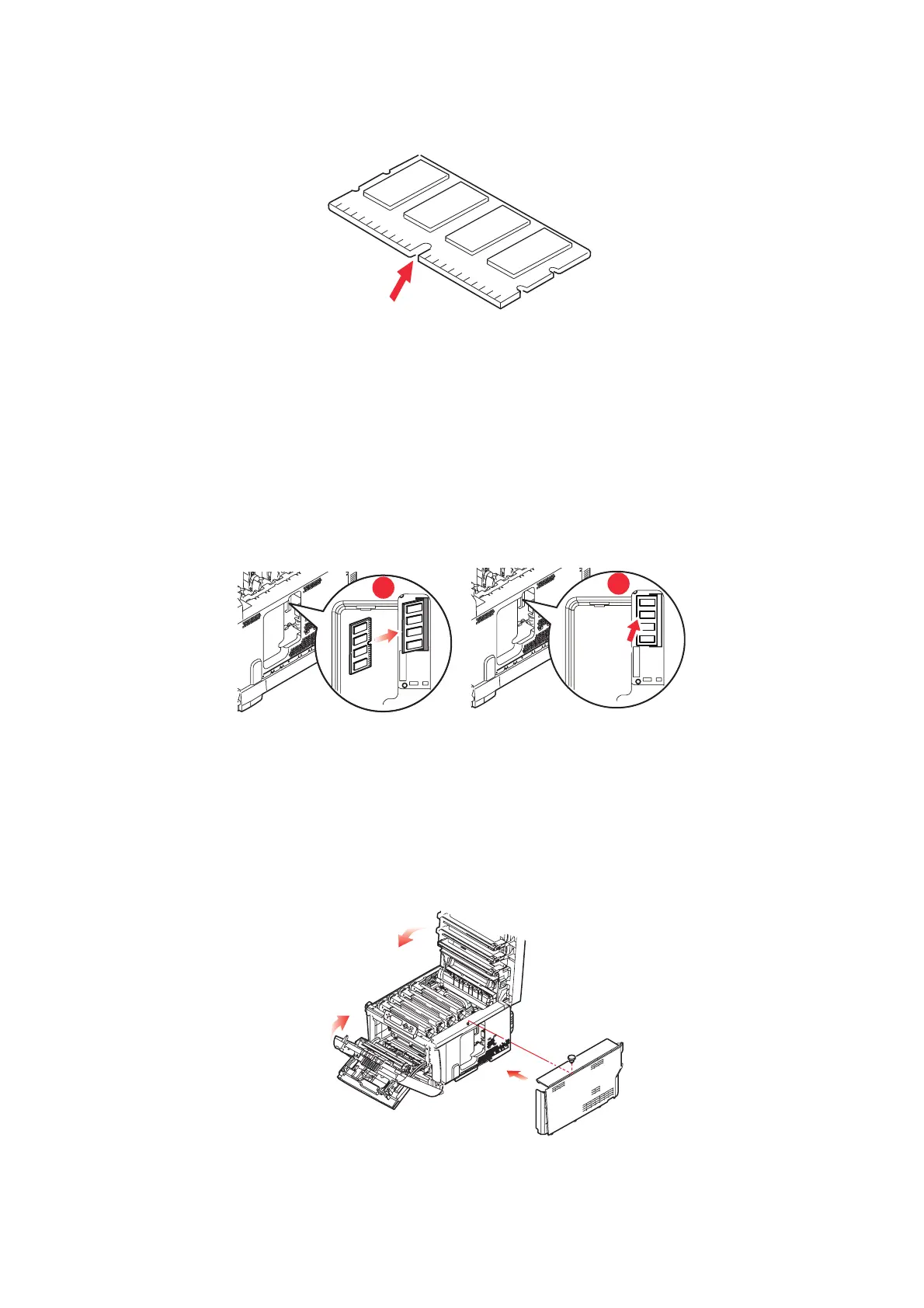

7. Notice that the memory board has a small cutout in the edge connector, which is
closer to one end than the other.
8. Identify the RAM expansion slot in the printer.
9. If the RAM expansion slot already contains a memory upgrade board, that board will
have to be removed before you can install the new one. To remove it, proceed as
follows, otherwise skip to step 10.
(a) Grip the board firmly by its short edges and pull it out of the slot.
(b) Place the removed memory board in the antistatic bag which originally
contained the new memory board.
10. Hold the new memory board by its short edges, so that the edge connector faces in
towards the RAM expansion slot, and the small cutout is closer to the rear of the
printer.
11. Gently push the board into the RAM expansion slot until it latches in and will not go
any further.
12. Locate the three retaining clips at the bottom of the side cover into their rectangular
holes near the bottom of the printer.
13. Close the top of the side cover up to the printer and refit the securing screw
removed in step 4.
14. Close the front cover, and close the top cover, pressing down firmly at each side to
latch it closed.
