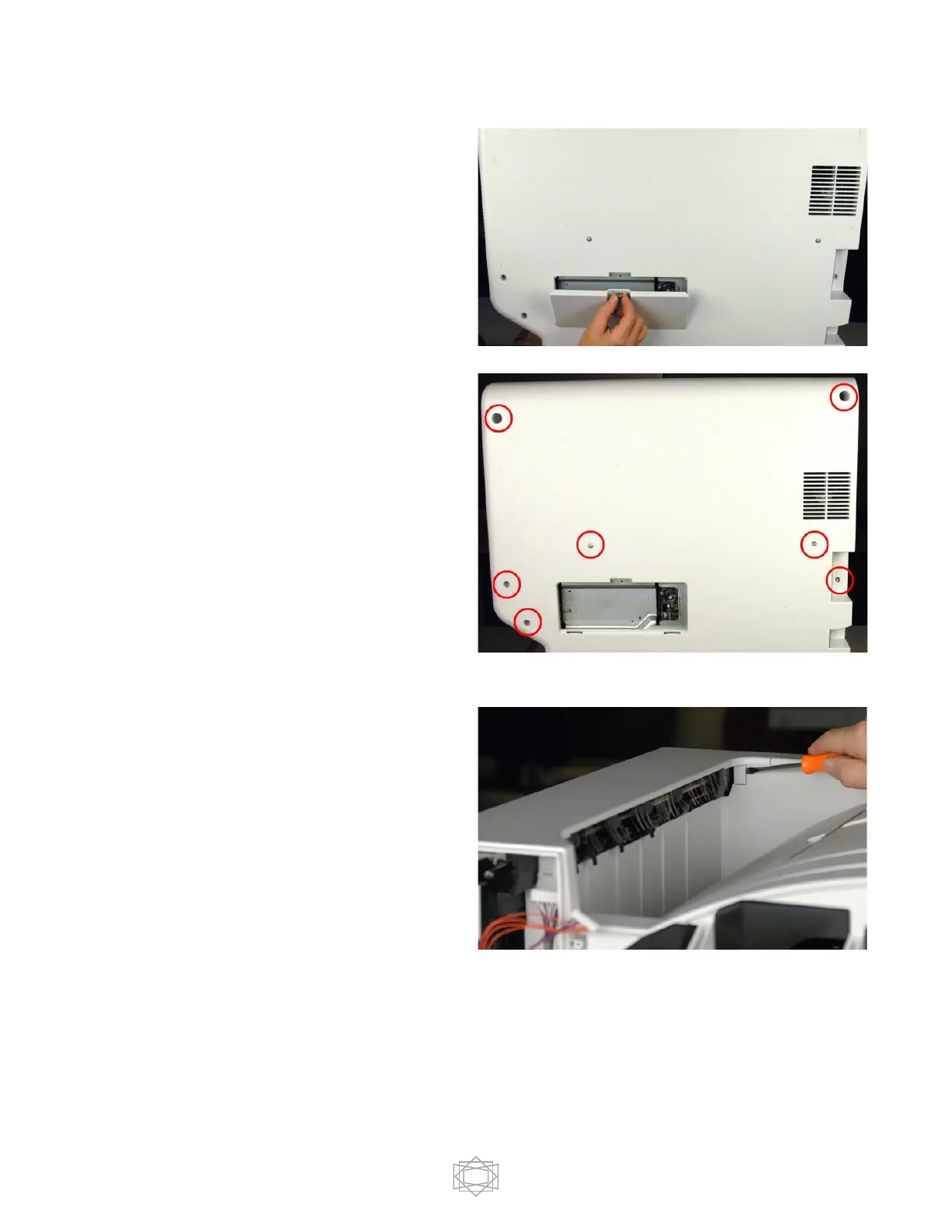

On the rear cover, remove the HDD access
cover w/1 captive screw.
Remove 7 sliver screws from the rear
cover. There is also a tab on the left side of
the printer, near the power switch, that
you must depress to remove the cover.
Release that tab and gently lift the cover
over the lift handle extension on the side
and slide off to remove.
NOTE: Some units may have 1
additional screw in the middle of the back
cover.
There are 2 tabs holding the offset cover in
place, 1 in the rear of the printer and one
at the front of the printer – shown on next
page.
