Oki C911 Disassembly & Reassembly Procedures

14
34

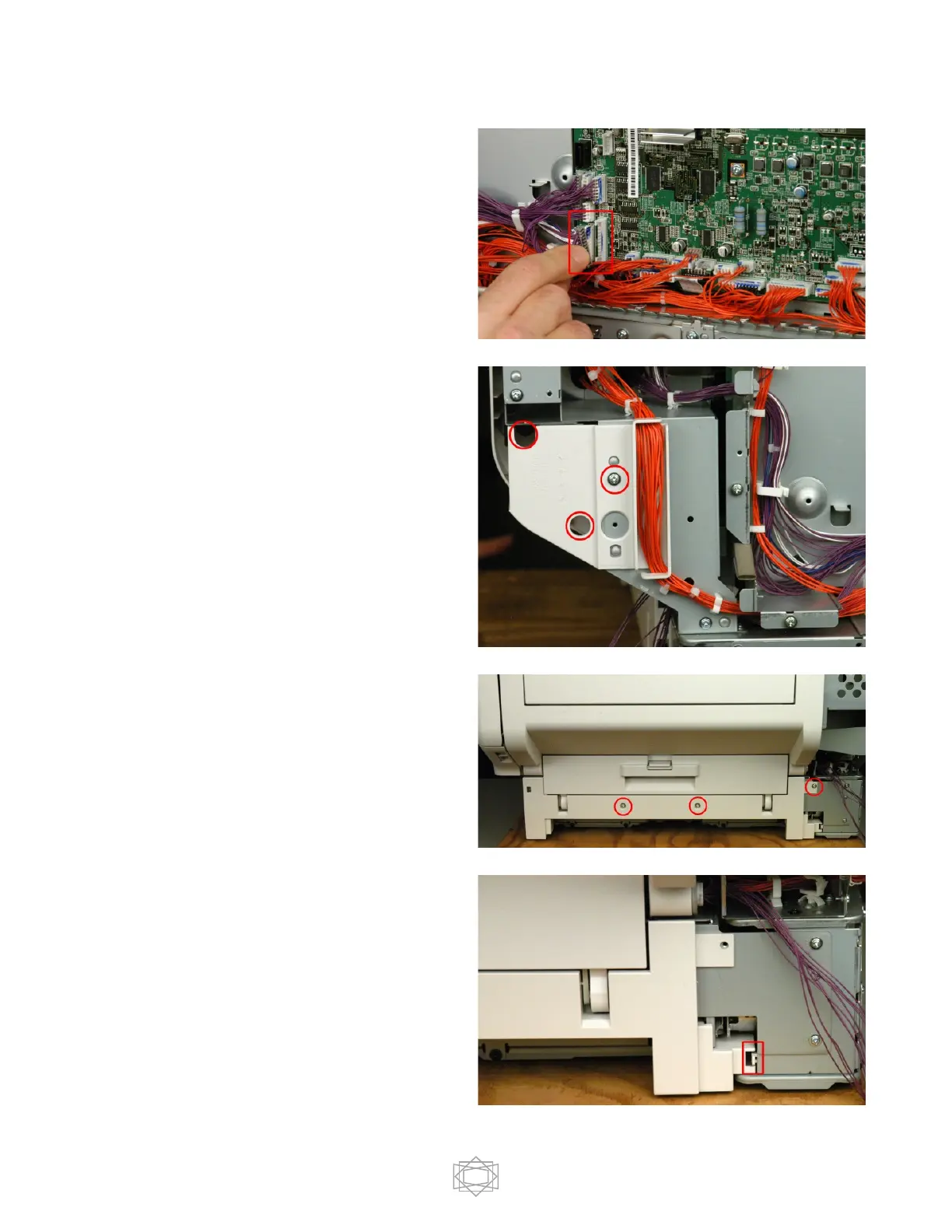

On the engine board (FIY2) locate the
“MPTIF” connector (12 wire connector with
purple cables) and gently unplug it.
Unthread this cable / connector from the
wire bundles and gently pull it towards the
MPT assembly.
35
Remove the lift handle from the rear by
removing 3 screws and unthreading the
wire bundles from the handle assembly.
36
Remove 3 screws from the right side lower
access cover.
37
Unclip the right side of the lower access
cover by squeezing the clip.
