There are 8 ribbon cables to
disconnect.
NOTE: The LED Print Head cables have
locking tabs that must be unlocked prior to
unplugging / plugging in! See the photos
and text below

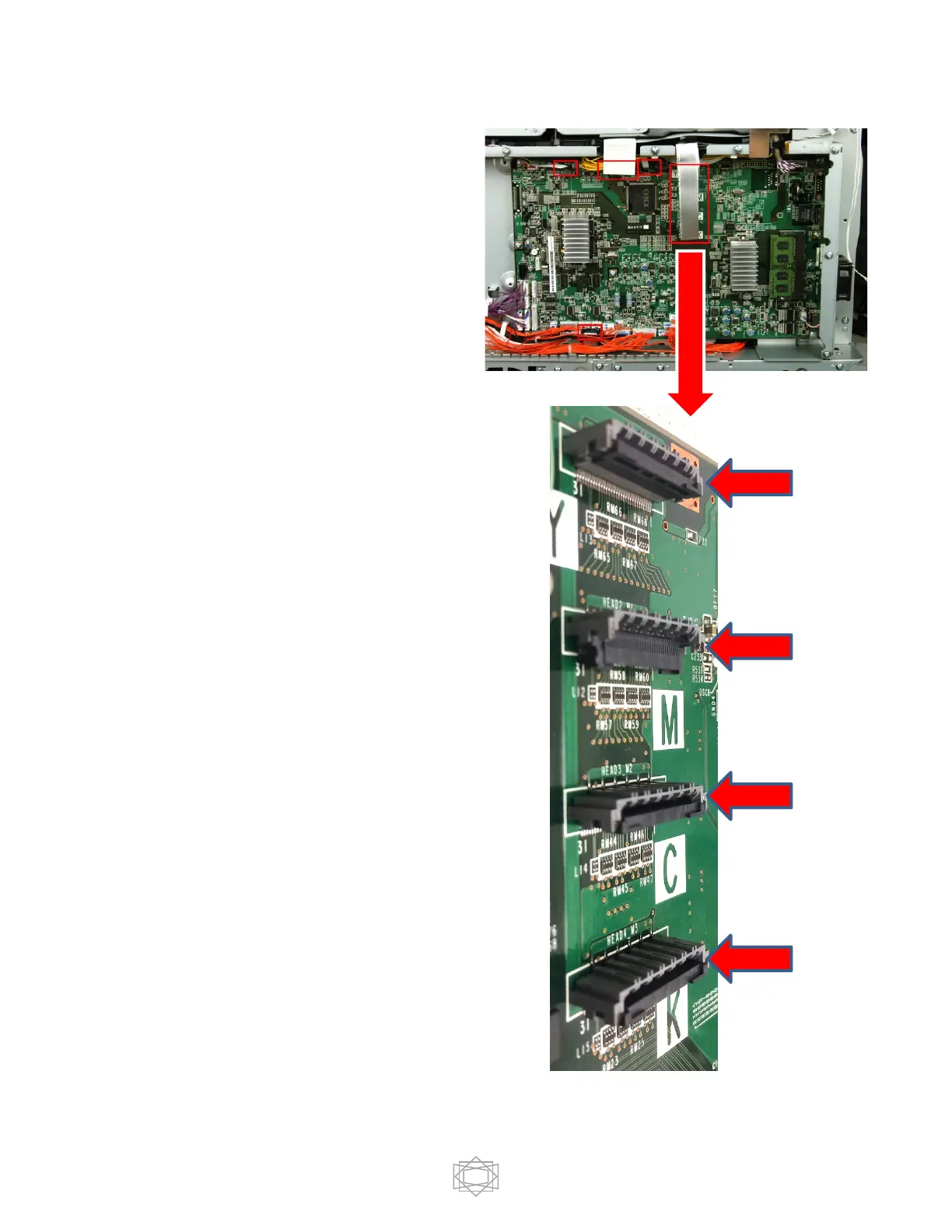

The LED Print Head cable
connectors look like this when the
cables are removed. Cables are
inserted with the locks in the unlocked
position and then the “tab” is gently
swung down to lock the cable in
position. These “tabs” are easily
dislodged so treat them gently!
Unlocked
Position
Locked
Position
Unlocked
Position
Unlocked
Position
To Next Page
