6
3. Remove the DIMM from its shipping package.

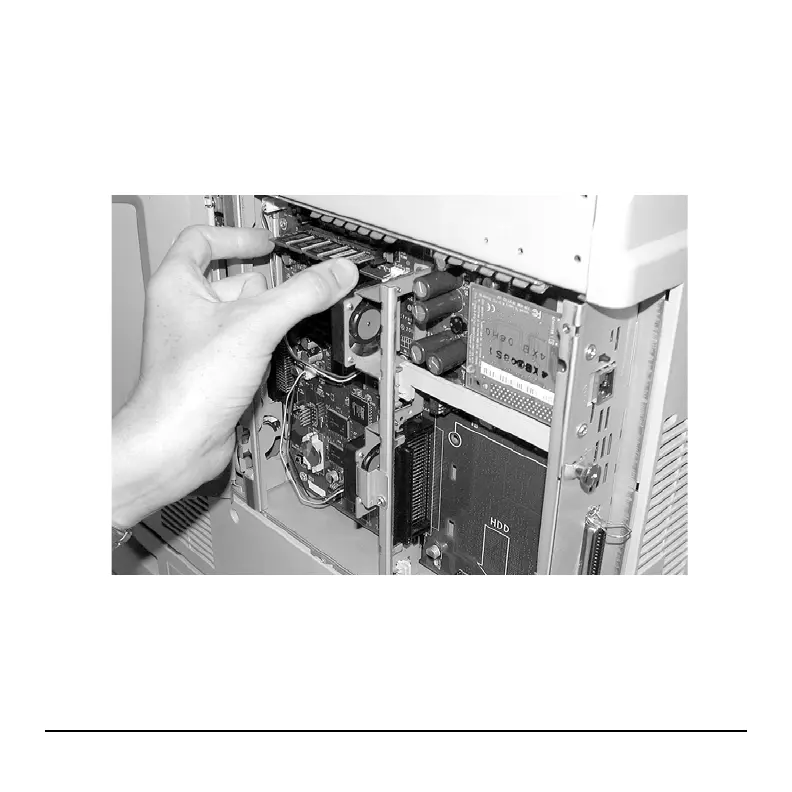

4. Align the DIMM with the narrow strip (1) on its metallic contact
edge toward the front of the control board, then carefully insert
the DIMM in the socket. Press down firmly, until you feel the
board engage the connector, then raise the white tabs to lock
the DIMM in place.
5. Repeat steps 2 through 4 for each DIMM being installed.
