Maintenance > 117

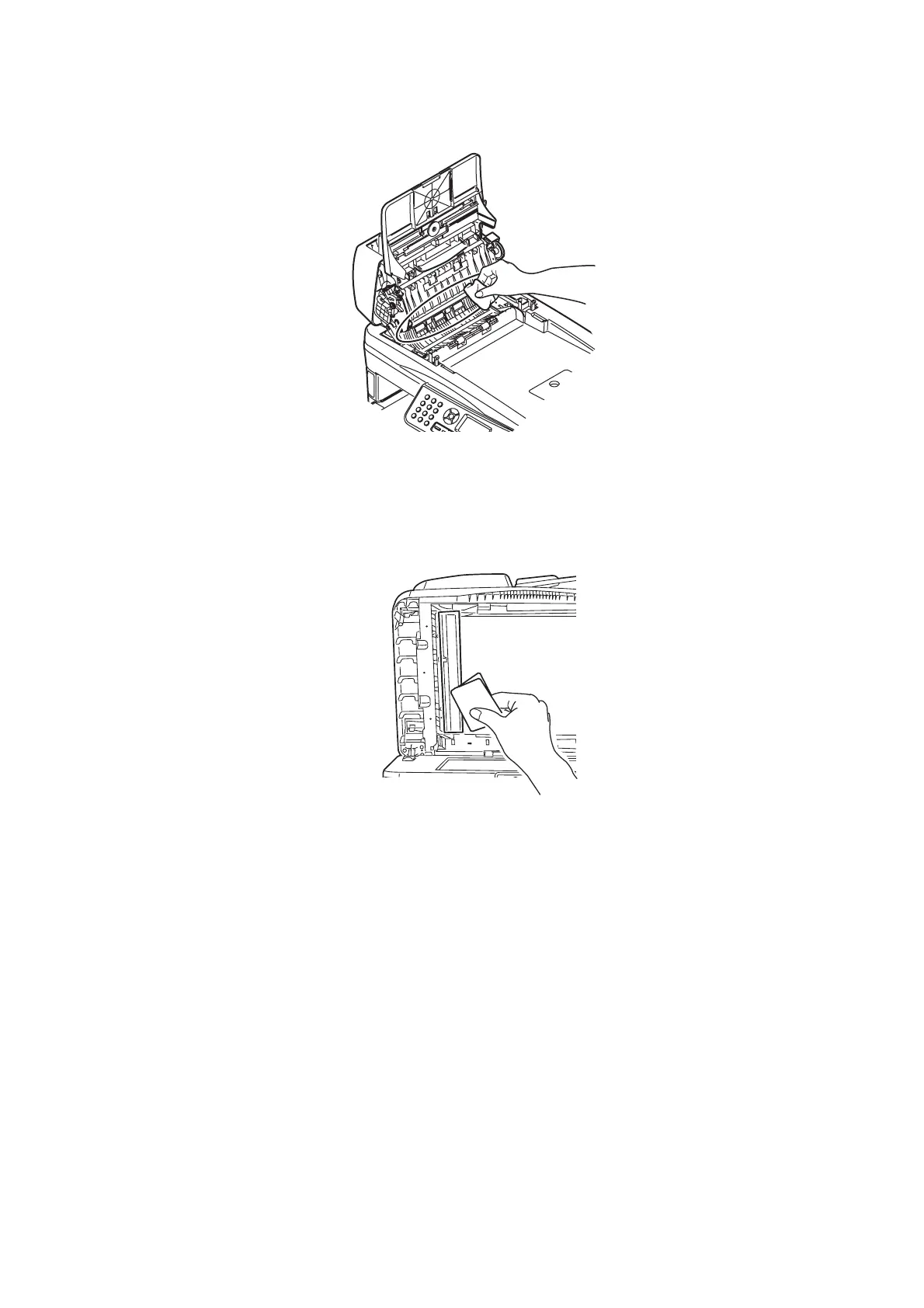

4. Moisten a soft clean lint free cloth and remove any marks by wiping the cloth in the
direction of the arrow, as shown.
5. Return the feeder mechanism to its original position.
6. Close the ADF top cover.
...
THE
UNDERSIDE
OF
THE
ADF
1. Open the document cover.
2. Moisten a soft, clean, lint free cloth and remove any marks as shown.
3. Close the document cover.
...
THE
DOCUMENT
GLASS
The document glass needs to be cleaned occasionally to ensure optimum image quality and
performance.
Clean the glass as follows.
