3.1.2 Transport drive system - General description
The Finisher selects an appropriate exiting mode among the simple stack (straight-through paper exit)
mode, offset mode and staple stack mode in accordance with commands from the equipment, and then
exits the finished paper onto a tray.

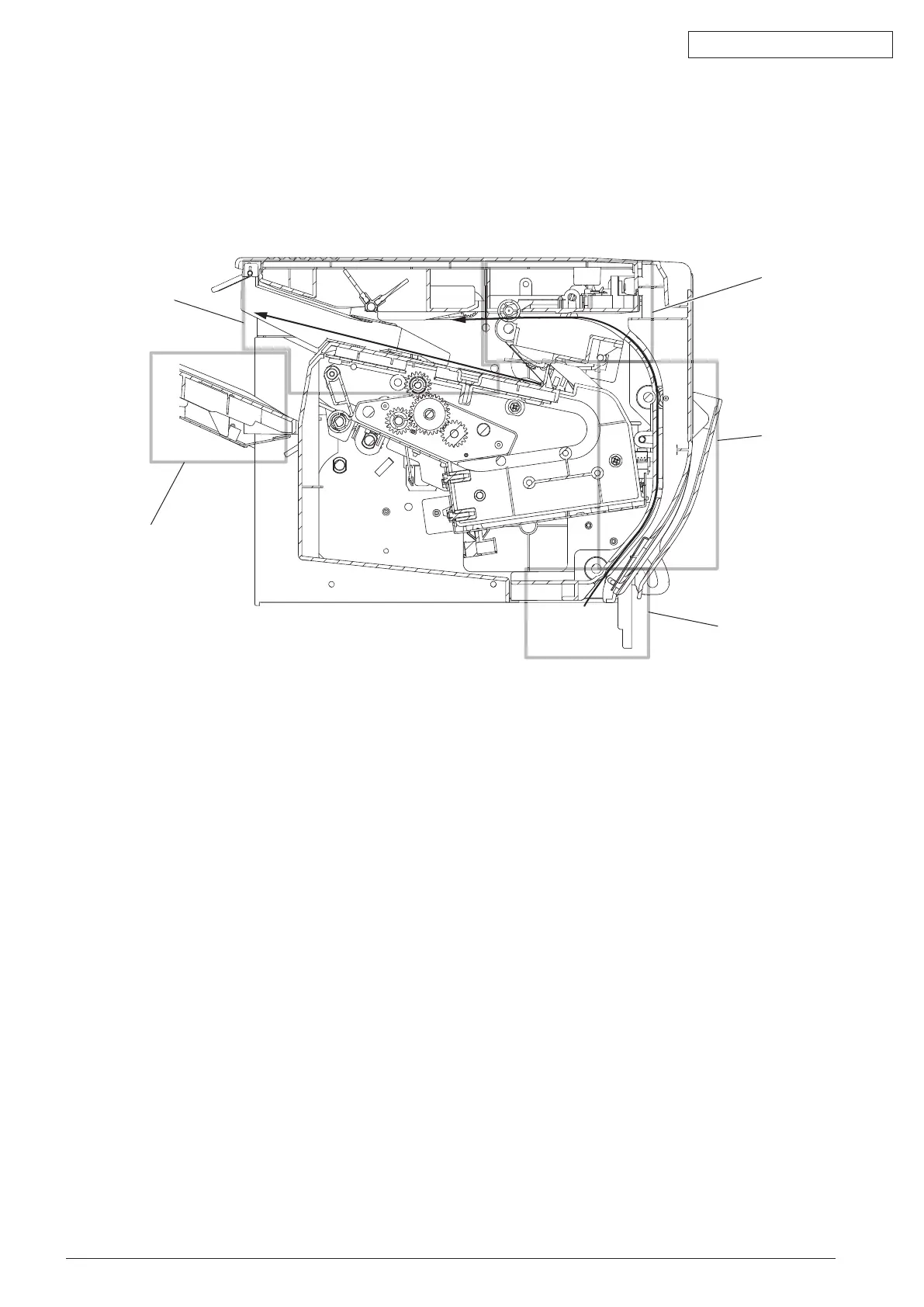

Fig. 3-1
[A] MFP Interface Section
[B] Entrance transport section
[C] Exit transport section
[D] Finishing tray section
[E] Stacker tray section
[B]
[A]
[C]
[D]
[E]
To Next Page
