45372301TH Rev.2
3-3 /
Oki Data CONFIDENTIAL
[A] MFP Interface Section

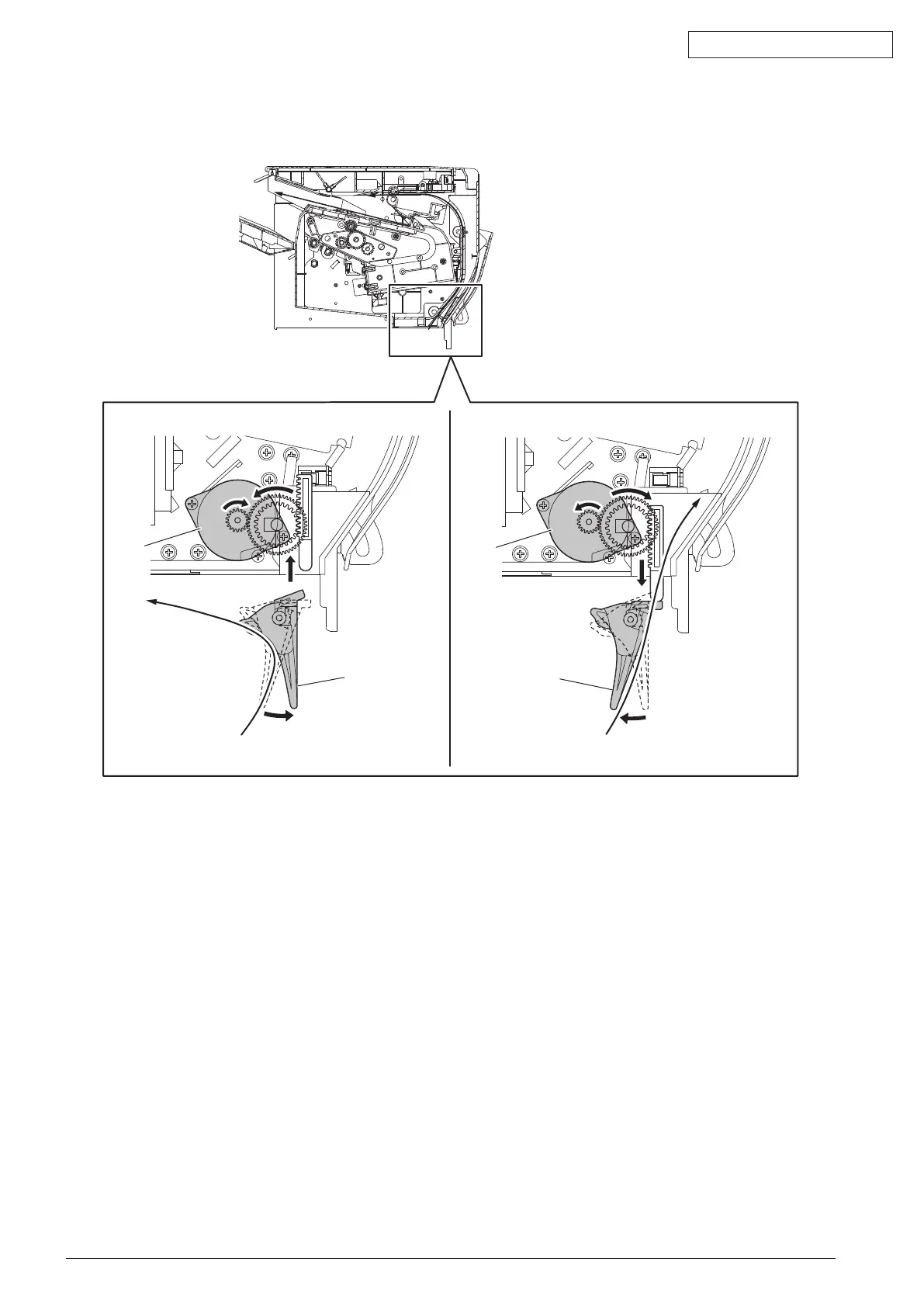

Fig. 3-2
If the finisher is specified as the paper discharge destination, the lever path motor (M10) rotates forward
and drives the lever so the machine's flapper (transport pass gate) switches to the finisher side, and the
paper is transported into the finisher.
When transportation of the paper into the finisher is complete, the lever path motor (M10) rotates back-
ward driving the lever so the lever returns to the home position, and the machine's flapper (transport
pass gate) switches to the machine's tray side.
[1] Flapper (Finisher side)
[2] Flapper (MFP side)
[3] Lever path motor (M10)
[1]
[3]
[2]
[3]
