45372301TH Rev.2
3-4 /
Oki Data CONFIDENTIAL

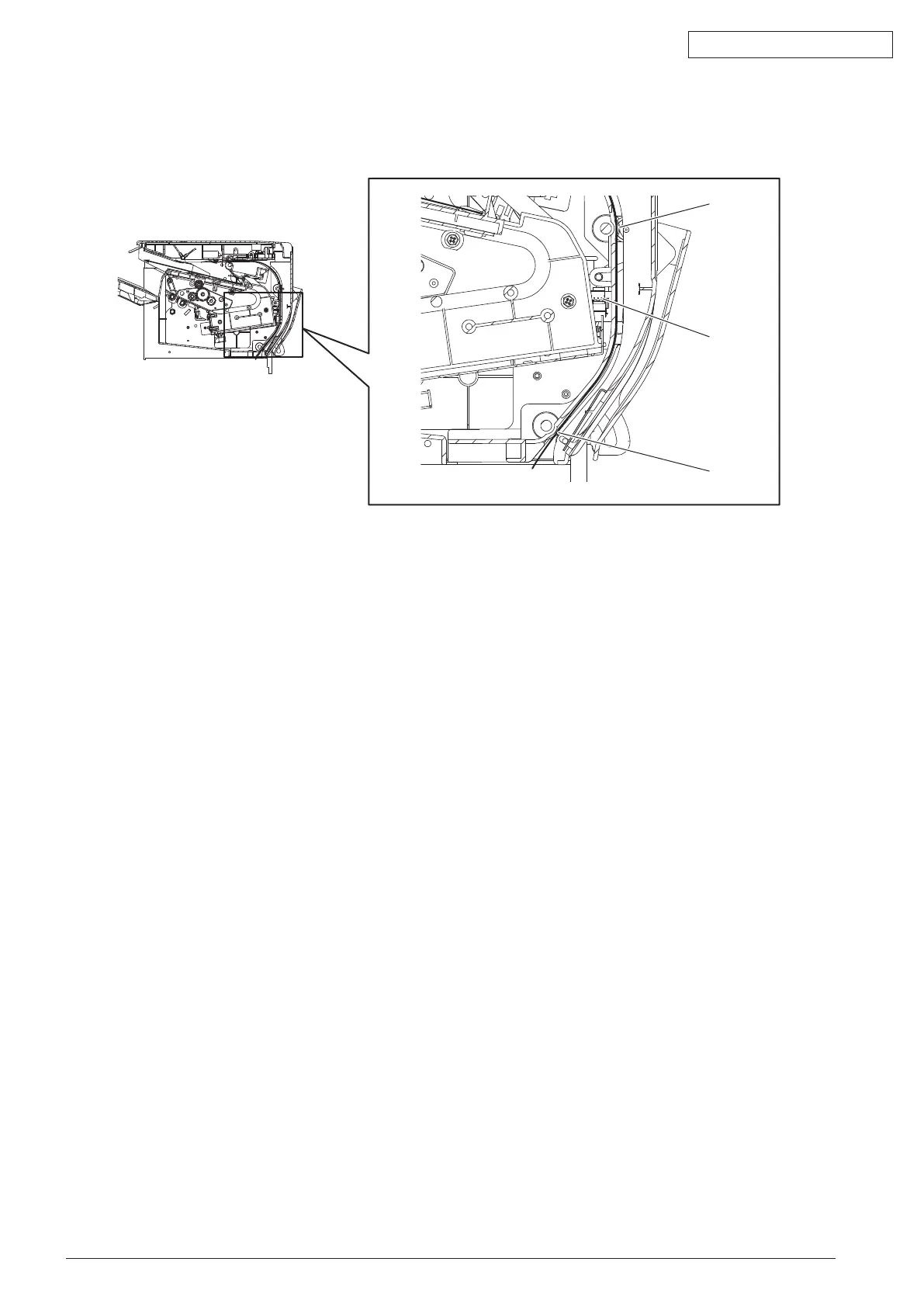

[B] Entrance transport section
Fig. 3-3
Paper transported from the machine is conveyed by the paper transport belt, which is driven by the
entrance transport motor (M1), and the entrance transport roller and transport roller rotate to transport it
to the discharge section.
The entrance transport sensor (S1) detects the paper being transported.
[1] Entrance transport roller
[2] Transport roller
[3] Entrance transport sensor
[2]
[3]
[1]
To Next Page
