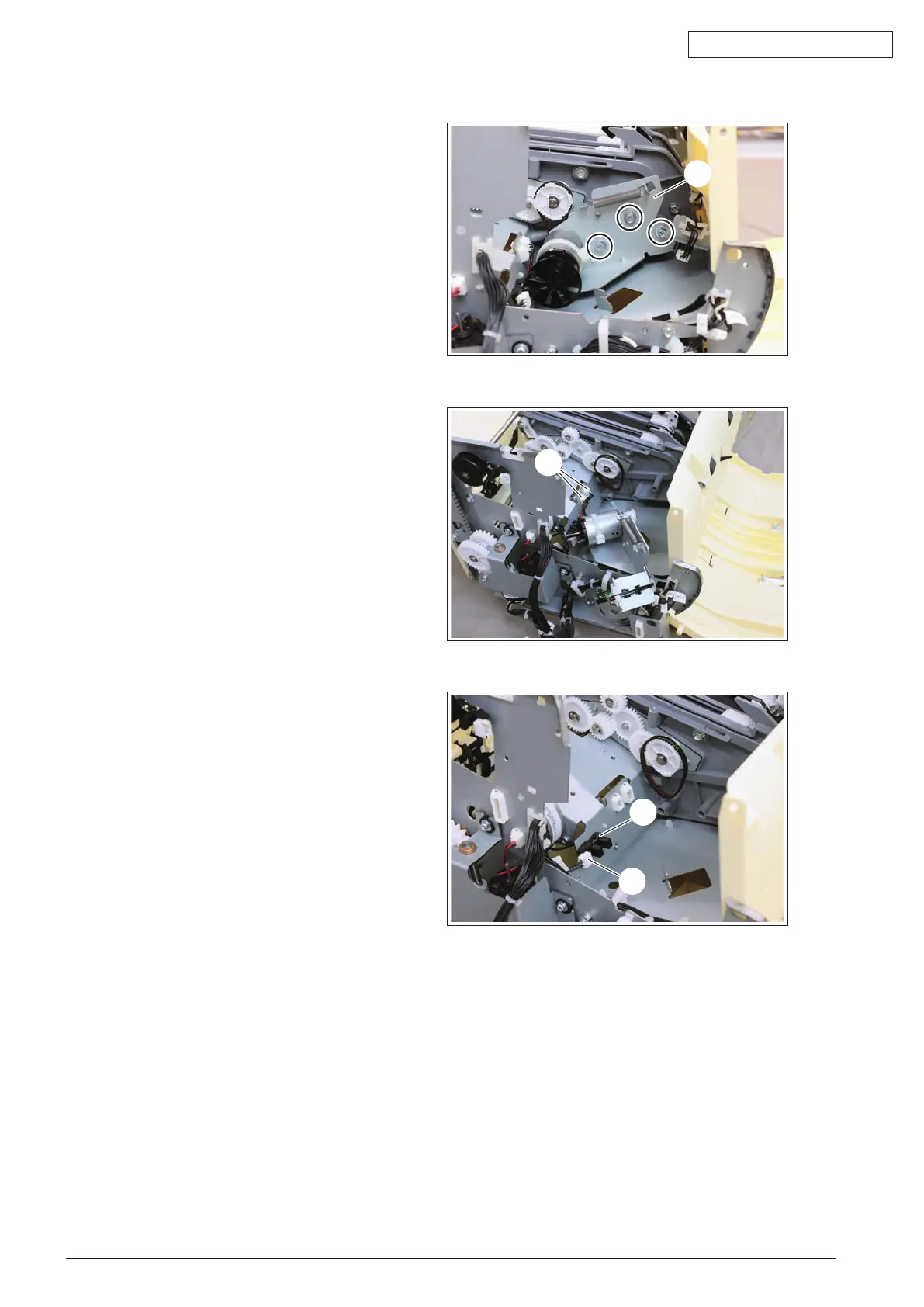

(6) Remove 3 screws and 2 connectors [10],
remove the ejector motor ASSY [11].
Fig. 4-30
Fig. 4-31
(7) Disconnect 1 connector [12] and then take
off the Ejector encoder sensor [13].
Fig. 4-32
[11]
[10]
[13]
[12]
