4.2.9 Stapler paper sensor (S14)
(1) Take off the Guide upper ASSY.
( P.4-3 "4.2.1 Guide upper ASSY")
(2) Remove 2 screws and 2 connectors [1],
remove the Stapler [2].

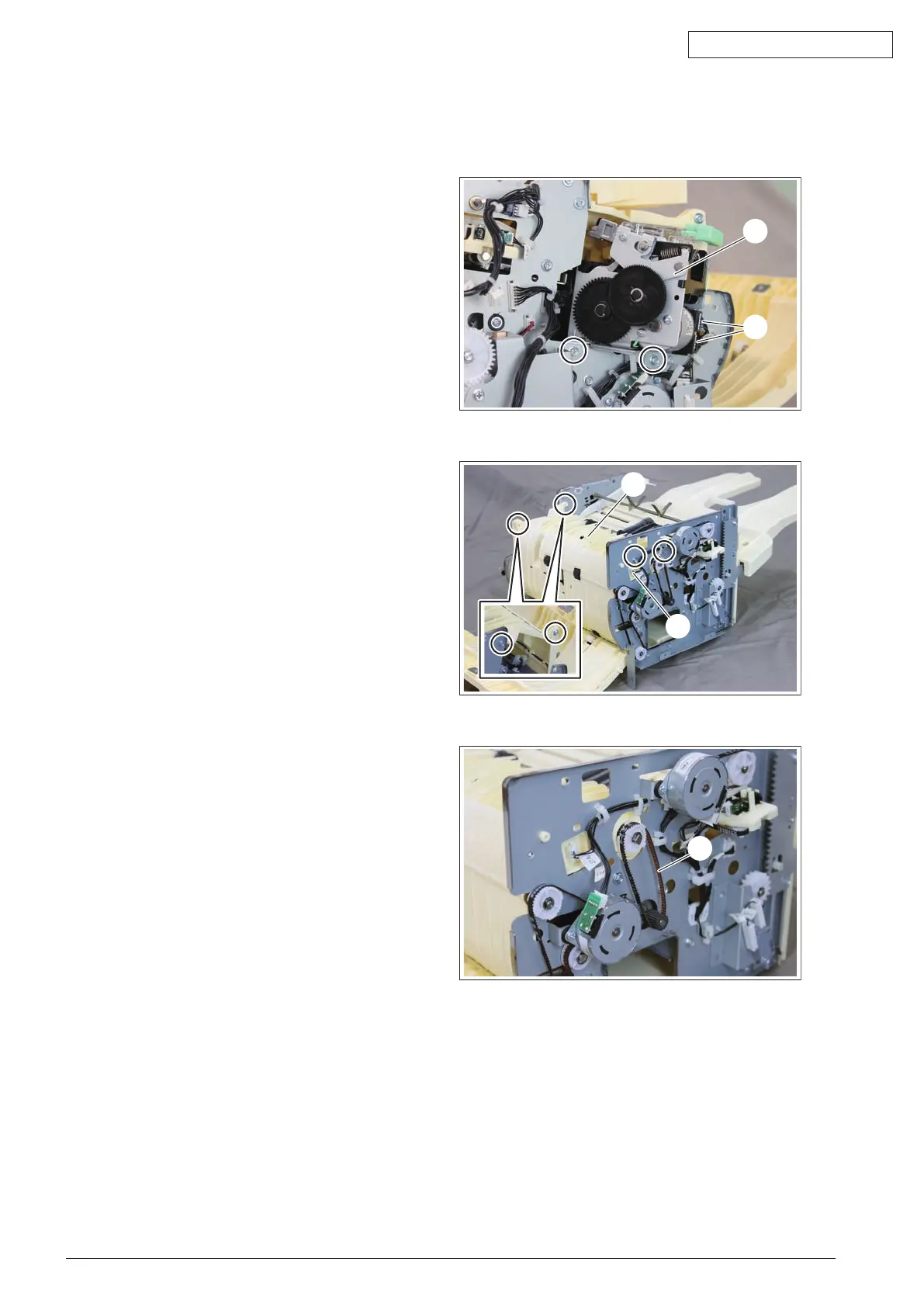

Fig. 4-33
(3) Take off the left cover.
( P.4-2 "4.1.3 Left cover")
(4) Remove 4 screws and disconnect 1 connec-
tor [3] and then take off the Guide compile
ASSY [4].
Fig. 4-34
Note:
Do not forget to install the belt [5].
Fig. 4-35
[2]
[1]
[3]
[4]
[5]
