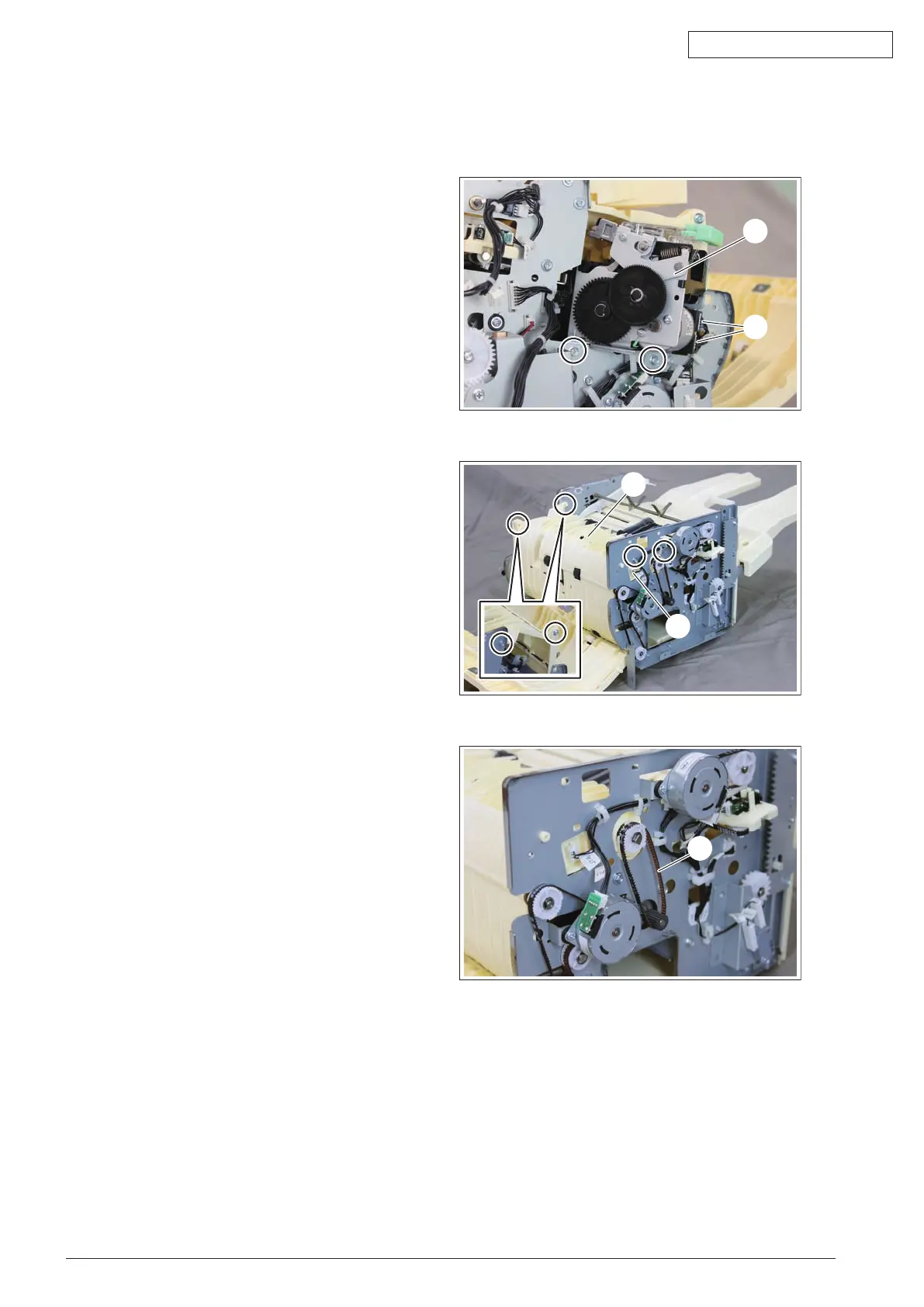

4.2.10 Stack home position sensor (S9)
(1) Take off the Guide upper ASSY.
( P.4-3 "4.2.1 Guide upper ASSY")
(2) Remove 2 screws and 2 connectors [1],
remove the Stapler [2].
Fig. 4-39
(3) Remove 4 screws and 1 connector [3],
remove the Guide compile ASSY [4].
Fig. 4-40
Note:
Do not forget to install the belt [5].
Fig. 4-41
[2]
[1]
[3]
[4]
[5]
