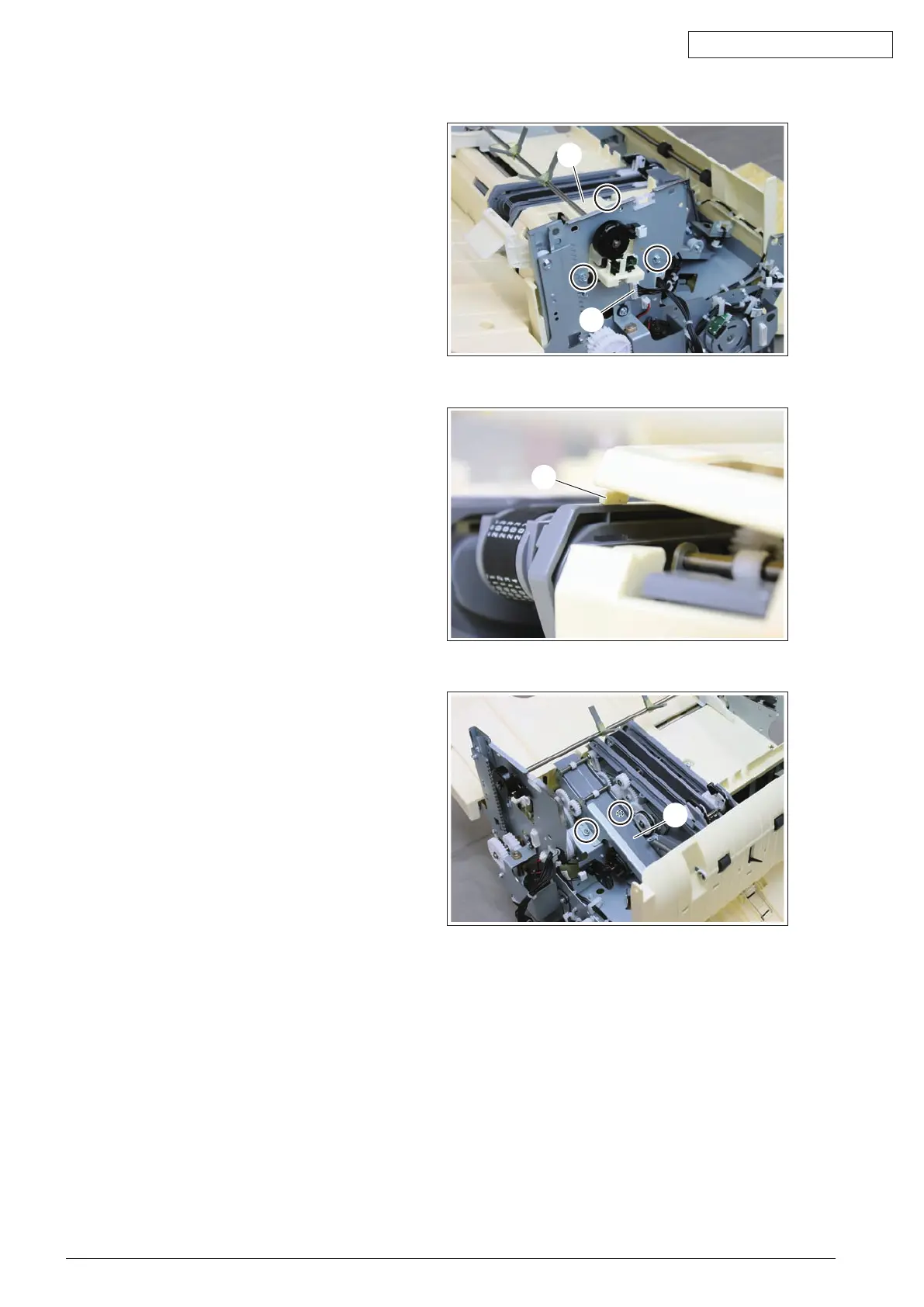

(4) Remove 3 screws and 1 connector [6],
remove the Tray compile F ASSY [7].
Fig. 4-42
Note:
Be careful of the hooks [8] during installation.
Fig. 4-43
(5) Remove 2 screws and take off the Paper
support F ASSY [9].
Fig. 4-44
[7]
[6]
[8]
[9]
