45372301TH Rev.2
4-20 /
Oki Data CONFIDENTIAL

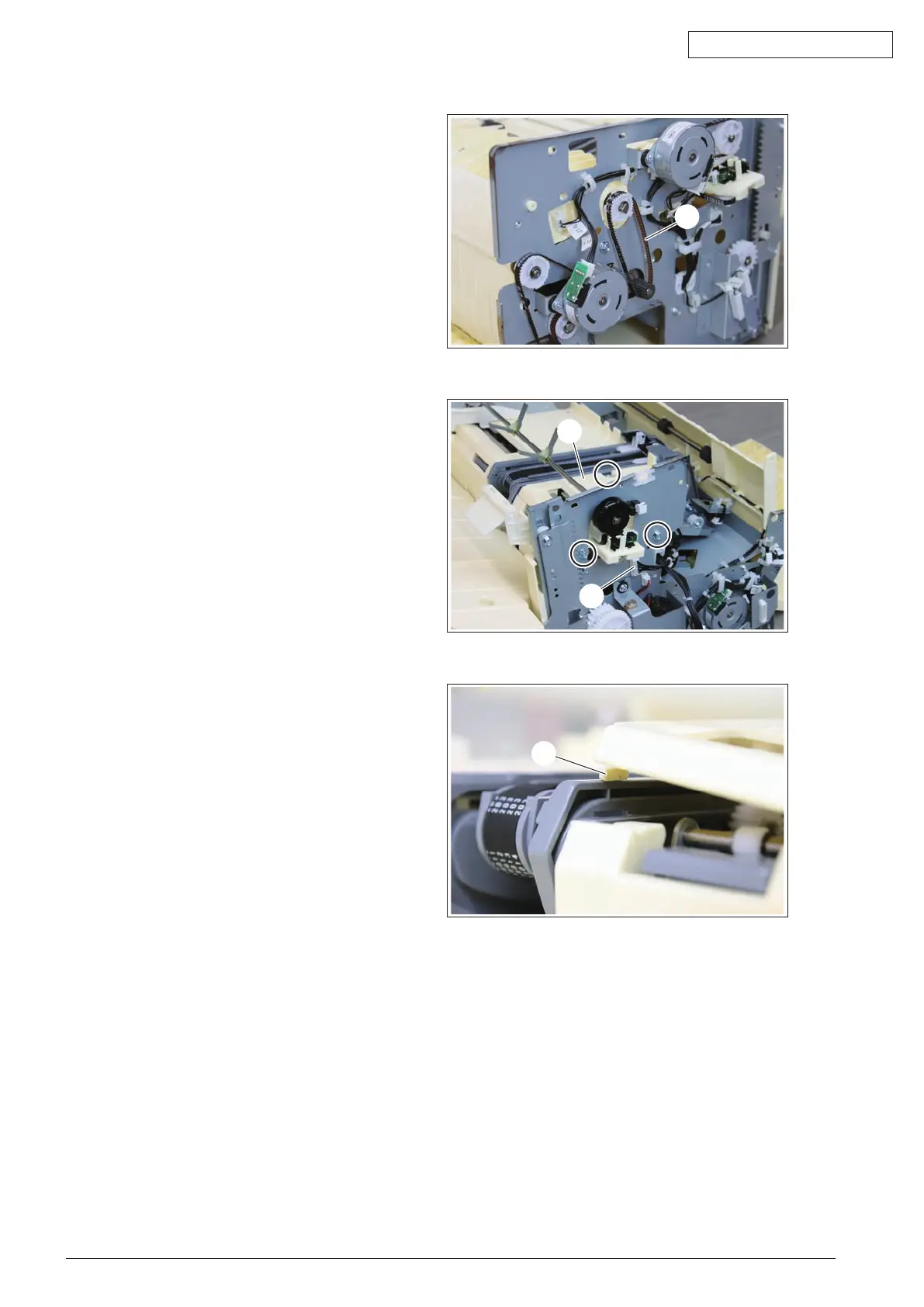

Note:
Do not forget to install the belt [5].
Fig. 4-48
(4) Remove 3 screws and 1 connector [6],
remove the Tray compile F ASSY [7].
Fig. 4-49
Note:
Be careful of the hooks [8] during installation.
Fig. 4-50
[5]
[7]
[6]
[8]
