Oki MB770 - Page 50

45372301TH Rev.2
4-24 /
Oki Data CONFIDENTIAL

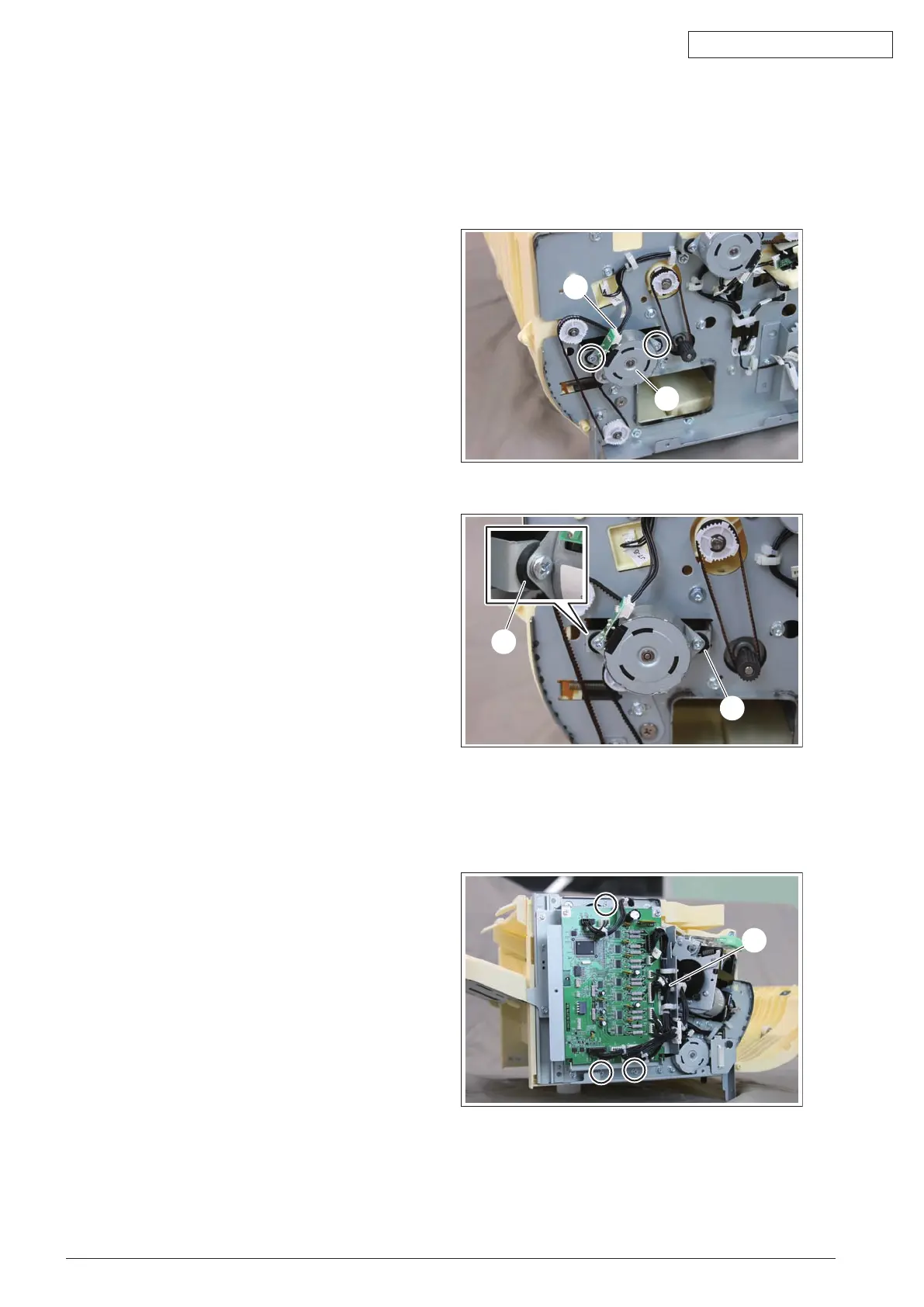

4.3 Disassembly and Replacement of motors
4.3.1 Entrance transport motor (M1)
4.3.2 Exit transport motor (M2)
(1) Take off the upper cover.
( P.4-1 "4.1.1 Upper cover")
(2) Take off the left cover.
( P.4-2 "4.1.3 Left cover")
(3) Remove 2 screws and 1 connector [1],
remove the Entrance transport motor [2].
Fig. 4-59
Note:
Do not forget to install the rubber vibration
suppressor [3].
Fig. 4-60
(1) Take off the upper cover.
( P.4-1 "4.1.1 Upper cover")
(2) Take off the right cover.
( P.4-1 "4.1.2 Right cover")
(3) Remove 3 screws and take off the Finisher
control PC board ASSY [1].
Fig. 4-61
[2]
[1]
[3]
[3]
[1]
