Oki MB770 - Page 49

45372301TH Rev.2
4-23 /
Oki Data CONFIDENTIAL

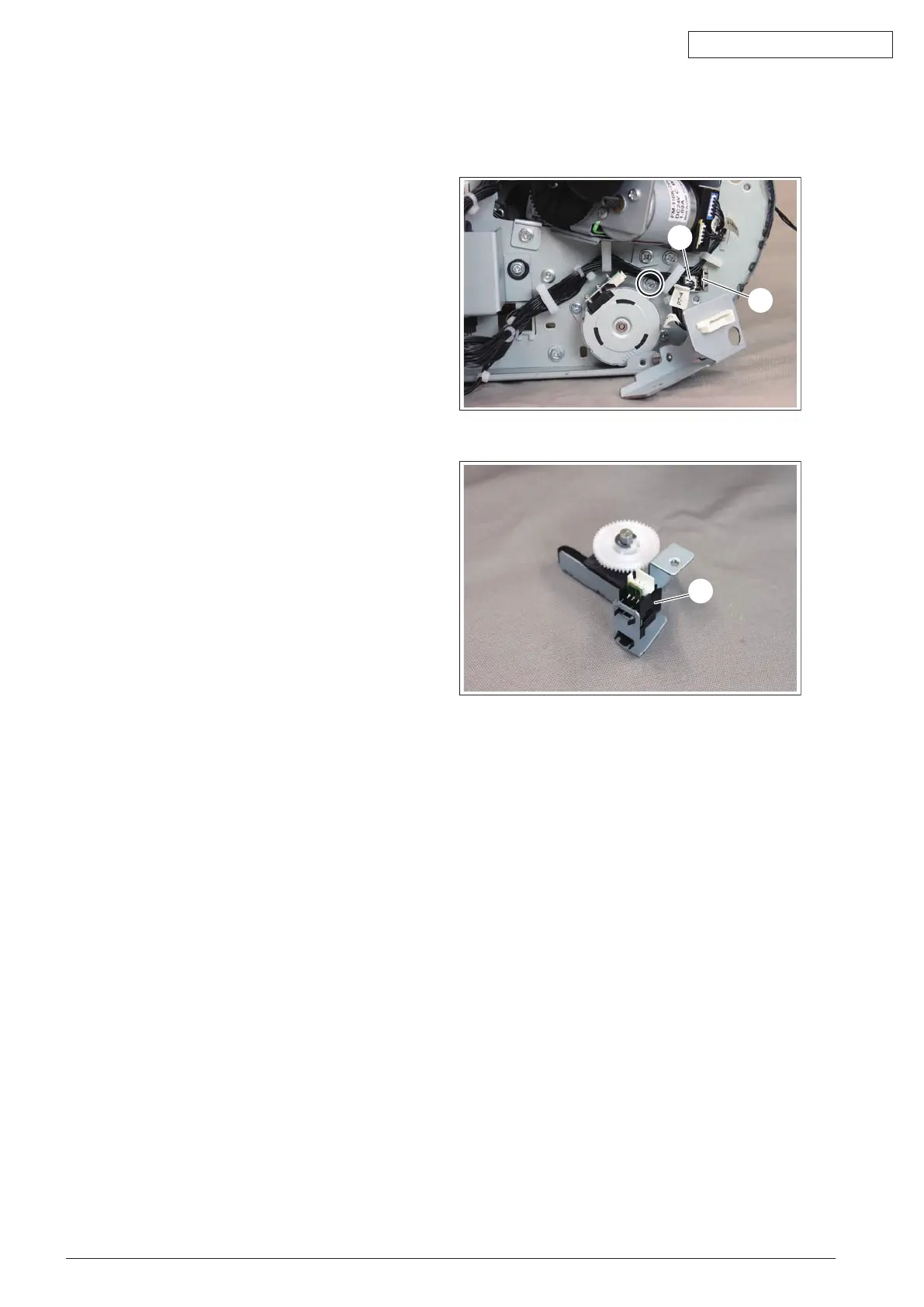

4.2.14 Lever path home position sensor (S15)
(1) Take off the Guide rear ASSY.
( P.4-3 "4.2.2 Guide rear ASSY")
(2) Remove 1 screw and 1 connector [1],
remove the Lever path bracket [2].
Fig. 4-57
(3) Remove the lever path home position sensor
[3] from the lever path bracket.
Fig. 4-58
[1]
[2]
[3]
