Oki MB770 - Page 48

45372301TH Rev.2
4-22 /
Oki Data CONFIDENTIAL

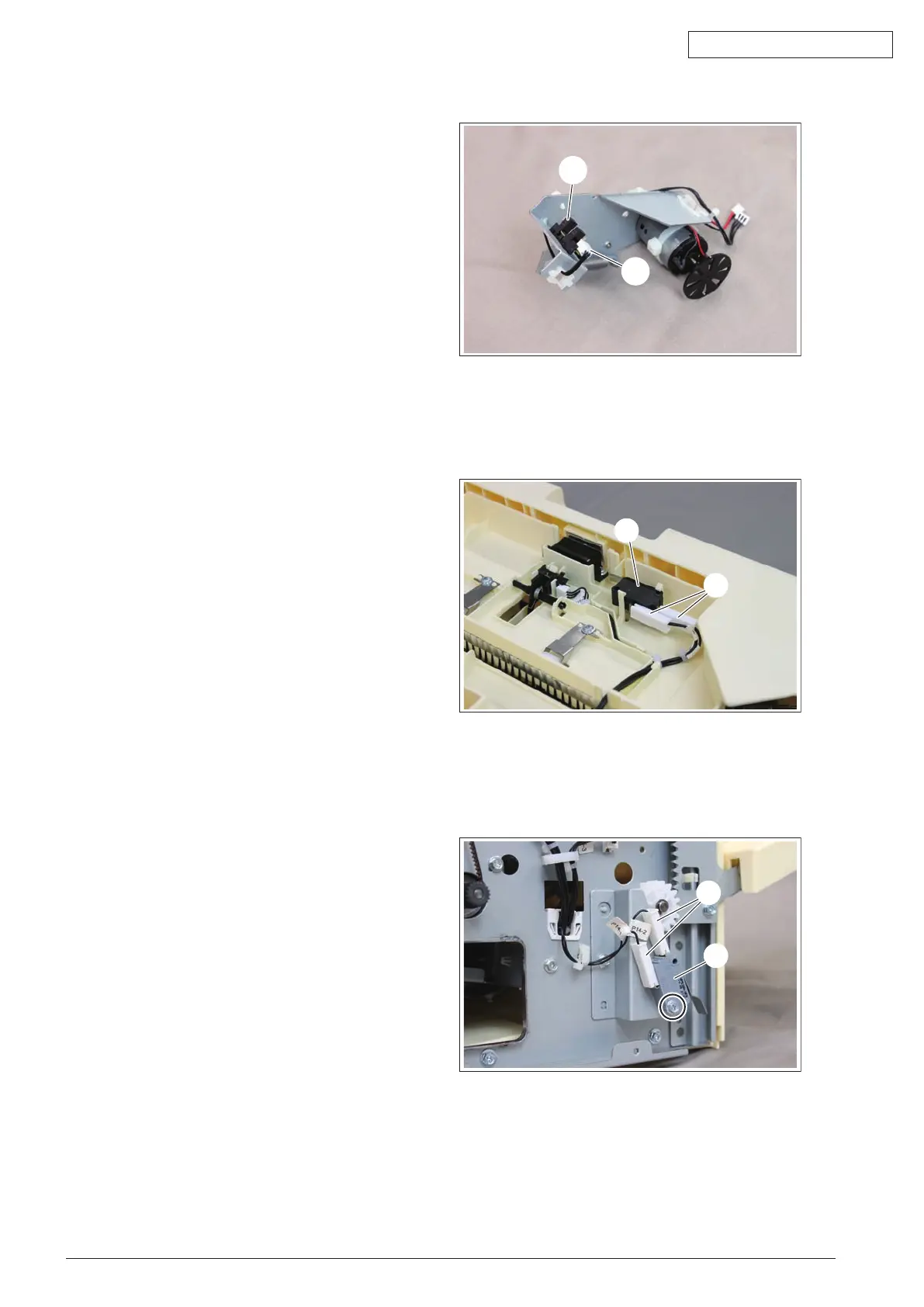

4.2.12 Door switch (SW2)
4.2.13 Stacker tray lower limit switch (SW1)
(7) Disconnect 1 connector [12] and then take
off the Paper support home position sensor
[13].
Fig. 4-54
(1) Take off the Upper cover.
( P.4-1 "4.1.1 Upper cover")
(2) Disconnect 1 connector [1] and then take off
the door switch [2].
Fig. 4-55
(1) Take off the Upper cover.
( P.4-1 "4.1.1 Upper cover")
(2) Take off the Left cover.
( P.4-2 "4.1.3 Left cover")
(3) Remove 1 screw and disconnect 1 connector
[1] and then take off the stacker tray lower
limit switch [2].
Fig. 4-56
[12]
[13]
[1]
[2]
[1]
[2]
