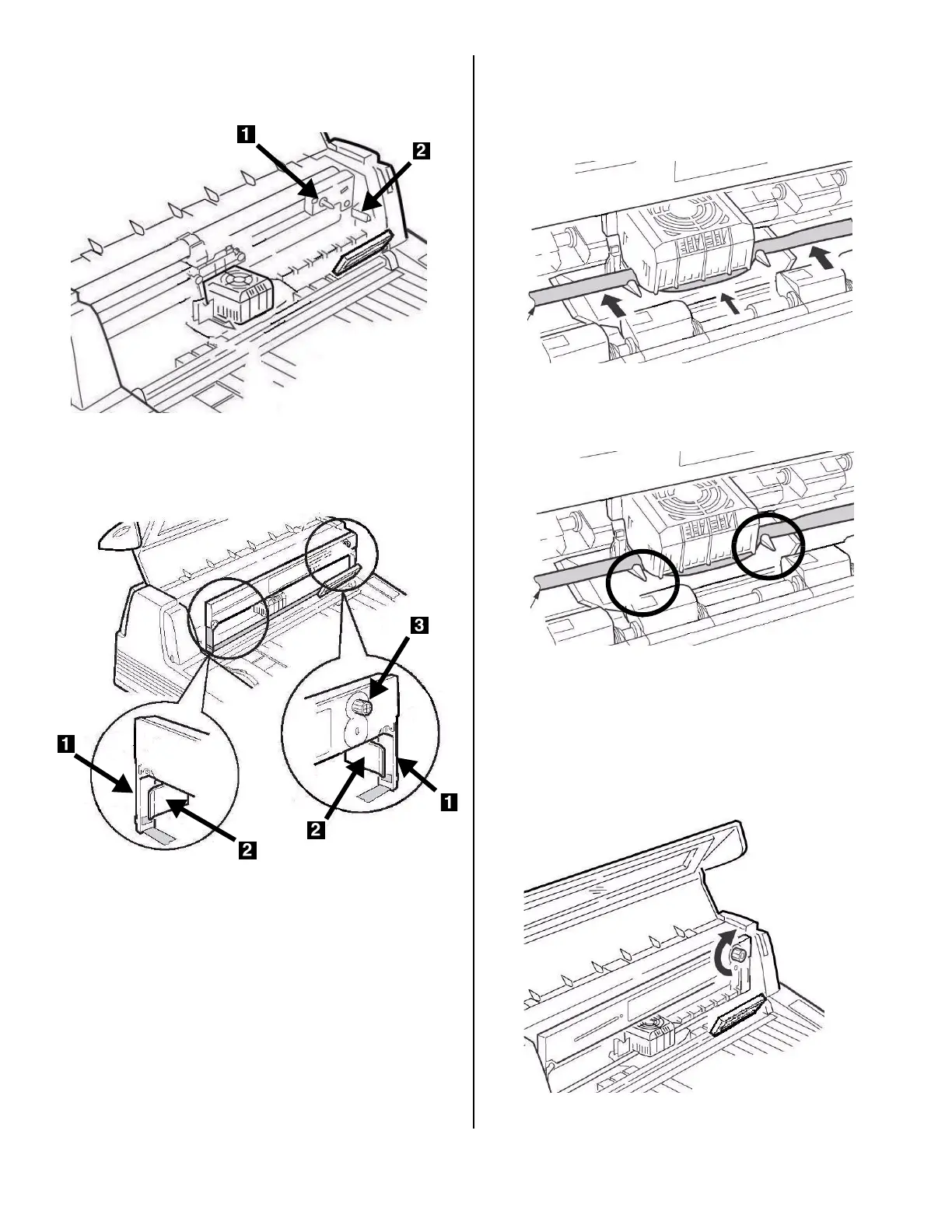

8. Observe the black pin ( 1 ) over which the ribbon
knob fits, and the guides (
2 )—one at either end—
into which the ribbon arms fit.
9. Feed the ribbon arms (
1 ) in beside the guides
(
2 ), position the take-up knob ( 3 ) over the pin,
then press the cartridge in firmly at either end.
10. Pull the ribbon out a bit at the left end of the
cartridge to give some slack, then slide the ribbon
underneath the printhead. Be careful that the
ribbon is not twisted, folded or pulled off the
ribbon arms during this process.
11. Make sure the ribbon is threaded through the
indentation in each ribbon guide arm.
Caution!
Always turn the ribbon knob clockwise :
turning it
counter clockwise (to the left) can
cause the ribbon to jam.
12. Turn the ribbon knob clockwise (in the direction
of the molded arrow) to take up any excess slack
in the ribbon.
F2_1
3b.jp
g
F2_15a.j
pg

Oki MICROLINE 8810 Specifications

General

Color	No
Built-in barcodes	EAN13, PostNet, UPC-A, UPC-E
Maximum number of copies	8 copies
Fonts included	5
Media thickness	0.48 mm
Dimensions (WxDxH)	598 x 397 x 235 mm
Power requirements	120V-240V (±10%, 50Hz/60Hz)
Connectivity technology	Wired
Compatible operating systems	Windows Vista 32/64, XP, 2000, 98, NT 4.0, 2003 Server
Print direction	Bi-directional
Maximum duty cycle	24000 pages per month
Mean time between failures (MTBF)	10000 h
Sound pressure level (printing)	55.5 dB
Power consumption (standby)	25 W
Power consumption (typical)	120 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	30 - 85 %
