Oki MICROLINE 8810 Setup Guide

9

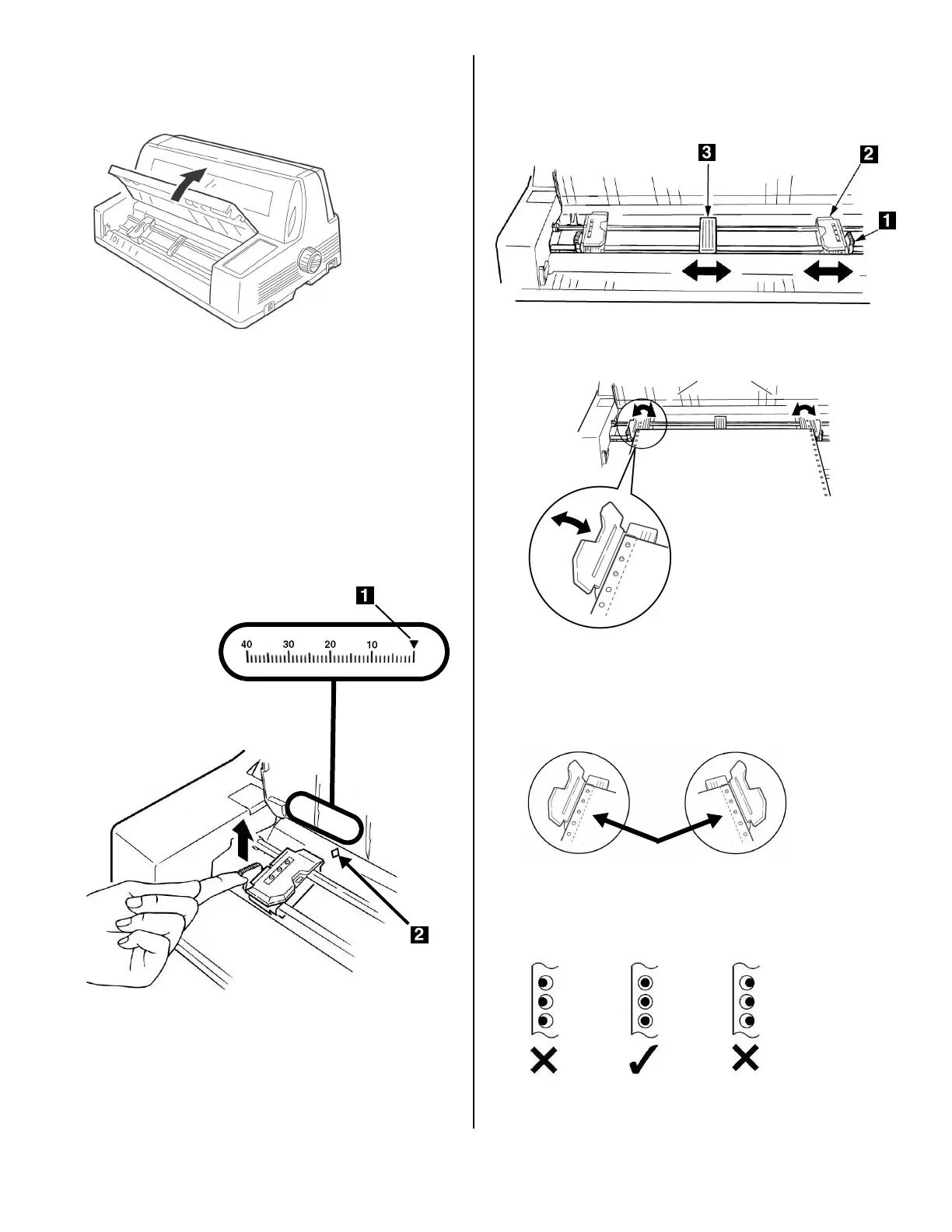

Load Continuous Forms
1. Push the sheet supports in and lift the sheet feed
platform
2. Lift the lock lever on the left tractor, then move
the left tractor to set the desired left margin for
printing.
•The
▼ mark on the gauge ( 1 )—or the center of
the diamond shaped hole (
2 )—represents the
location of the center of the first character
printed.
Note
The movement of the left tractor is limited to
ensure that the paper covers the paper out
sensor.
3. Push the lock lever down to lock the left tractor in
place.
4. Lift the lock lever (
1 ) on the right tractor ( 2 ) and
move the tractor over to correspond to the width
of the continuous forms you are using. Center the
paper support (
3 ) between the two tractors.
5. Open both tractor covers and place the first three
holes in the continuous forms paper over the pins.
Important!
Make sure that an equal number of paper holes
are engaged on each tractor. If not, the paper
will jam.
6. Close the tractor covers and fine tune the position
of the right tractor until the holes in the paper are
centered on the pins, then push back the right
tractor lock lever.
7. Lower the platform.

Oki MICROLINE 8810 Specifications

General

Color	No
Built-in barcodes	EAN13, PostNet, UPC-A, UPC-E
Maximum number of copies	8 copies
Fonts included	5
Media thickness	0.48 mm
Dimensions (WxDxH)	598 x 397 x 235 mm
Power requirements	120V-240V (±10%, 50Hz/60Hz)
Connectivity technology	Wired
Compatible operating systems	Windows Vista 32/64, XP, 2000, 98, NT 4.0, 2003 Server
Print direction	Bi-directional
Maximum duty cycle	24000 pages per month
Mean time between failures (MTBF)	10000 h
Sound pressure level (printing)	55.5 dB
Power consumption (standby)	25 W
Power consumption (typical)	120 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	30 - 85 %
