Paper handling > 20

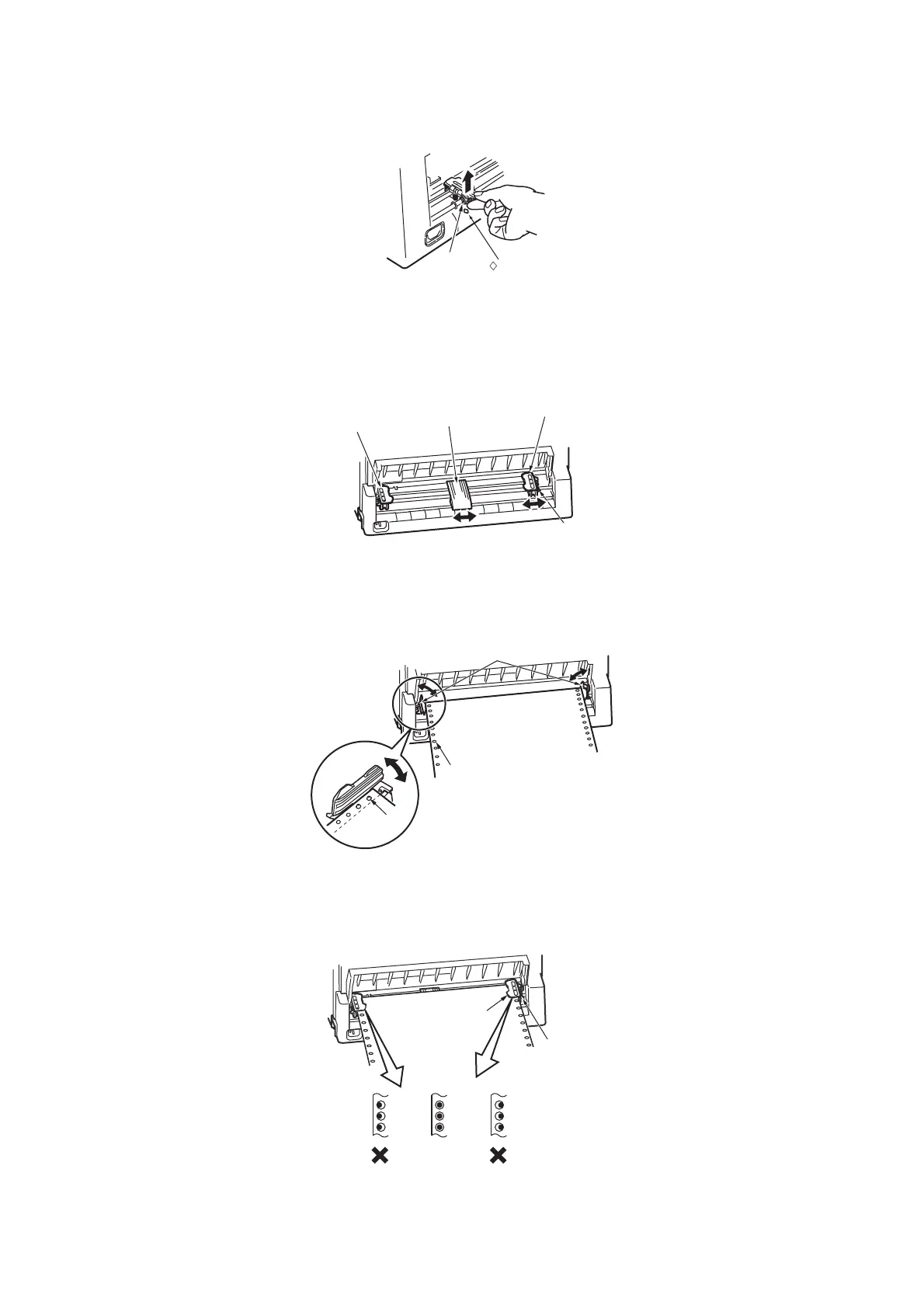

4. Lift the locking lever (1) of the left Pin Tractor and slide the Pin Tractor as required to
adjust the paper position relative to the first horizontal character centre mark (2).
Press the locking lever back down to lock the Pin Tractor in the desired position.
5. Lift the locking lever (1) of the right Pin Tractor and slide the Pin Tractor to the
required position to accommodate the width of the continuous forms to be used.
Move the rear paper guide (2) to midway between the left (3) and right (4) Pin
Tractor s.
6. Open the left and right Pin Tractor covers (1) and feed the continuous forms in the
direction of the arrows, locating the sprocket holes (2) in the forms onto the
sprocket pins. Ensure that the forms are properly aligned on the sprocket pins (3),
then close the covers.
7. Adjust the right Pin Tractor (1) to accommodate the width of the continuous forms,
taking care that the forms are held neither too loosely nor too tightly between the
Pin Tractors. Press the locking lever (2) down to lock the right Pin Tractor in the
desired position.
