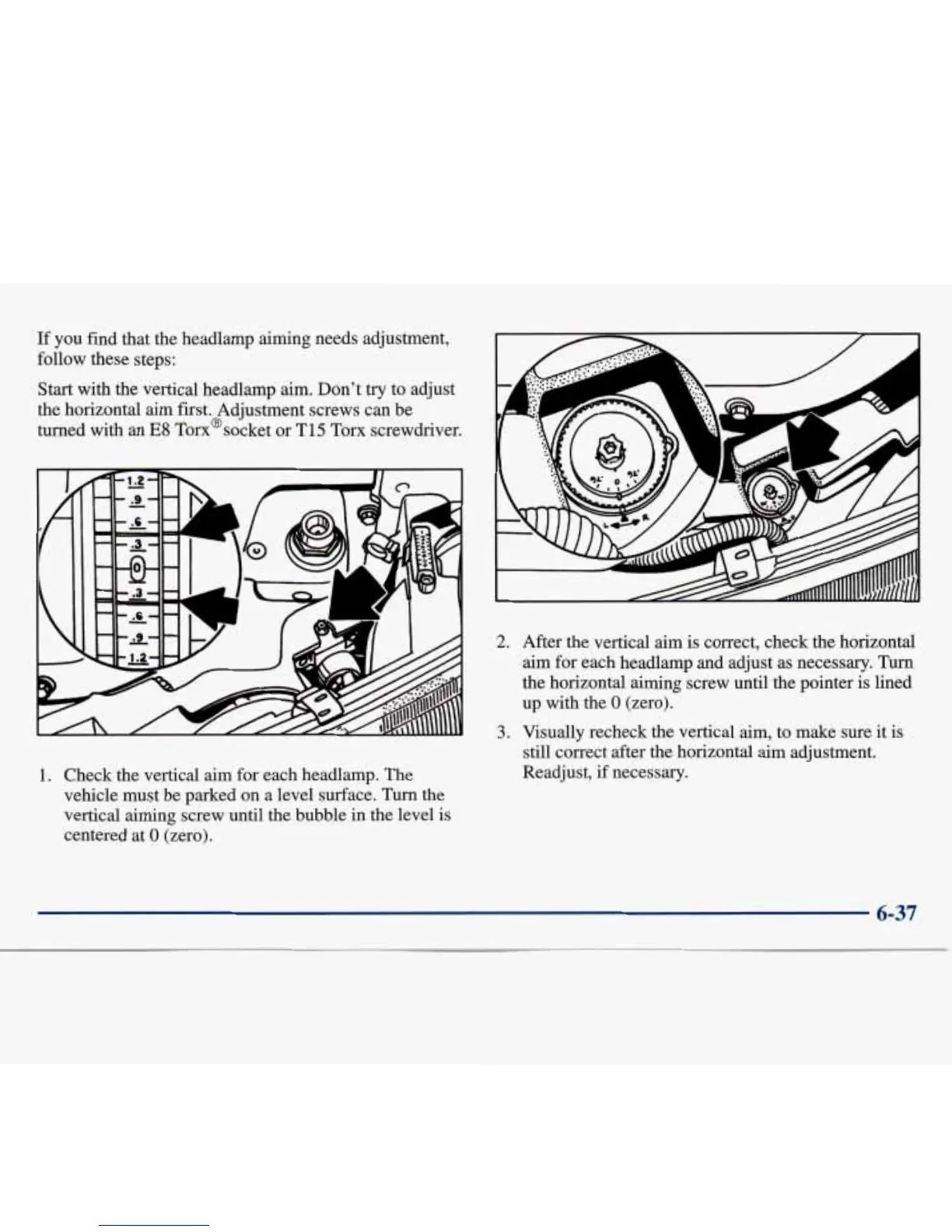

If
you find that the headlamp aiming needs adjustment,
follow these steps:
Start with the vertical headlamp aim. Don't try to adjust
the horizontal aim first. Adjustment screws can be
turned with
an
E8
Torx@socket or T15 Torx screwdriver.
1.
Check the vertical aim for each headlamp. The
vehicle must be parked on a level surface. Turn the
vertical aiming screw until the bubble in the level is
centered at
0
(zero).
i
I
2.
After the vertical aim is correct, check the horizontal
aim for each headlamp and adjust as necessary. Turn
the horizontal aiming screw until the pointer is lined
up with the
0
(zero).
3.
Visually recheck the vertical aim, to make sure it is
still correct after the horizontal aim adjustment.
Readjust,
if
necessary.
6-37
