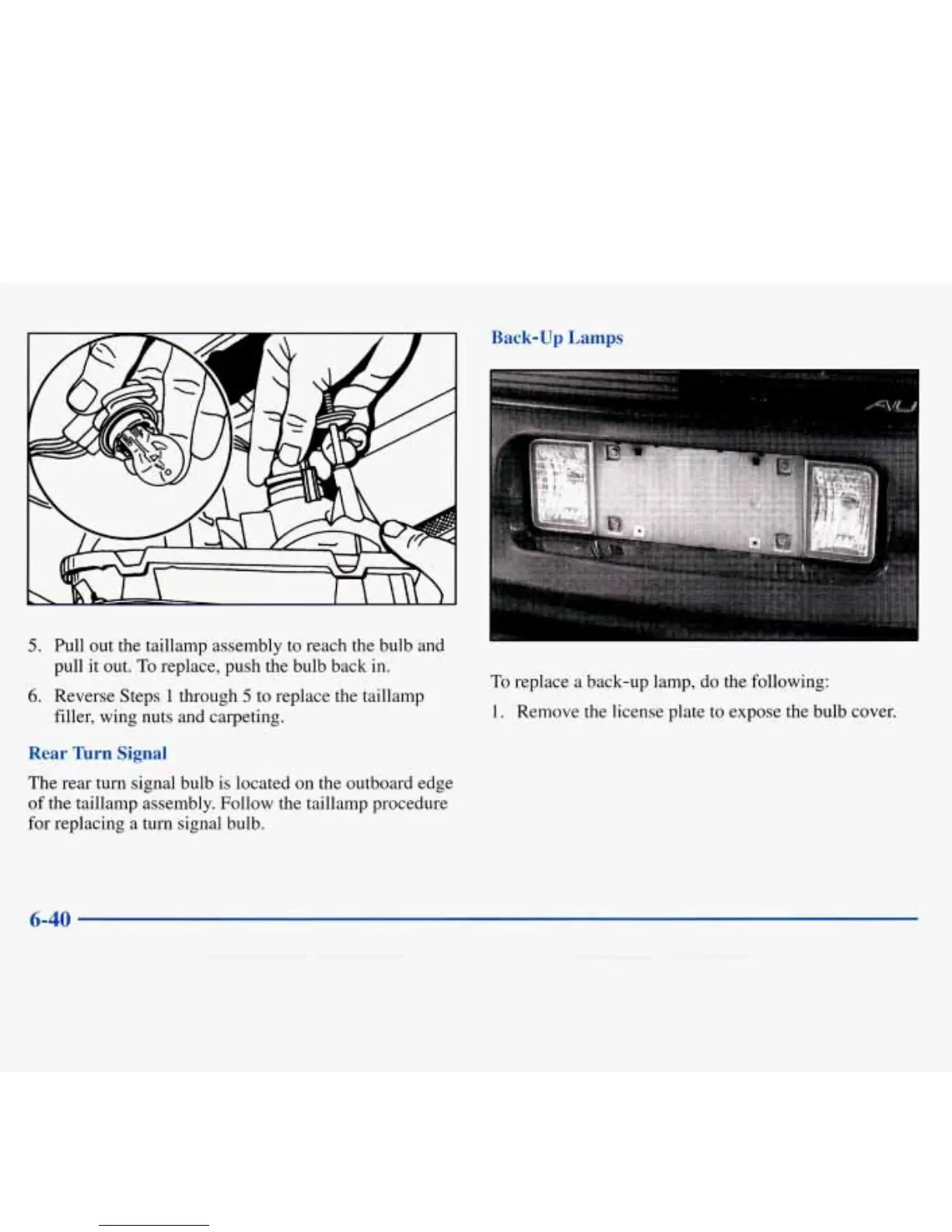

Back-up Lamps
5.
Pull out the taillamp assembly to reach the bulb and
pull it out.
To
replace, push the bulb back in.
6.
Reverse Steps
1
through
5
to replace the taillamp
filler, wing nuts and carpeting.
Rear lhrn
Signal
The
rear turn signal bulb is located on the outboard edge
of the taillamp assembly. Follow the taillamp procedure
for
replacing a turn signal bulb.
To
replace a back-up lamp, do the following:
1.
Remove the license plate to expose the bulb cover.
6-40
