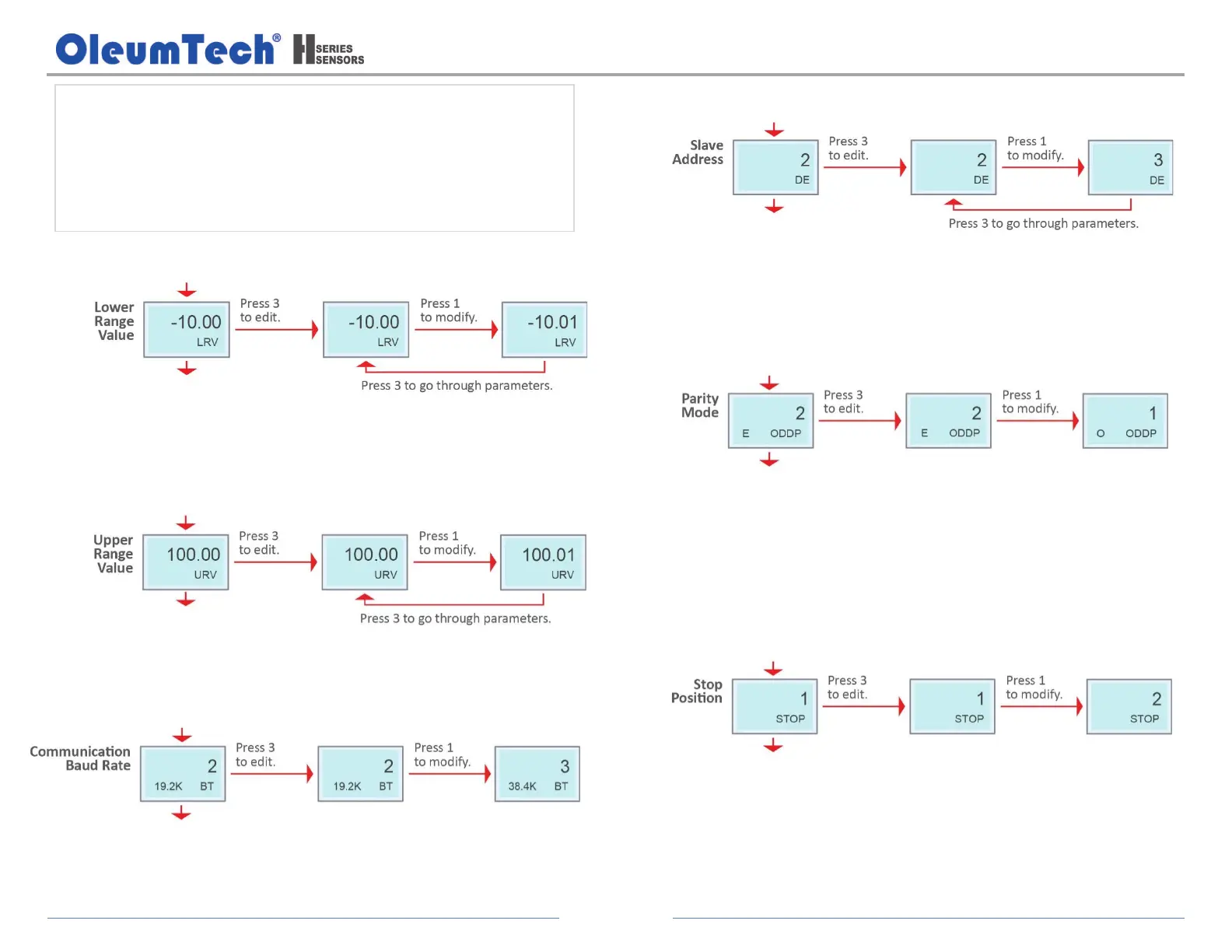

a. Optional - Configure the Lower Range Value (LRV).
Range: -19999 to 99999
The span adjustability does not apply to the RS485 model since the reading
output is digital.
b. Optional - Configure the Upper Range Value (URV).
c. Configure the Communication Baud Rate.
Options:
0 = 4.8K; 1 = 9.6K (Default); 2 = 19.2K
3 = 38.4K; 4 = 57.6K; 5 = 115.2K
d. Configure the Slave Address.
Range:
1 to 247 (2 is Default)
e. Configure the Parity Mode.
Options:
0 = None
1 = Odd (Default)
2 = Even
f. Configure the Stop Position.
Options:
1 = 1 Stop Position (Default)
2 = 2 Stop Position
PV Reversal Configuration*
The Pressure Value can be configured as a positive value when the pressure on the
LOW side is greater than the HIGH side. To do so, simply swap the Lower Range Value
(LRV) and Upper Range Value (URV).
Example using a hypothetical span:
Standard use case: 150 psi (URV), -150 psi (LRV)
Reverse high side / low side use case: -150 psi (URV), 150 psi (LRV)
*Not applicable on 1500 psi models.
Range: -19999 to 99999
The span adjustability does not apply to the RS485 model since the
reading output is digital.
