DIFFERENTIAL PRESSURE TRANSMITTER - USER GUIDE

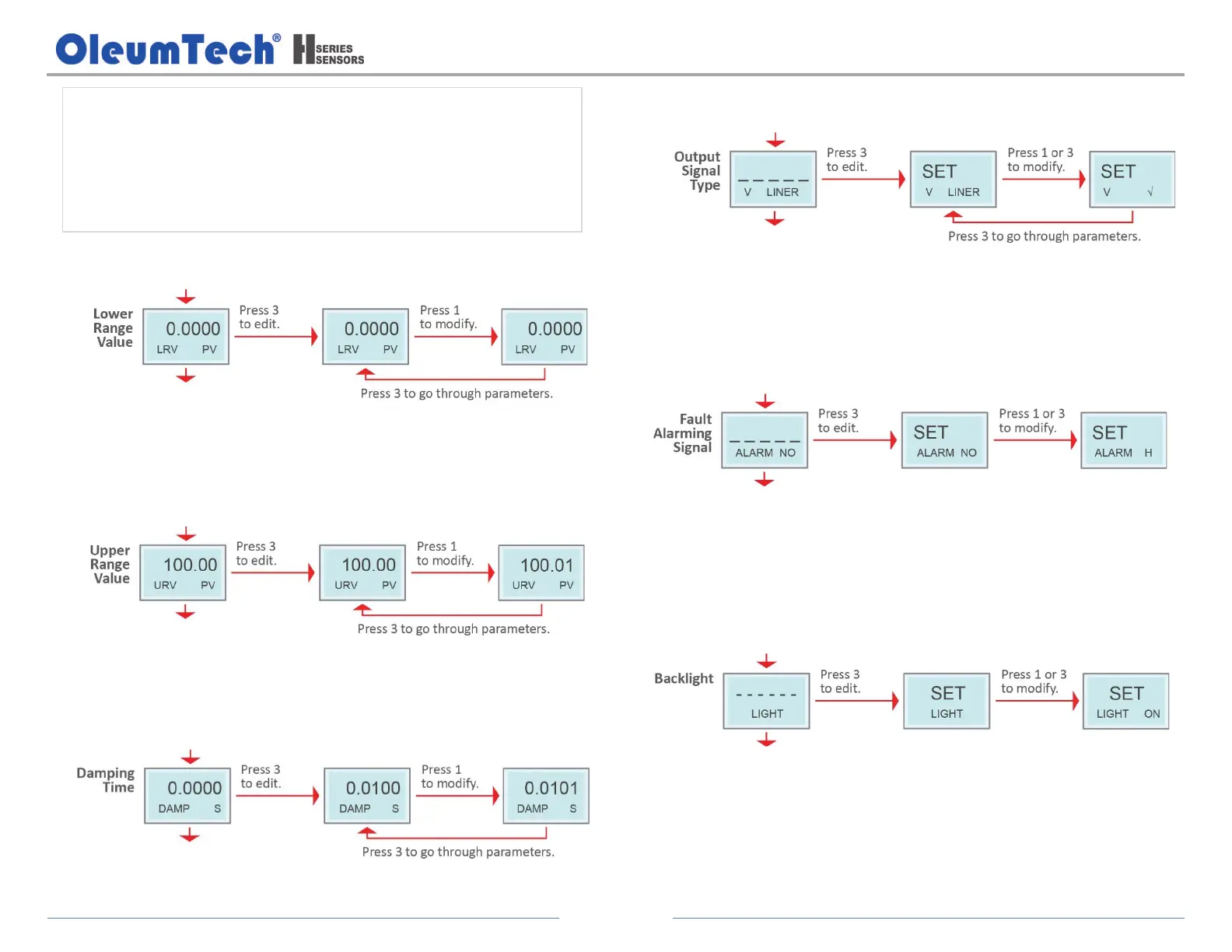

c. Configure the Lower Range Value - LRV.
Range: -19999 to 99999 (actual editable range depends on the model)
d. Configure the Upper Range Value - URV.
Range: -9999 to 99999 (actual editable range depends on the model)
e. Configure the Damping Time.
Range: 0 (Default) to 100 seconds
f. Configure the Output Signal Type.
Options:
√ = Square
LINER = Linear (Default)
g. Configure the Fault Alarming Signal.
Options:
NO = None (Default)
H = 5.2 V
L = 0.95 V
h. Configure the Backlight Settings
Options:
On = Always On (Default)
Off = Always Off
PV Reversal Configuration*
The Pressure Value can be configured as a positive value when the pressure on the
LOW side is greater than the HIGH side. To do so, simply swap the Lower Range Value
(LRV) and Upper Range Value (URV).
Example using a hypothetical span:
Standard use case: 150 psi (URV), -150 psi (LRV)
Reverse high side / low side use case: -150 psi (URV), 150 psi (LRV)
*Not applicable on 1500 psi models.
