DIFFERENTIAL PRESSURE TRANSMITTER - USER GUIDE

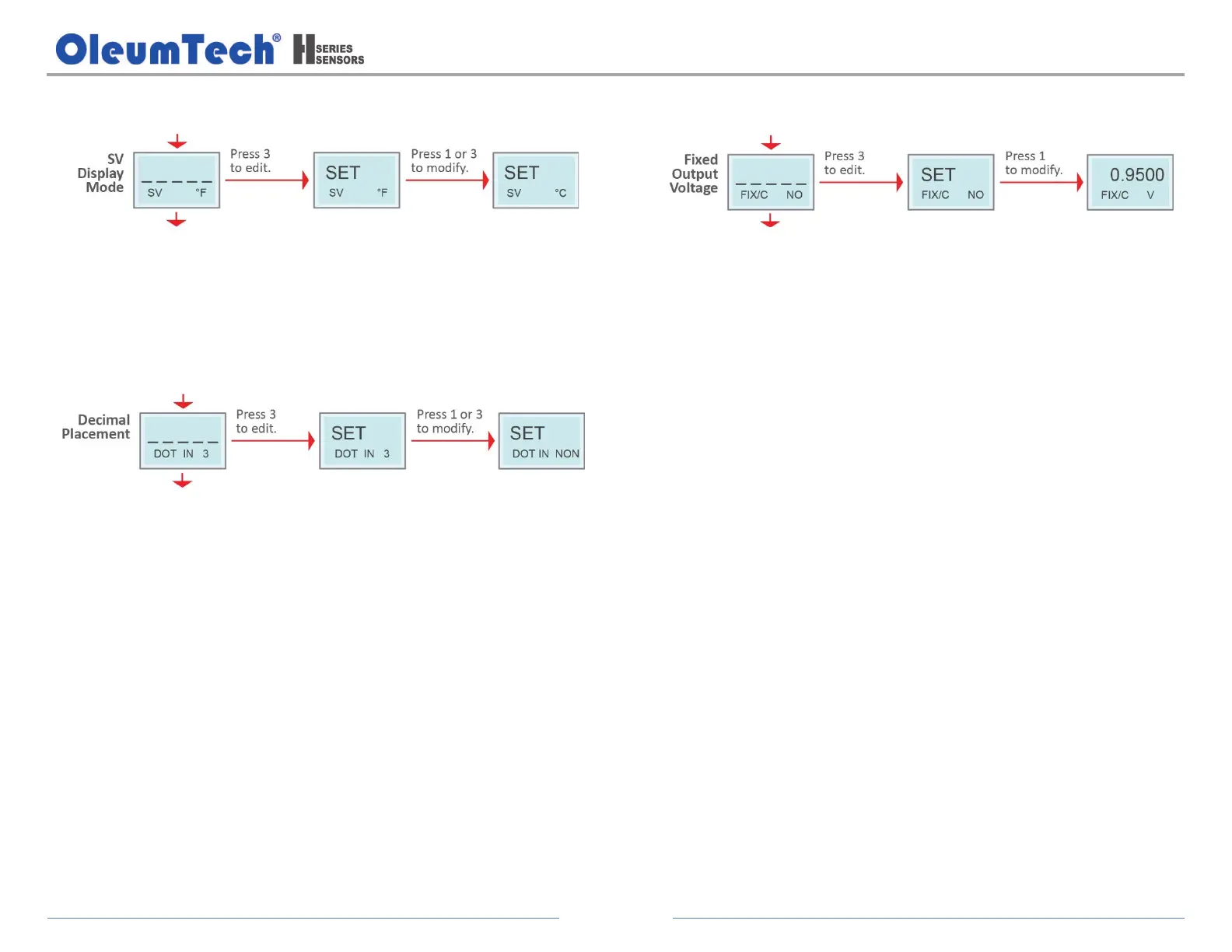

i. SV (Secondary Value) Display Mode
Options
Off = None °C, Celsius °F, Fahrenheit (Default)
K, Kelvin
j. Configure the Decimal Placement.
NON = No decimals
1 = Max one decimal
2 = Max two decimals
3 = Max three decimals
k. Configure the Fixed Output Current.
Options:
NO = Not Fixed
0.9500 = Fixed to 0.95 V
1.0000 = Fixed to 1 V
2.0000 = Fixed to 2 V
3.0000 = Fixed to 3 V
4.0000 = Fixed to 4 V
5.0000 = Fixed to 5 V
5.2000 = Fixed to 5.2 V
