2PV/2PW
1-5-9
(3) Detaching and refitting the left rear cover, left cover and left lower cover
Procedure
1. Remove the rear upper cover, right
upper cover, left upper cover and front
cover (see page 1-5-3).

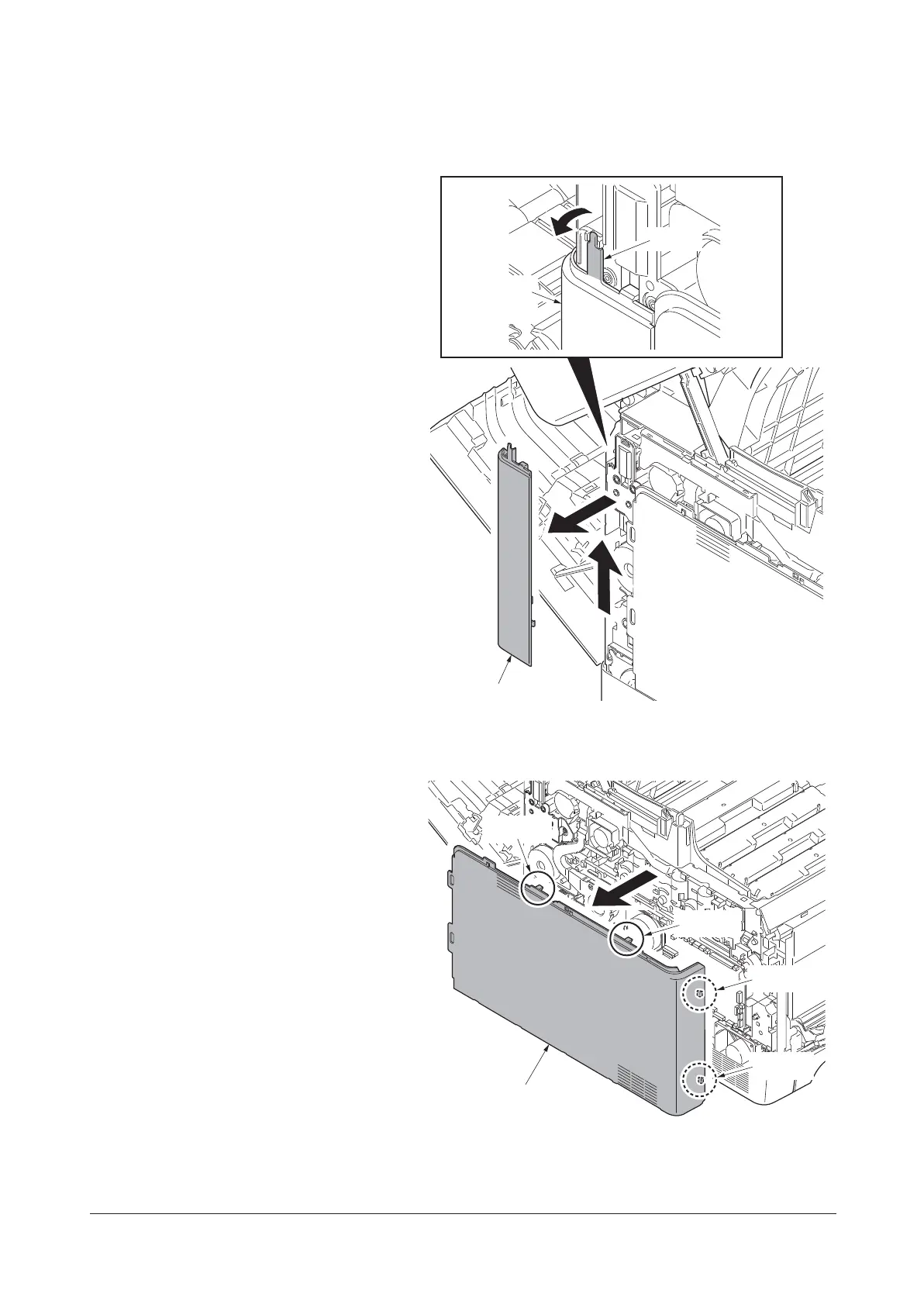

2. Release the hook. Slide the left rear
cover upward and then remove it.
Figure 1-5-14
3. Release four hooks (hook A → B) and
then remove the left cover.
Figure 1-5-15
Left rear cover
Left rear
cover
Hook
Left cover
Hook B
Hook B
Hook A
Hook A
Service Manual
Y116650-5
To Next Page
