Olivetti d-Color MF2613En User Manual

2PV/2PW
1-5-91
(3) Detaching and refitting the power source inlet
Procedure
1. Remove the power source PWB (see
page 1-5-29).
2. Remove the connector and release th
e
hook and then remove the right fan
motor.

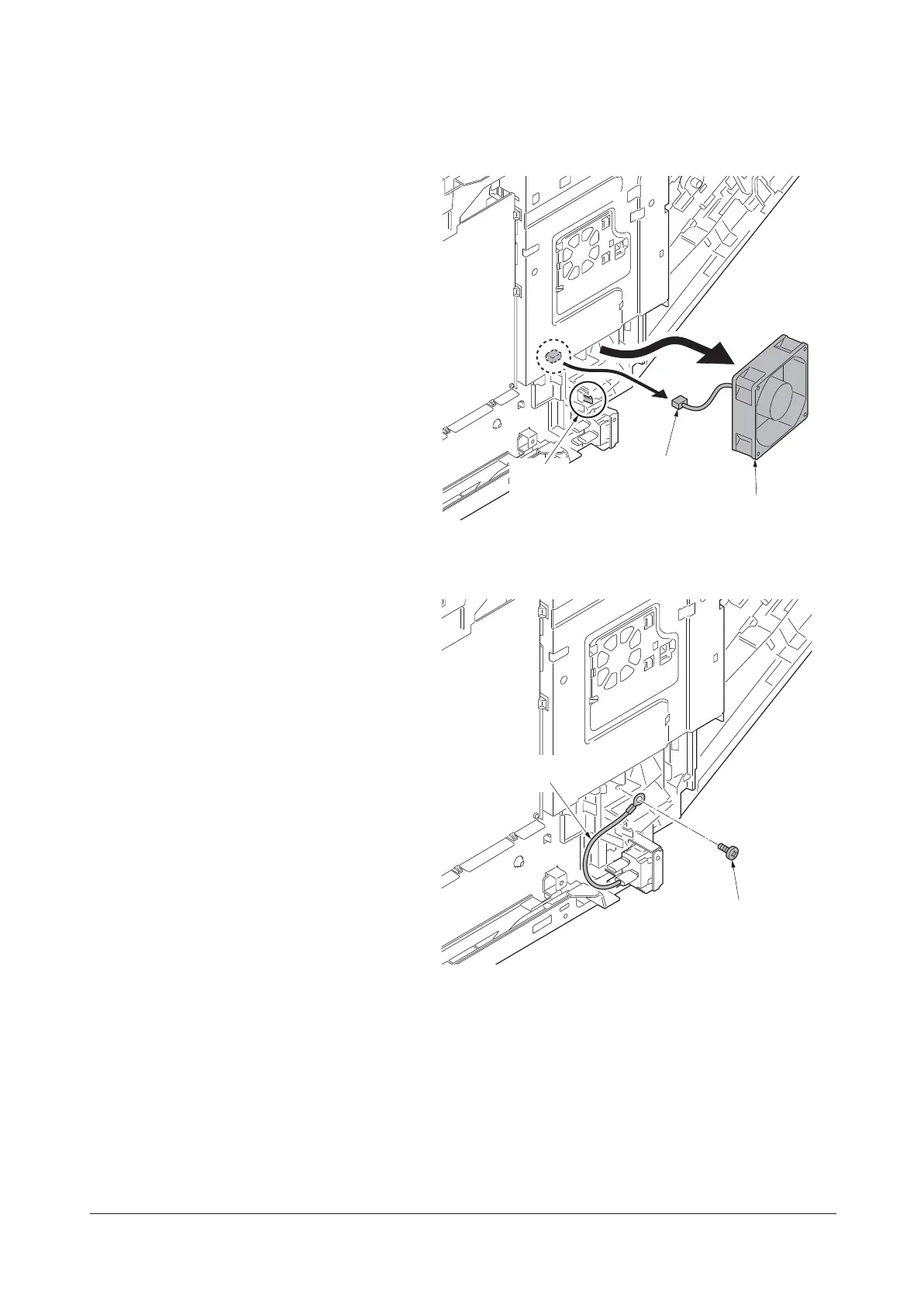

Figure 1-5-147
3. Remove the screw of the grounding
wire.
Figure 1-5-148
Right fan moto
r
Connector
Hook
Screw
Grounding wire
Service Manual
Y116650-5
