2PV/2PW-2

1-5-52

(3) Detaching and refitting the image scanner unit

Procedure

(Detach the covers)

1. Open the paper conveying unit.

2. Release the hook and then remove the

IF cover.

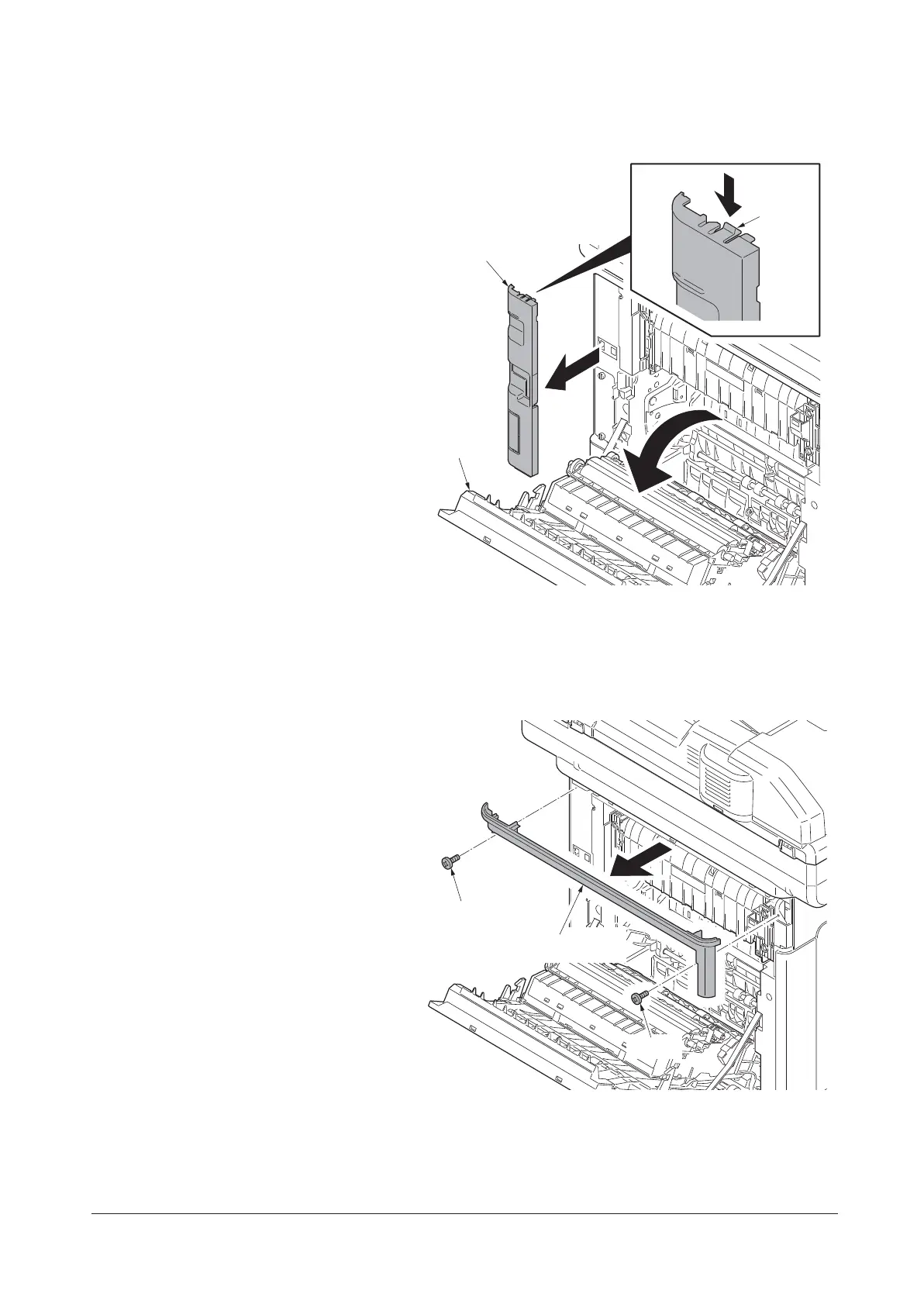

Figure 1-5-79

3. Remove two screws and then remove

the rear uppercover.

Figure 1-5-80

IF cover

Paper

conveying

unit

Hook

Rear upper cover

Screw

Service Manual

Y116650-5
