2PV/2PW
1-5-82
(2) Detaching and refitting the DP paper feed pulley unit
Procedure
1. Open the DP top cover.
2. Remove the screw.
3. Release three hooks and then re
move
the DP rear cover.

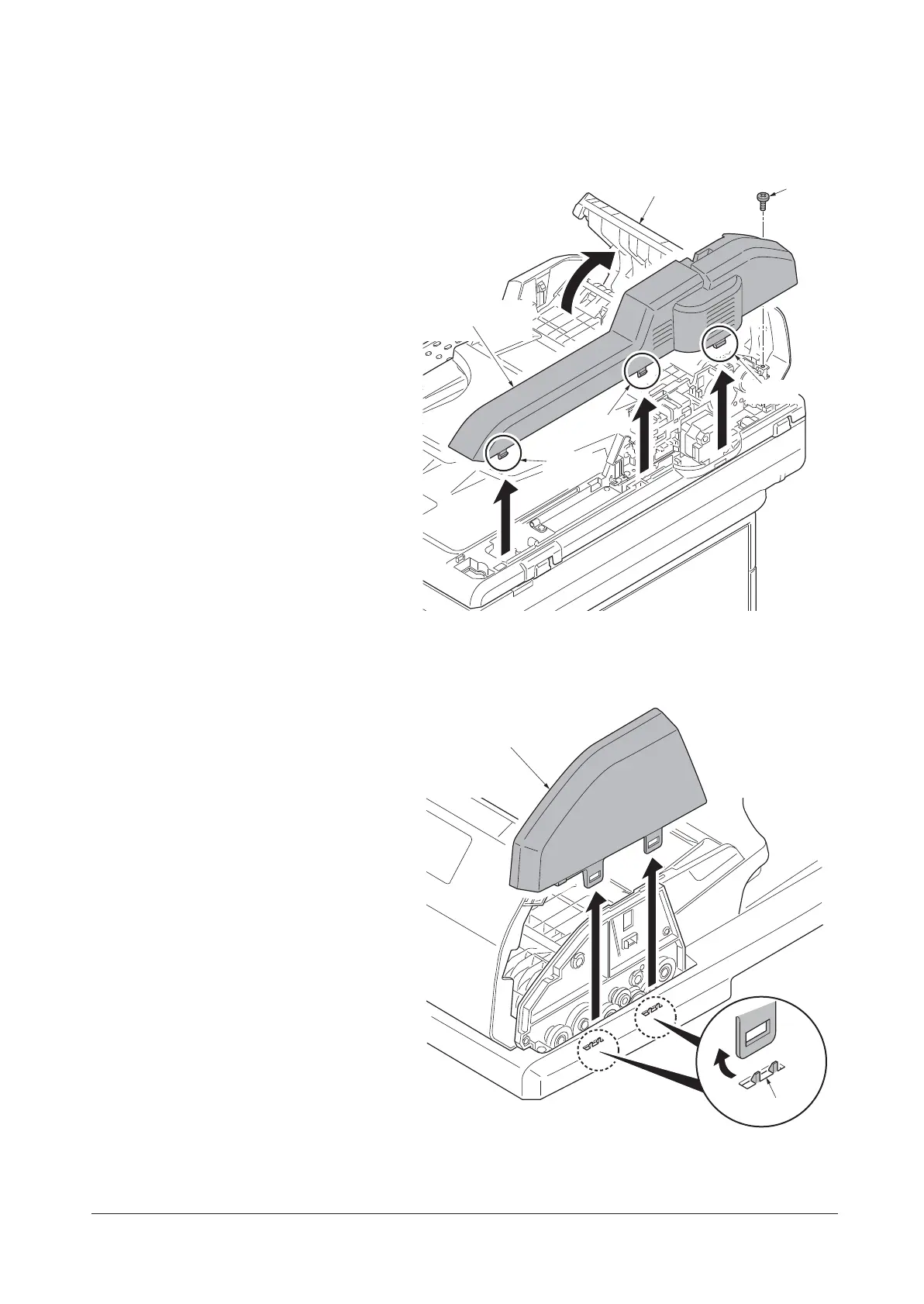

Figure 1-5-134
4. Release two hooks and then remove
the DP front cover.
Figure 1-5-135
Screw
DP top cover
Hook
Hook
Hook
DP rear cover
DP front cover
Hooks
Service Manual
Y116650-5
