2PV/2PW

1-5-87

(4) Detaching and refitting the DP drive PWB

Procedure

1. Remove the DP rear cover (see page 1-

5-82).

2. Remove all connectors from DP drive

PWB.

3. Remove the screw and then remove the

DP drive PWB.

4. Check or replace the DP drive PWB

and refit all the removed parts.

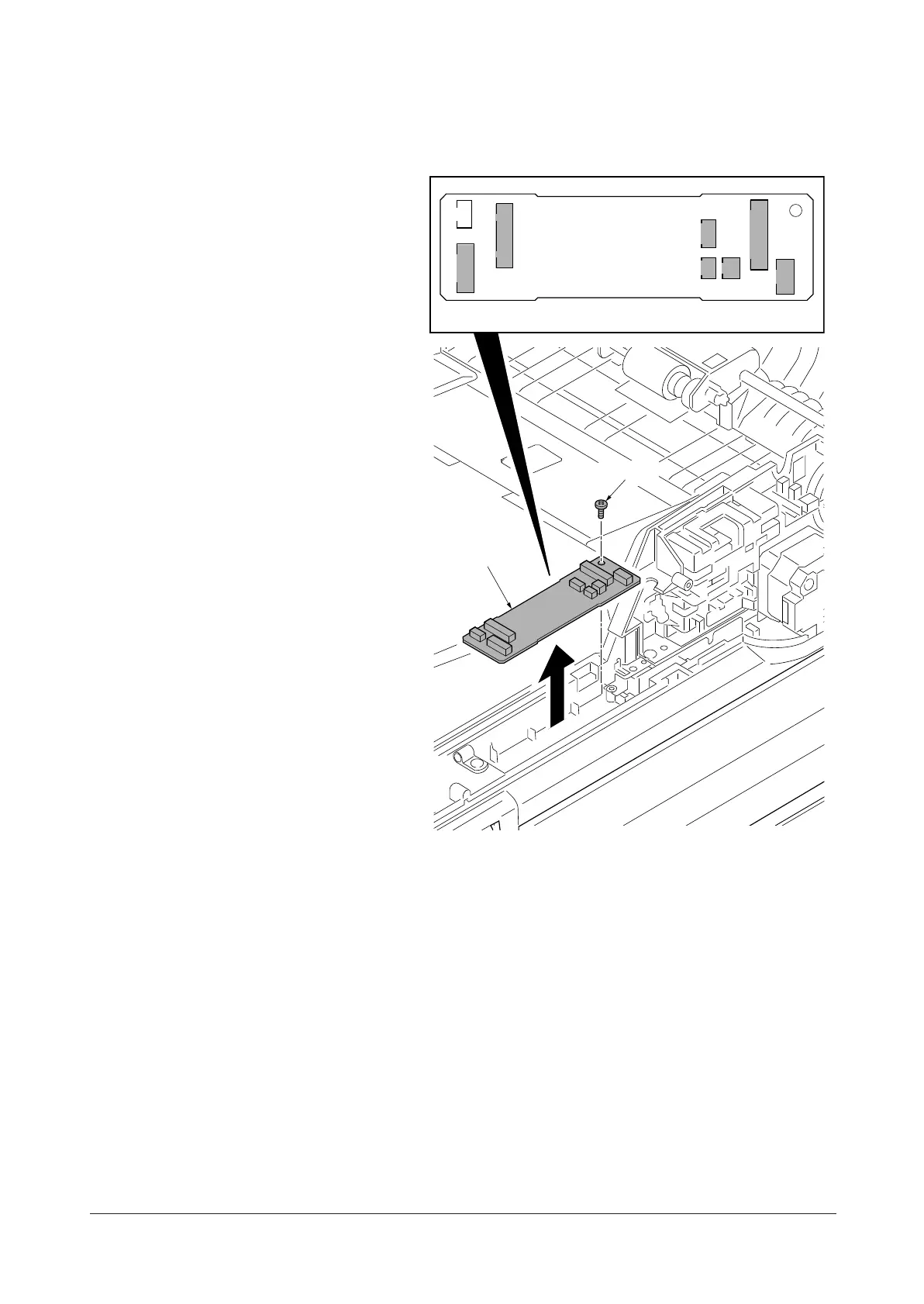

Figure 1-5-142

Screw

YC1

YC8

YC6 YC4

YC2

YC3

YC5

DP drive PWB

DP drive

PWB

Service Manual

Y116650-5
