2 BondMaster 600 — Getting Started Guide
Contents of the Case
The BondMaster 600 comes standard with several key accessories:
• Calibration certificate (P/N: B600-CERT
[U8010093])
• Charger/adaptor (Olympus
P/N:EP-MCA-X), where “X” denotes
the AC power cord type
• AC Power cord
• Transport case (P/N: 600-TC
[U8780294])
• Getting Started Guide (P/N: DMTA-
10044-01XX), where “XX” denotes the
language.
• BondMaster 600 User’s Manual and PC
interface program on CD-ROM
(Olympus P/N: B600-CD [U8141002])
• MicroSD Memory Card, 2 GB
(Olympus P/N: MICROSD-ADP-2GB [U8779307])
• USB communication cable (Olympus P/N: EPLTC-C-USB-A-6 [U8840031])
• 600 Series rechargeable Li-ion battery; 10.8 V, 6.2 Ah, 67 Wh (Olympus P/N: 600-BAT-L-3
[U8051431])
• 8-cell battery holder with connector plug (Olympus P/N: 600-BAT-AA [U8780295])
• Pitch-and-catch and MIA mode cable for BondMaster 600; 3.3 meter (11 foot) length, 11-pin
to 11-pin connectors (Olympus P/N: SBM-CPM-P11 [U8800058])
• Resonance mode cable for BondMaster 600; 1.8 meter (6 foot) length, 11-pin to 6-pin
connectors (Olympus P/N: SBM-CR-P6 [U8800059])
• Factory-installed wrist strap on left side of BondMaster 600 (Olympus P/N: 38DLP-HS
[U8779371])

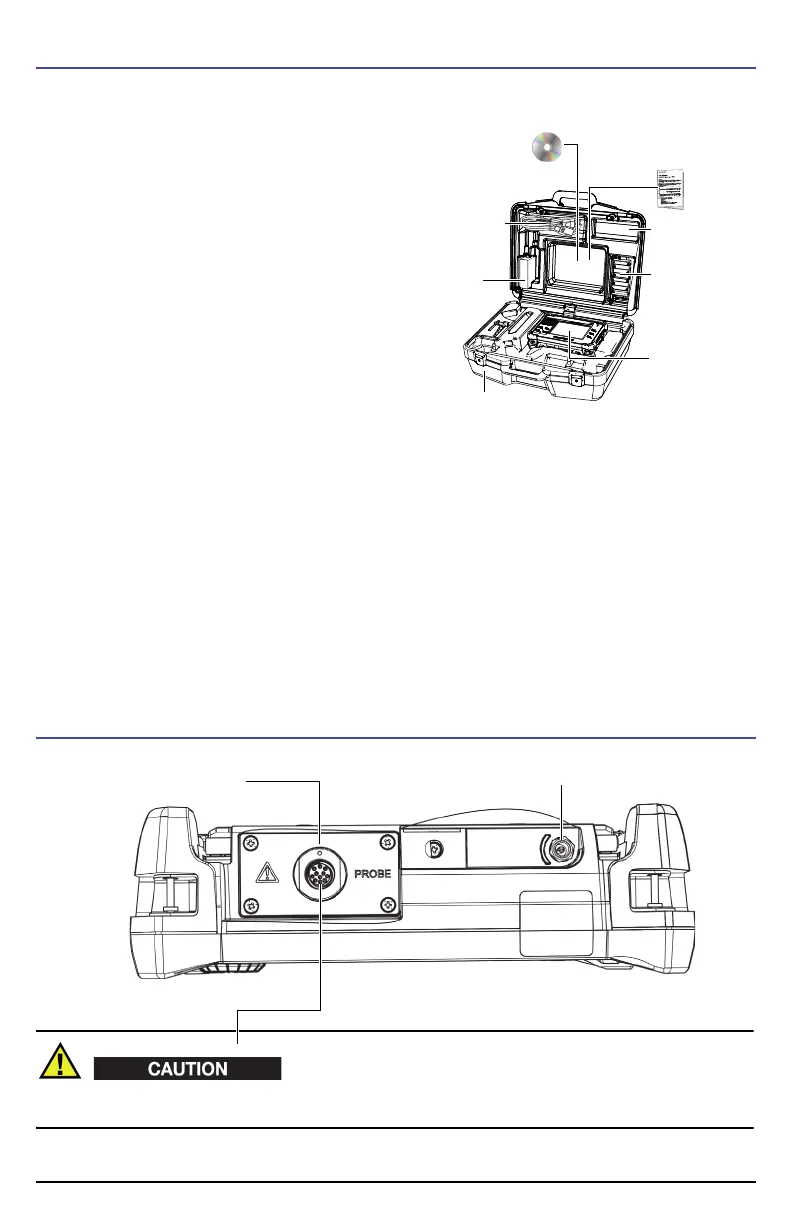

Connections
Charger/
adaptor
AC power cord
and probe cable
BondMaster 600
instrument
Transport case
Li-ion battery
Micro SD Memory
Card and USB to
PC cable
Getting Started leaflet and
calibration certificate
User’s manual
and PC interface
program on CD-ROM
DC power connectorPROBE Connector
(11-pin Fischer)
To avoid the risk of an electric shock, do not touch the inner conductors of the PROBE connector. Up
to 80 V can be present.
