Olympus CH20 - Collector Lens Part

CH10/CH20 C. DISASSEMBLY AND ASSEMBLY PROCEDURES
C-14

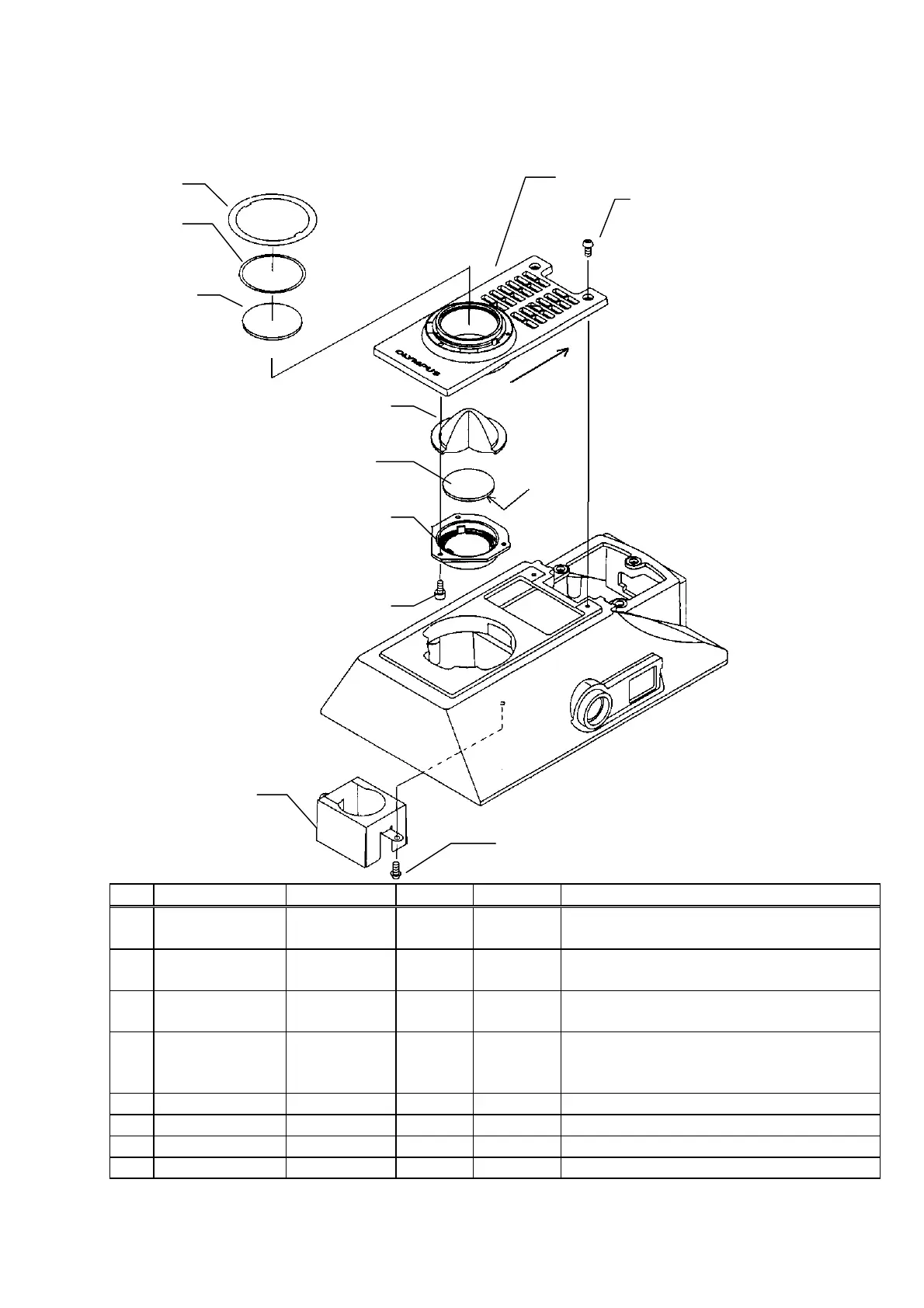

6. Collector Lens Part

No. Parts name Screw Grease Adhesive Remarks
•
LAMP COVER
CUK3X4SA
(*1) 2 pcs.
With directional properties.
‚
BASE COVER
CUK3X6SB
(*2) 2 pcs.
Move the base cover within screw play in the
direction of arrow.
ƒ
FILTER
FRAME
AB3X8SA
(*3) 3 pcs.
With directional properties.
„
GLASS
OT1873
Attach the glass to the filter frame
ƒ
at three
points where adhesive is applied. (With the
frosted surface downwards.)
…
LENS
Clean the lens using ether.
†
HOLE COVER
‡
WASHER
ˆ
GLASS
Without directional properties.
Frosted
surface
‚
*2
ƒ
*3
„
…
ˆ
‡
†
•
*1
