Olympus CH30 User Manual

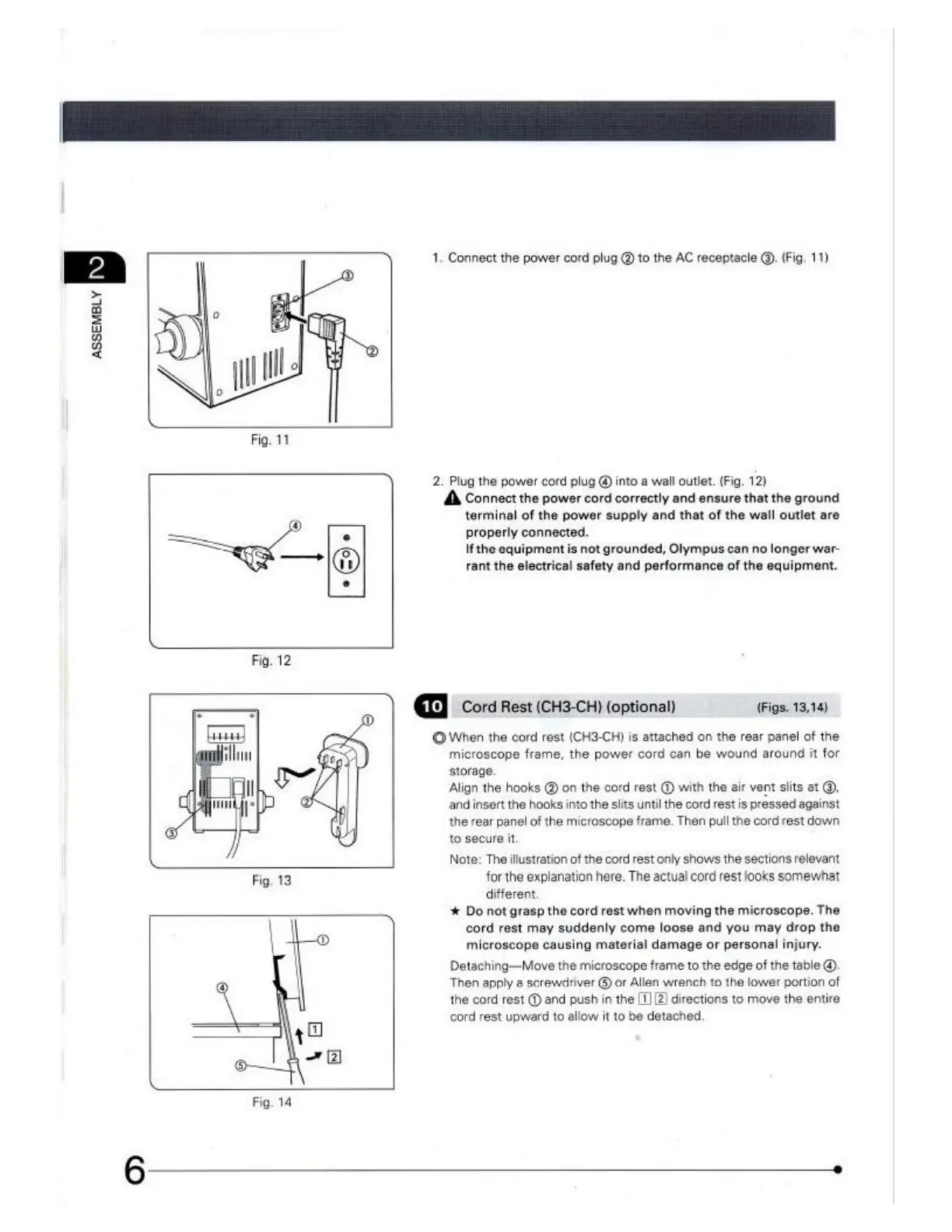

1. Connect the power cord plug @ to the AC receptacle ®. (Fig. 11)
¿
é
2. Plug the power cord plug @ into a wall outlet. (Fig. 12)
‘A Connect the power cord correctly and ensure that the ground
terminal of the power supply and that of the wall outlet are
properly connected.
the equipment is net grounded, Olympus can no longer war-
rant the electrical safety and performance of the equipment.
€ Cord Rest (CH3-cH) (optional) (Figs. 13,14)
(Q When the cord røst (CH3-CH) is attached on the rear panel of the
microscope frame, the power cord can be wound around it for
storage.
Align the hooks @ on the cord rest O with the air vent sits at ©,
‘and insert the hooks into the sits until the cord rest is pressed against
the rear panel ofthe microscope frame. Then pull the cord rest down
to secure it.
Note: The illustration of the cord rest only shows the sections relevant
for the explanation here. The actual cord rest looks somewhat
different.
+ Do not grasp the cord rest when moving the microscope. The
cord rest may suddenly come loose and you may drop the
microscope causing material damage or personal injury.
Detaching—Move the microscope frame to the edge of the table ©.
Then apply @ screwdriver @ or Allan wrench to the lower portion of
the cord rest ©) and push in the [1] directions to move the entire
cord rest upward to allow it to be detached.
Fig. 14

Olympus CH30 Specifications

General

Brand	Olympus
Model	CH30
Category	Microscope
Language	English
