CH30/CH40

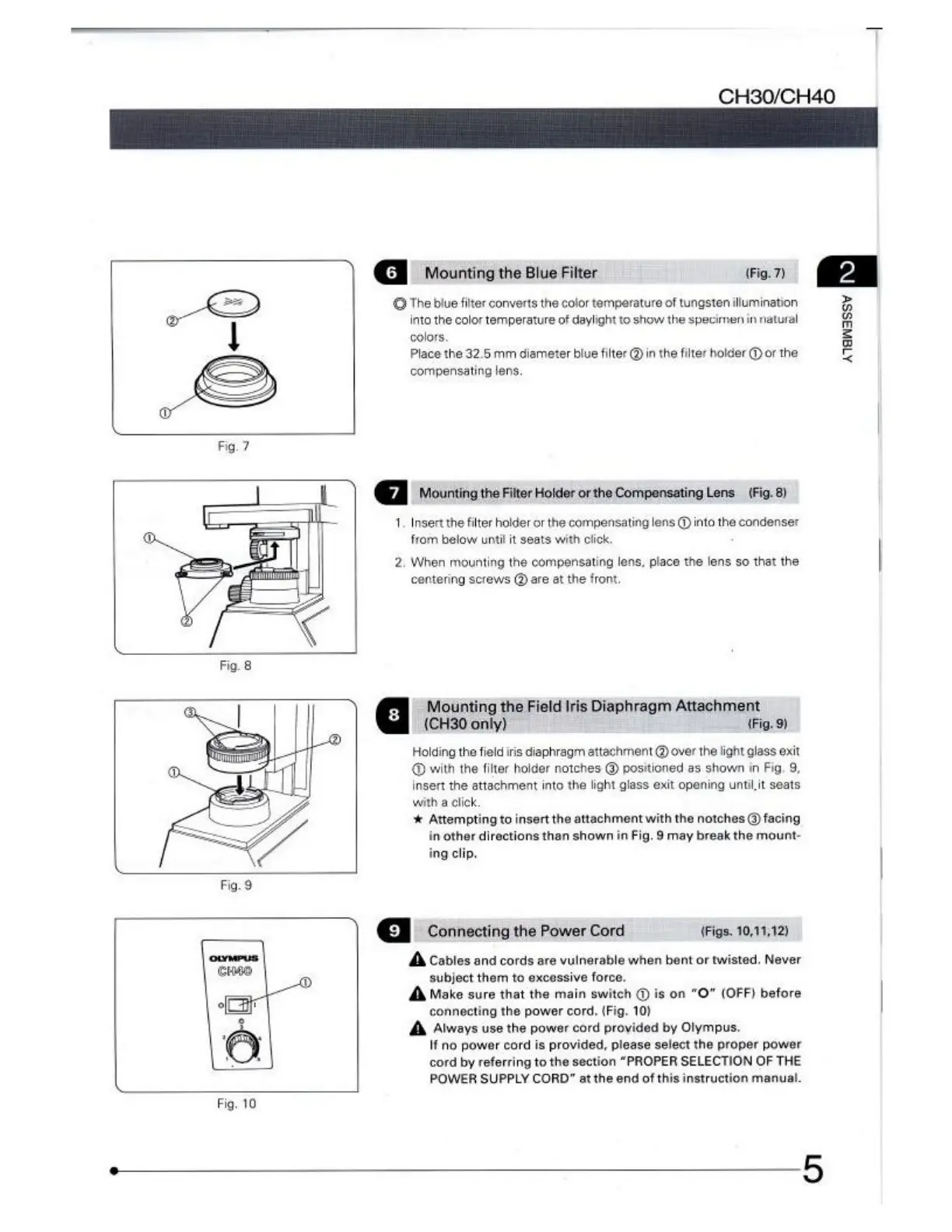

Я Mounting the Biue Fitter (ion
© The blue filter converts the color temperature of tungsten illumination
into the color temperature of daylight to show the specimen in natural
colors,
Place the 32.5 mm diameter blue filter @ in the fier holder @ or the
compensating lens,
ig ier Hr e Compri Lan ta)
1, Insert the filter holder or the compensating lens @ into the condenser
from below until it seats with cick.
2, When mounting the compensating lens, place the lens so that the
‘centering screws © are at the front,
Mounting the Field Iris Diaphragm Attachment
(CH30 only) (Fig. 9)
Holding the field iris diaphragm attachment @ over the light glass exit
(O with the filter holder notches @ positioned as shown in Fig. 9,
insert the attachment into the light glass exit opening untilit seats
wath a click
+ Attempting to insert the attachment with the notches @ facing
in other directions than shown in Fig. 9 may break the mount-
ing clip.
© Connecting the Power Cord (Figs. 101,12)
À Cables and cords are vulnerable when bent or twisted. Never
‘subject them to excessive force.
A Make sure that the main switch © is on "O" (OFF) before
‘connecting the power cord. (Fig. 10)
A Always use the power cord provided by Olympus.
If no power cord is provided, please select the proper power
‘cord by referring to the section “PROPER SELECTION OF THE
POWER SUPPLY CORD” at the end of this instruction manual.
es
B
