Olympus CH30 User Manual

№
Fig. 3

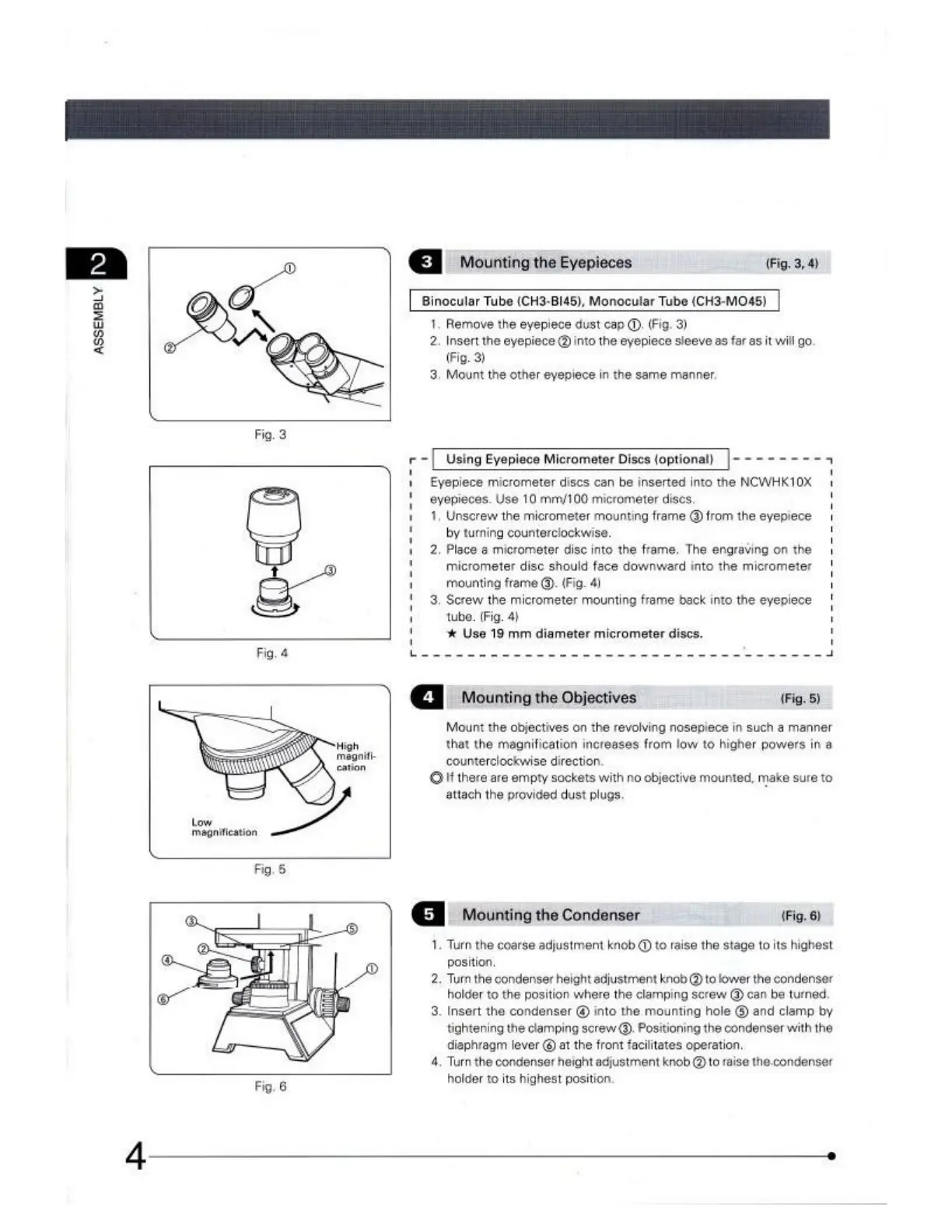

Mounting the Eyepieces (Fig. 3,4)
‘Binocular Tube (CH3-B145), Monocular Tube (CH3-MO45)
1, Remove the eyepiece dust cap © (Fig. 3)
2. Insert the eyepiece @ into the eyepiece sleeve as far as it wil go.
ig. 3)
'3, Mount the other eyepiece in the same manner.
Eyepiece micrometer discs can be inserted into the NCWHK10X
eyepieces. Use 10 mm/100 micrometer discs
1, Unscrew the micrometer mounting frame @ from the eyepiece
by turning counterclockwise.
2, Place a micrometer disc into the frame, The engraving on the
micrometer disc should face downward into the micrometer
‘mounting frame @. (Fig. 4)
3. Screw the micrometer mounting frame back into the eyepiece
tube. (Fig. 4)
+ Use 19 mm diameter micrometer discs.
r - [ Using Eyepiece Mierometer Dises (optional) |-
Я Mounting the Objectives (Fig. 8)
Mount the objectives on the revalving nosepiece in such a manner
that the magnification increases from low to higher powers in a
counterclockwise direction.
Oi there are empty sockets with no objective mounted, make sure to
attach the provided dust plugs.
I Mounting the Condenser (Fig. 6)
1. Tur the coarse acustment knob D to ris the stage tots highest
postion
2. Tum the condenser height adjustment knob @ to lower the condenser
holder to the position where the clamping screw @ can be turned
3. Insert the condenser @ into the mounting hole © and clamp by
tightening the clamping screw @. Positioning the condenser with the
diaphragm lever @ at the front facilitates operation
4, Turn the condenser height adjustment knob @ to raise the condenser
holder to its highest position.
