CH30/CH40

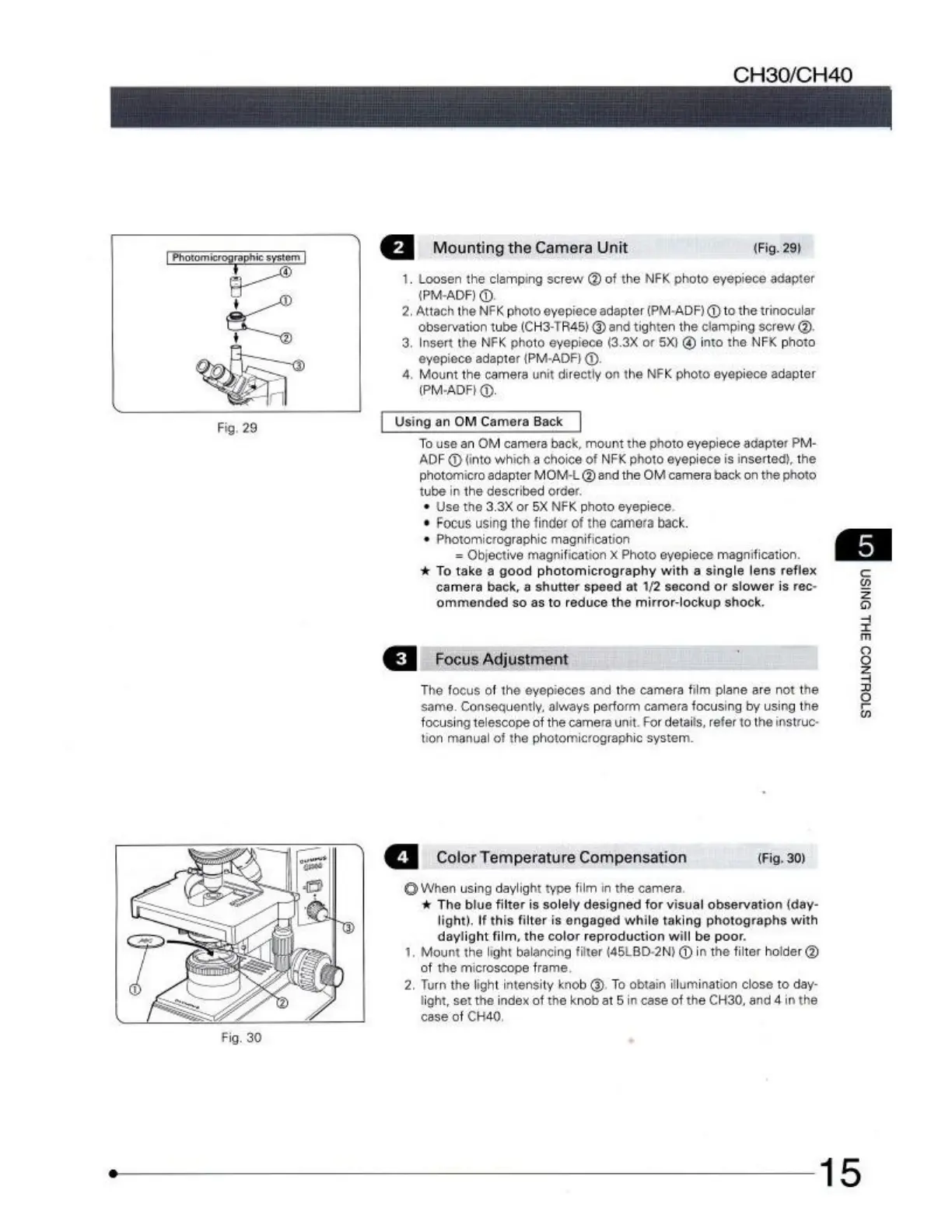

E vounting the Camera Unit (Fig, 29)
1. Loosen the clamping screw @ of the NFK photo eyepiece adapter
{PMAADF) ©.
2, Attach the NFK photo eyepiece adapter (PM-ADF) © to the trinocular
observation tube (CH3-TR45) @ and tighten the clamping serew ©.
3. Insert the NFK photo eyepiece (3.3X or 5X) @ into the NFK photo
‘eyepiece adapter (PM-ADFI ©.
4, Mount the camera unit directly on the NFK photo eyepiece adapter
(PMADF O.
To use an OM camera back, mount the photo eyeplece adapter PM-
ADF © {into which a choice of NFK photo eyepiece is inserted), the
photomicro adapter MOM-L @ and the OM camera back on the photo
tube in the described order.
+ Use the 3.3X or BX NFK photo eyepiece.
+ Focus using the finder of the camera back.
+ Photomicrographic magnification
bjective magnification X Photo eyepiece magnification,
# To take a good photomicrography with a single lens reflex
‘camera back, a shutter speed at 1/2 second or slower is rec-
‘ommended so as to reduce the mirror-lockup shock.
€ Focus Adjustment
The focus of the eyepieces and the camera film plane are not the
‘same. Consequently, always perform camera focusing by using the
focusing telescope of the camera unit. For details, referto the instruc-
tion manual of the photomicrographic system.
(A Color Temperature Compensation (Fig. 30)
© When using daylight type film in the camera,
+ The blue filter is solely designed for visual observation (day-
light) If this filter is engaged while taking photographs with
daylight film, the color reproduction will be poor.
1. Mount the light balancing fiter (45LBD-2N) @ in the filter holder @
of the microscope frame,
2. Turn the light intensity knob G). To obtain illumination close to day-
light, set the index of the knob at 5 in case of the CH30, and 4 in the
case of CHAO,
