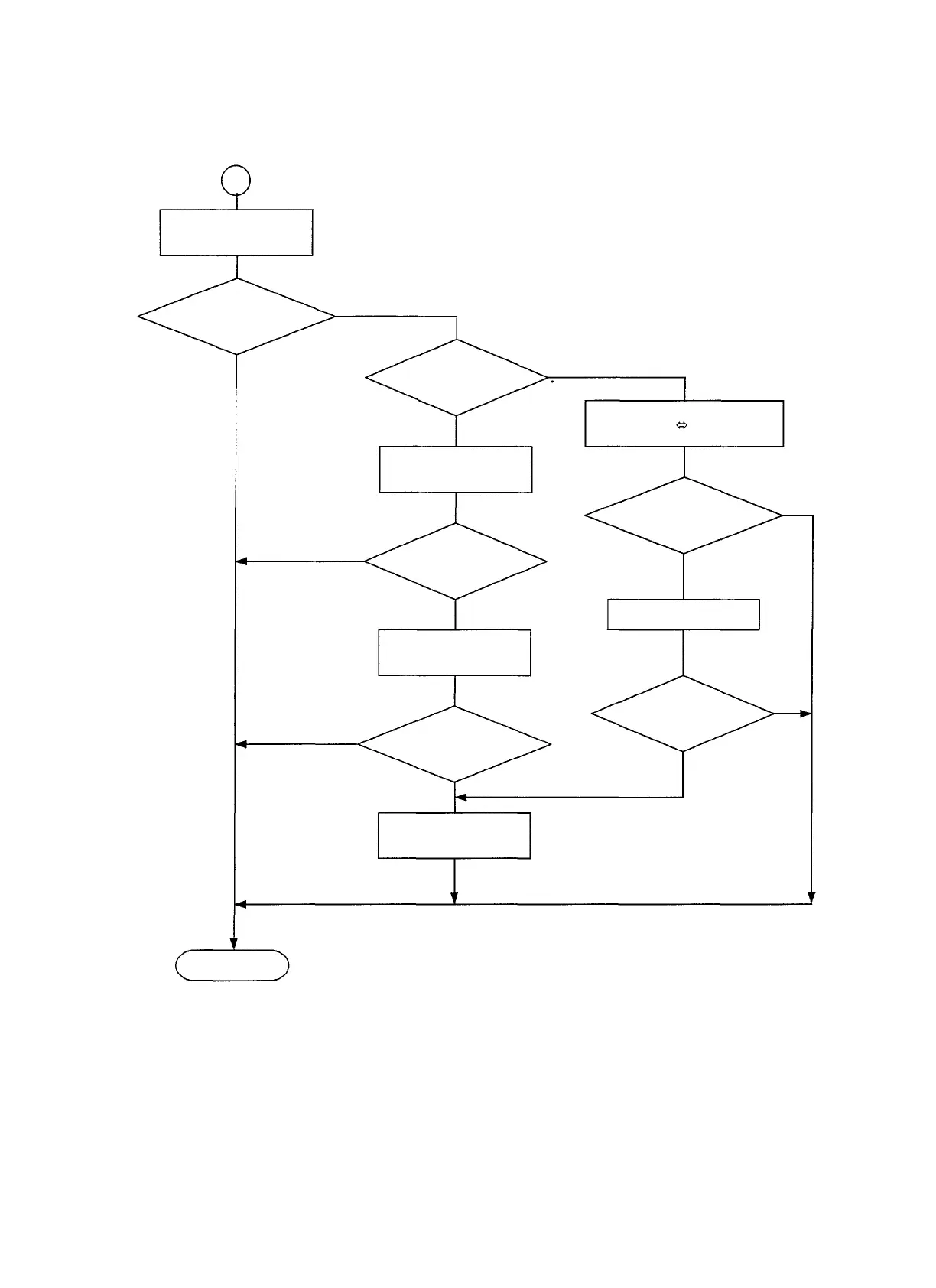

TROUBLESHOOTING CLV-160
A
Turn xenon lamp on.
Does the turret
plate rotate when
the filter switch is
operated?
Yes
No
Is the switch on
the front panel
accepted?
Yes
Check that the turret
plate is not extremely
loose.
No
Indicated by sound and
LED.
Check the harness connection.
UPCL16CR00 Front panel U
Does the turret
Yes
plate rotate when
the filter switch is
operated?
No
Yes
Does the turret
plate rotate when
the filter switch is
operated?
No
Replace the front panel.
Replace the turret U.
Yes
Does the turret
plate rotate when
the filter switch is
operated?
No
Replace the UPCL16CR00.
(Replace the main board.)
Does the turret
plate rotate when
the filter switch is
operated?
Yes
No
End
4-15
